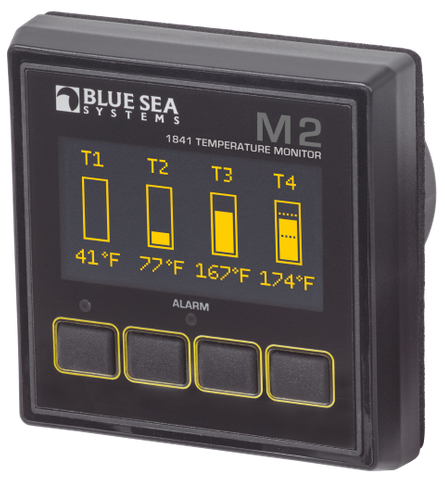

Blue Sea M2 OLED Digital Temperature Monitor
Blue Sea M2 OLED Digital Temperature Monitor
4-Zone (-40°C to 120°C), 80dB Alarm, 500mA Relay & Waterproof Sensors
Regular price
$800.00
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Precision Thermal Oversight for Marine and Off-Grid Systems
Maintaining strict thermal control is vital for the longevity and safety of complex electrical and mechanical systems. The Blue Sea M2 OLED Digital Temperature Monitor provides accurate, real-time tracking across up to four independent zones simultaneously. Engineered for demanding marine, RV, and off-grid environments, this digital gauge allows operators to monitor critical areas such as engine rooms, exhaust systems, battery banks, and refrigeration units from a single, centralised interface.
Unlike standard aftermarket gauges that can be difficult to read in direct sunlight or overly bright during night navigation, the M2 series utilises an advanced auto-dimming Organic LED (OLED) screen. This high-contrast display automatically adapts to ambient lighting conditions, ensuring clear visibility at any hour without causing night blindness at the helm. Navigation through configuration menus and sensor data is straightforward via four tactile front-panel buttons.
Key Features and System Capabilities
- Multi-Zone Tracking: Monitors up to four waterproof external temperature sensors across an expansive operating range of -40°C to 120°C (-40°F to 250°F).
- Proactive Audio and Visual Alerts: Features an integrated 80dB audible alarm paired with a visual status LED, both fully customisable to trigger at user-defined temperature thresholds.
- Automated Circuit Control: Equipped with an isolated 500mA MOSFET External Circuit Relay (ECR) to automatically trigger cooling fans, bilge blowers, or external high-output sirens when specific thermal limits are reached.
- Marine-Grade Compliance: Fully ABYC compliant for marine engine exhaust applications, complete with a rear panel-mount sealing gasket for weather-resistant installation.
- Flexible Display Units: Easily switch between Celsius and Fahrenheit readings to suit operator preference.
Risk Reduction and Automated Thermal Management
Thermal runaway in battery compartments or overheating in marine engine bays can lead to severe equipment failure. By deploying the included waterproof sensors across high-risk zones, the M2 Temperature Monitor acts as an early warning system. If an alternator runs hot or an exhaust cooling system falters, the 80dB alarm provides immediate notification before catastrophic damage occurs.
Furthermore, the integrated MOSFET relay elevates the unit from a passive display to an active system controller. Rather than relying solely on human intervention when an alarm sounds, the monitor can be configured to automatically close a circuit to engage ventilation fans or shut down heat-generating equipment, actively mitigating thermal risks.
Installation and Application Versatility
Designed for seamless integration into standard panel cutouts, this compact digital monitor is suitable for a wide array of applications:
- Marine Vessels: Track engine exhaust temperatures, bilge areas, and alternator casings in accordance with ABYC standards.
- 12V and 24V Off-Grid Setups: Monitor ambient temperatures inside lithium battery enclosures, inverter cabinets, and solar charge controller bays.
- Caravans and Motorhomes: Keep a reliable check on fridge and freezer compartments or auxiliary engine bays during long-distance touring in harsh Australian climates.
Note: While the broader Blue Sea M2 family includes models for electrical current and voltage measurement that require an external DC shunt or AC current transformer, this specific unit is dedicated to thermal monitoring and comes supplied with the required waterproof temperature sensors.
Upgrade Your System Monitoring
Protect your critical marine and off-grid investments from heat-related damage. Integrate the Blue Sea M2 OLED Digital Temperature Monitor into your control panel for reliable, automated thermal oversight.
SKU: BS-1841B
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product type | Digital monitor |
| Display | Auto-dimming Organic LED (OLED) |
| Alarm | 80dB alarm on all models; adjustable alarms |
| Temperature monitoring | External temperature monitoring; monitors up to 4 temperature sensors |
| Temperature measurement range | -40°C to 120°C (-40°F to 250°F) |
| Temperature units | Fahrenheit or Celsius |
| Relay | Isolated 500mA MOSFET External Circuit Relay (ECR), for controlling external circuits based on values measured by the M2 |
| External measurement accessories | Includes an external DC shunt or AC current transformer when required |
| Compliance | ABYC compliant for engine exhaust |
| Included sensors | Waterproof temperature sensors included |
| SKU: | BS-1841B |
| Model #: | M2 |
| MPN: | M2 |
| Package weight: | 0.54 kg |
| Package length: | 0.24 m |
| Package width: | 0.18 m |
| Package height: | 0.12 m |
