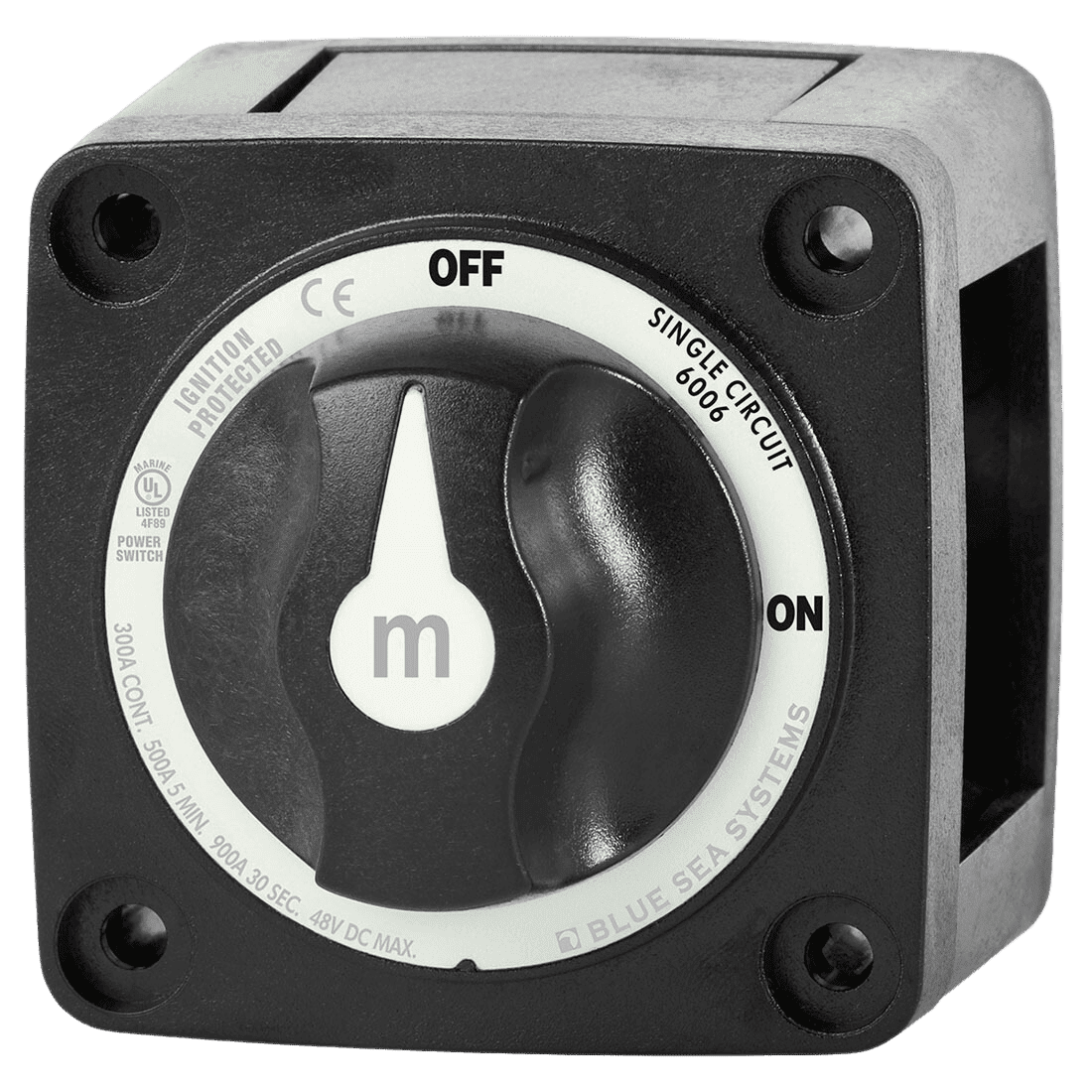

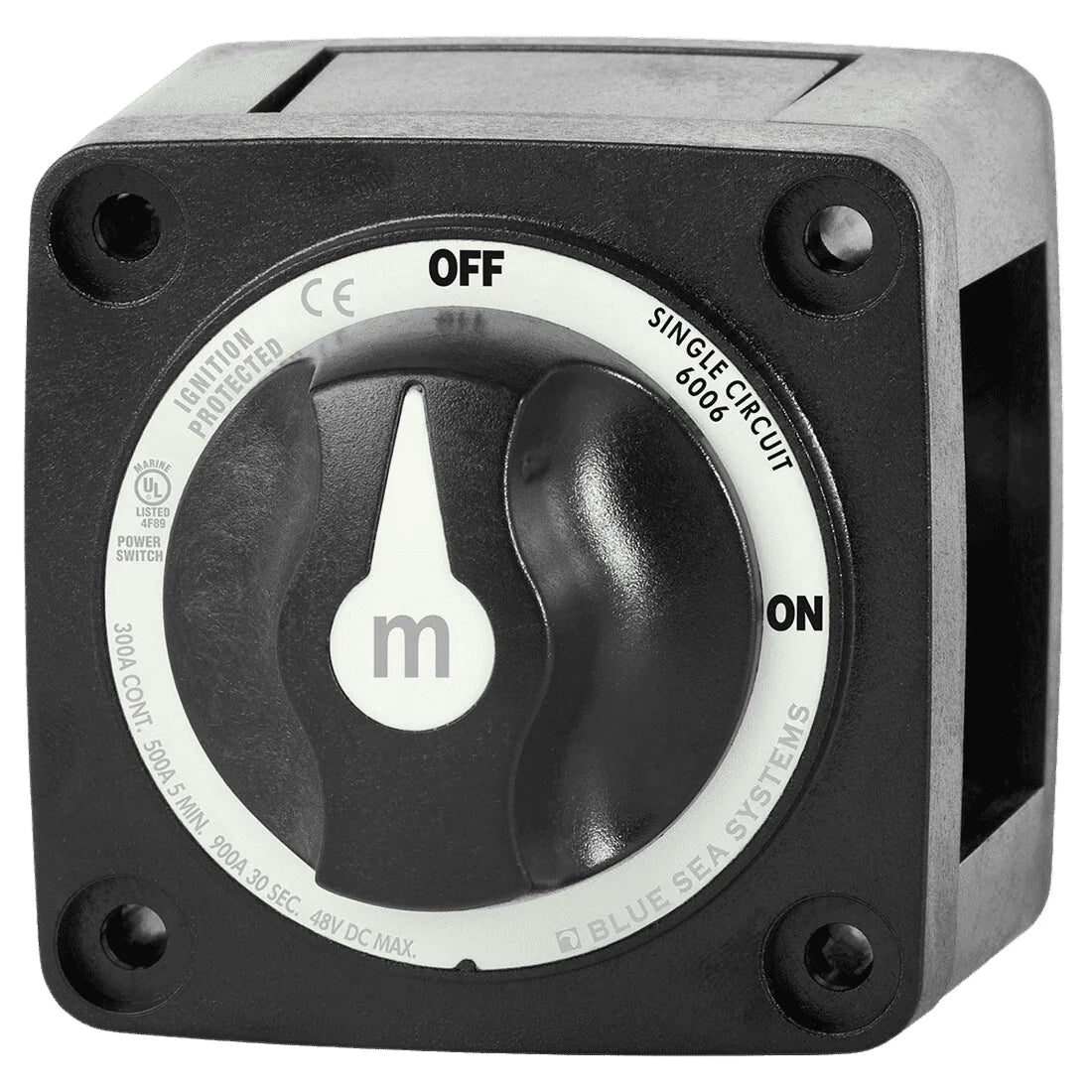

Blue Sea 300A Black Mini m-Series On/Off Battery Switch
Blue Sea 300A Black Mini m-Series On/Off Battery Switch
300A Continuous - Ignition Protected - 3/8" (Approx. M10) Studs
Key features: Ignition protected for marine engine rooms, Single Circuit ON-OFF operation, 300A continuous rating, Supports up to 48V DC systems.

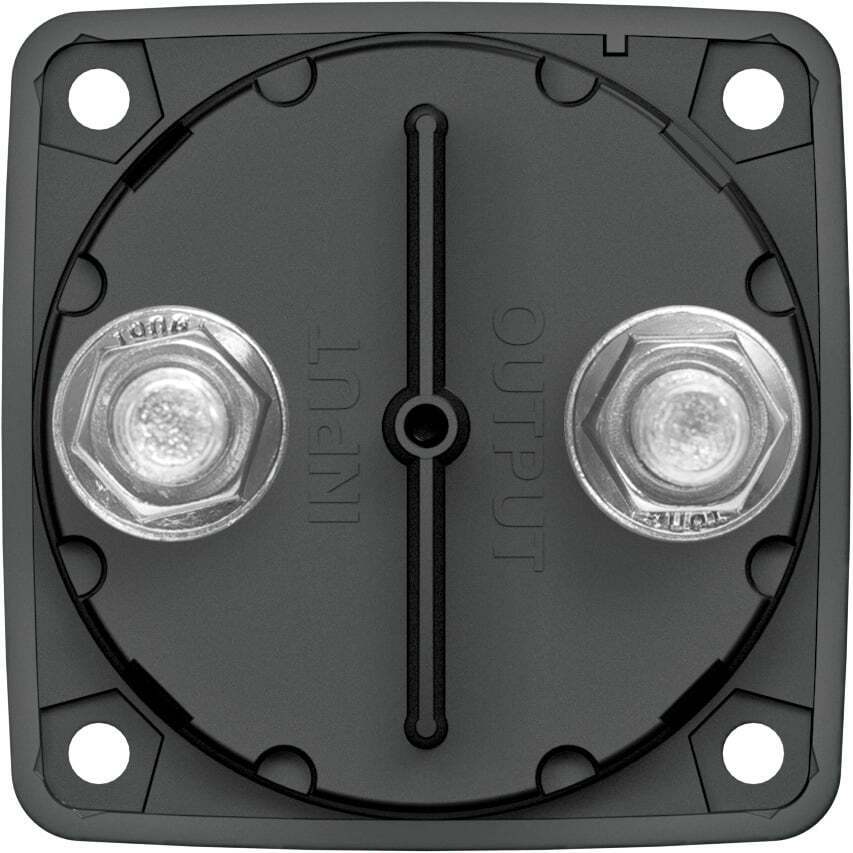

Highlights:Input Terminal: 3/8 inch (M10) tinned copper stud,Output Terminal: 3/8 inch (M10) tinned copper stud,Isolation Partition: Protects against accidental shorting,Mounting Hole: Accepts #10 (M5) screw.
Versatile mounting configurations allow for surface, rear, or front panel installation to suit different marine dashboard and enclosure depths
Key features: 300A continuous current rating, Max voltage 48V DC, Accepts up to 120mm² (4/0 AWG) cables, Compact footprint for tight installations.
Regular price
$57.00
Availability:
In Stock
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
5
DESCRIPTION
Compact High-Amperage Battery Isolation for Marine and Vehicle Systems
The Blue Sea Systems m-Series Battery Switch provides a robust switching solution in a compact footprint, specifically engineered for space-constrained installations in boats, caravans, and 4WDs. While small in size, this switch delivers a substantial 300A continuous rating, making it capable of handling the heavy electrical loads found in modern onboard systems.
Designed for versatility, it serves as a reliable main disconnect for 12V, 24V, and 48V DC systems. Its compact form factor allows it to be installed close to battery banks or on crowded distribution panels where traditional heavy-duty switches simply will not fit. By isolating the battery, you prevent parasitic drain during storage and ensure a safe, mechanical disconnection during maintenance.
Ignition Protected and Marine Ready
Safety is paramount in marine environments, particularly aboard vessels with gasoline engines. This switch features ignition protection, making it safe for installation in engine rooms or fuel lockers where fumes may be present. The design prevents internal sparking from igniting surrounding gases, compliant with stringent marine safety standards.
Constructed with tinned copper studs, the unit offers maximum conductivity and corrosion resistance—critical for withstanding the harsh saline atmosphere of Australian coastal waters. The 3/8"-16 (Approx. M10) stud terminals are sized to accept heavy-duty ring terminals, accommodating cables up to 4/0 AWG (Approx. 120mm²) to meet current ratings without overheating.
Flexible Mounting and Installation

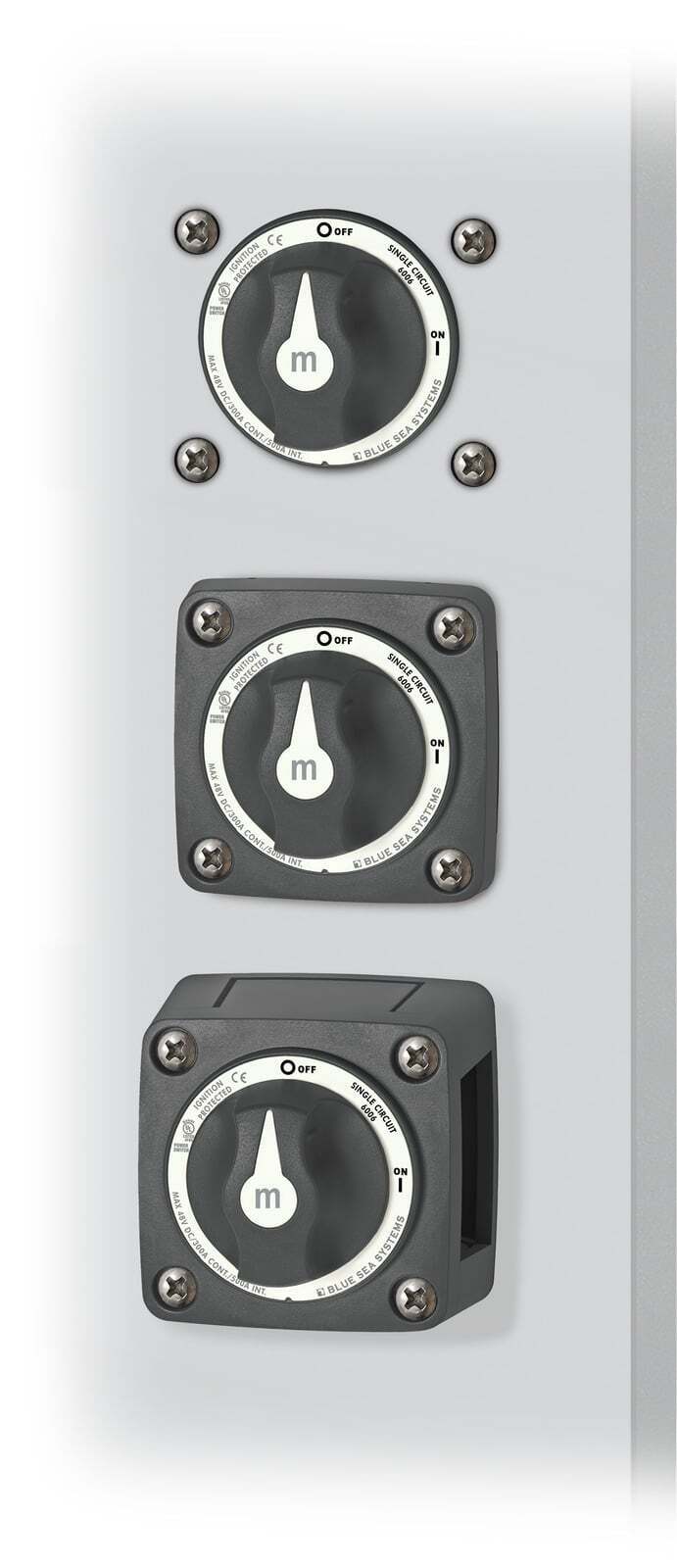

One of the standout features of the m-Series is its versatile case design, which supports three mounting options: surface, rear panel, or front panel mounting. This flexibility simplifies integration into custom control panels or existing battery boxes without requiring extensive modifications.
The included isolating cover with snap-on sections protects the rear contacts, preventing accidental short circuits from loose tools or debris. This attention to detail ensures your electrical system remains safe and compliant with installation regulations.
Key Features
- Continuous Rating: 300A — Handles high-demand loads efficiently
- Maximum Voltage: 48V DC — Suitable for 12V, 24V, and 48V banks
- Cranking Rating: 900A (30 sec) — Reliable engine starting power
- Compact Design: "Mini" footprint fits where larger switches cannot
- Stud Size: 3/8"-16 (Approx. M10) tinned copper for corrosion resistance
- Ignition Protected: Safe for use in petrol engine compartments
- Switch Type: Single Circuit ON-OFF configuration
Reliable Power Management
Upgrading to a high-quality battery switch reduces the risk of electrical failure and provides peace of mind when storing your vehicle or vessel. Unlike generic switches that may suffer from voltage drop or contact heating under load, the Blue Sea Systems m-Series maintains a low-resistance connection for optimal system performance.
Whether you are fitting out a new LiFePO4 battery system, upgrading a camper trailer, or replacing an old corroded switch on a boat, this unit offers professional-grade reliability in a package that fits almost anywhere.
Secure your electrical system with the Blue Sea m-Series switch today for reliable isolation and safety.

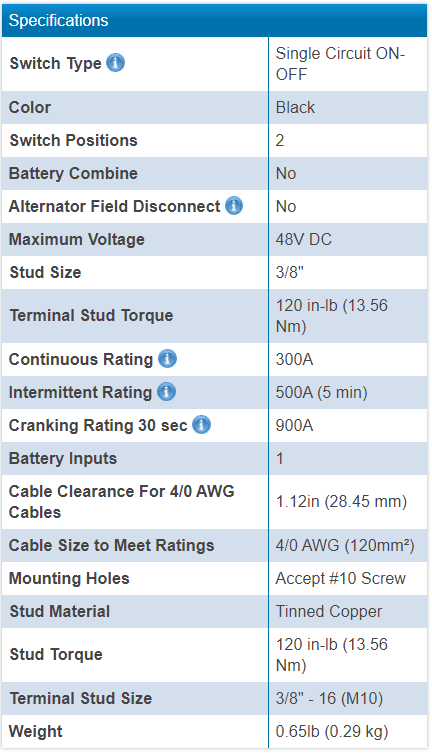

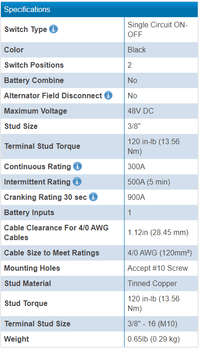

SPECIFICATIONS
Specifications
| Switch Type | Single Circuit ON-OFF |
|---|---|
| Color | Black |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size |
3/8" (approx. 9.53 mm; reference only) |
| Terminal Stud Torque |
120 in-lb (13.56 N·m) (approx. 10.0 ft-lb; reference only) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Starting Rating (30 sec) | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables |
1.12in (28.45 mm) (reference only) |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |
| Mounting Holes |
Accept #10 Screw (approx. #10 major diameter 4.83 mm; reference only) |
| Stud Material | Tinned Copper |
| Stud Torque |
120 in-lb (13.56 N·m) (approx. 10.0 ft-lb; reference only) |
| Switching Rating | 25A |
| Terminal Stud Size |
3/8" - 16 (M10) (3/8" ≈ 9.53 mm major diameter; M10 is 10 mm; 16 TPI ≈ 1.59 mm pitch; reference only) |
| Weight (min / max) |
0.65–0.65 lb (0.29–0.29 kg) (approx. 290 g; reference only) |
| SKU: | BS-6006200B |
| Barcode: | 632085600624 |
| Model #: | BS-6006200B |
| MPN: | BS-6006200B |
