Blue Sea 500A HD-Series Heavy Duty 4 Position (OFF/1/2/1+2) Battery Selector Switch
Blue Sea 500A HD-Series Heavy Duty 4 Position (OFF/1/2/1+2) Battery Selector Switch
4 Position Selector - 1600A Cranking - Ignition Protected - 32V DC

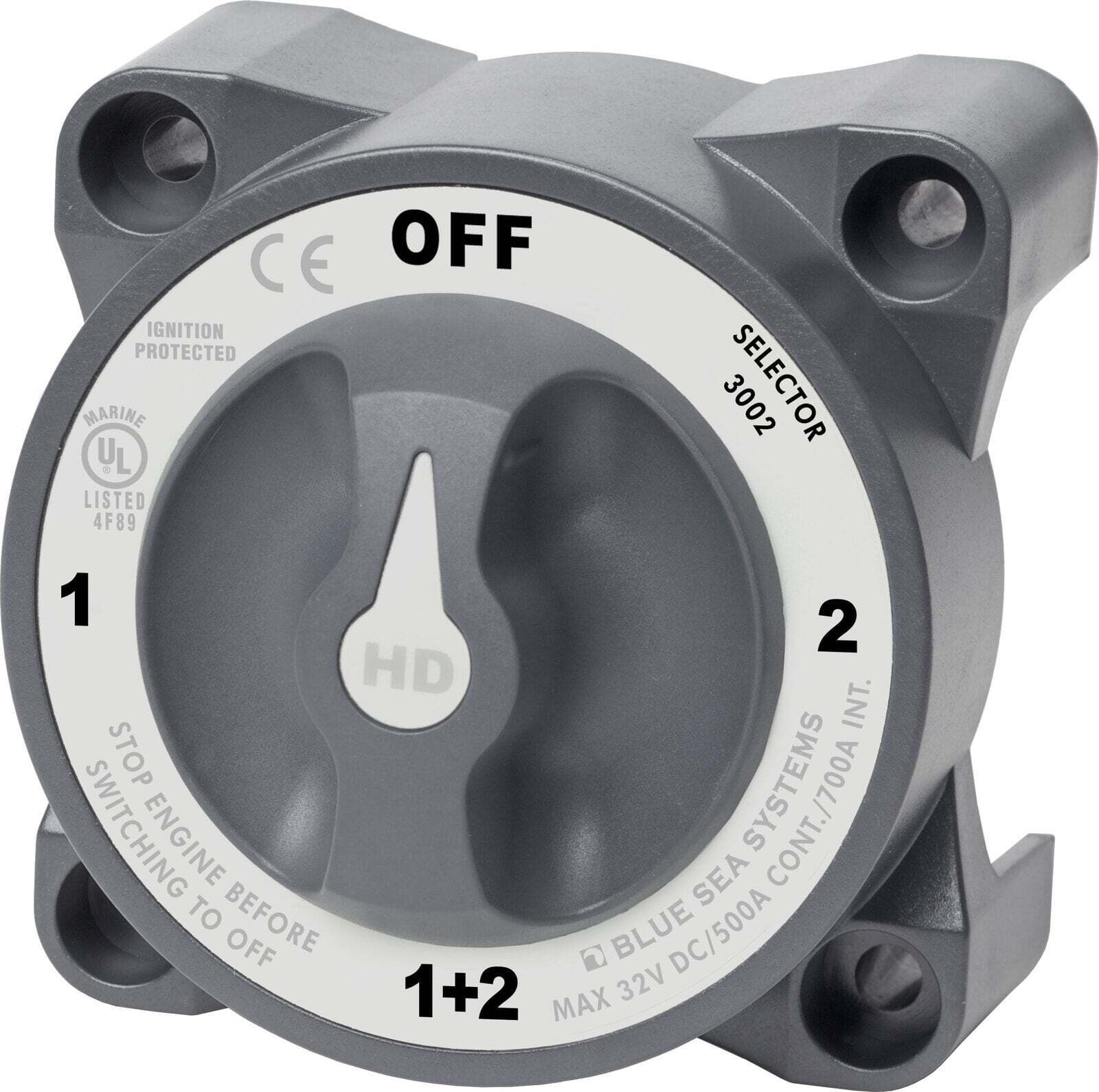

Key features: 4-Position Selector (OFF/1/2/1+2), Ignition protected & Marine UL listed, 500A continuous / 700A intermittent rating.

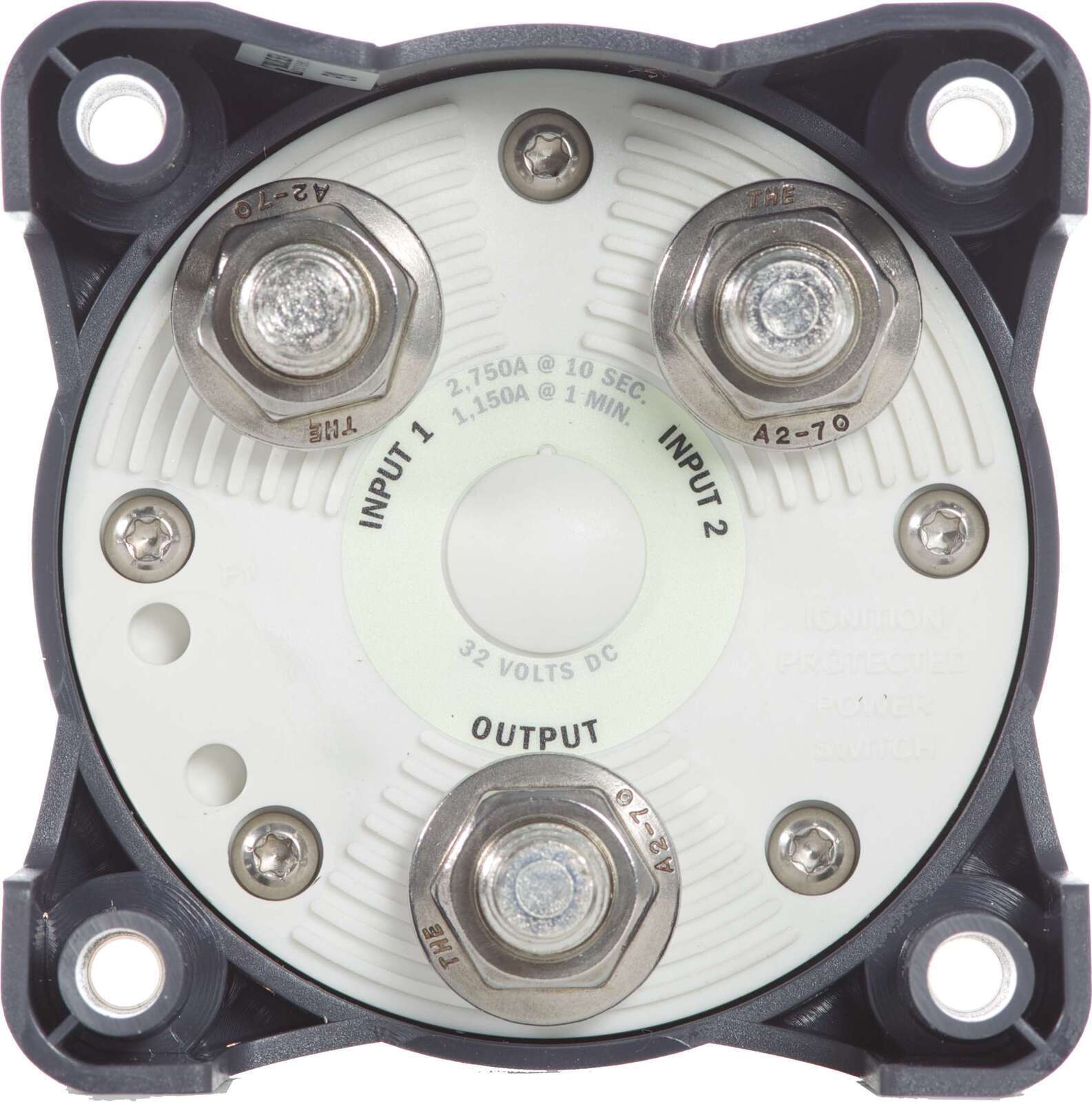

Highlights:Input 1 Terminal: Connection stud for battery bank 1,Input 2 Terminal: Connection stud for battery bank 2,Output Terminal: Common output connection for engine or load,Mounting Hole: Corner hole accepting M6 (1/4 inch) fasteners.

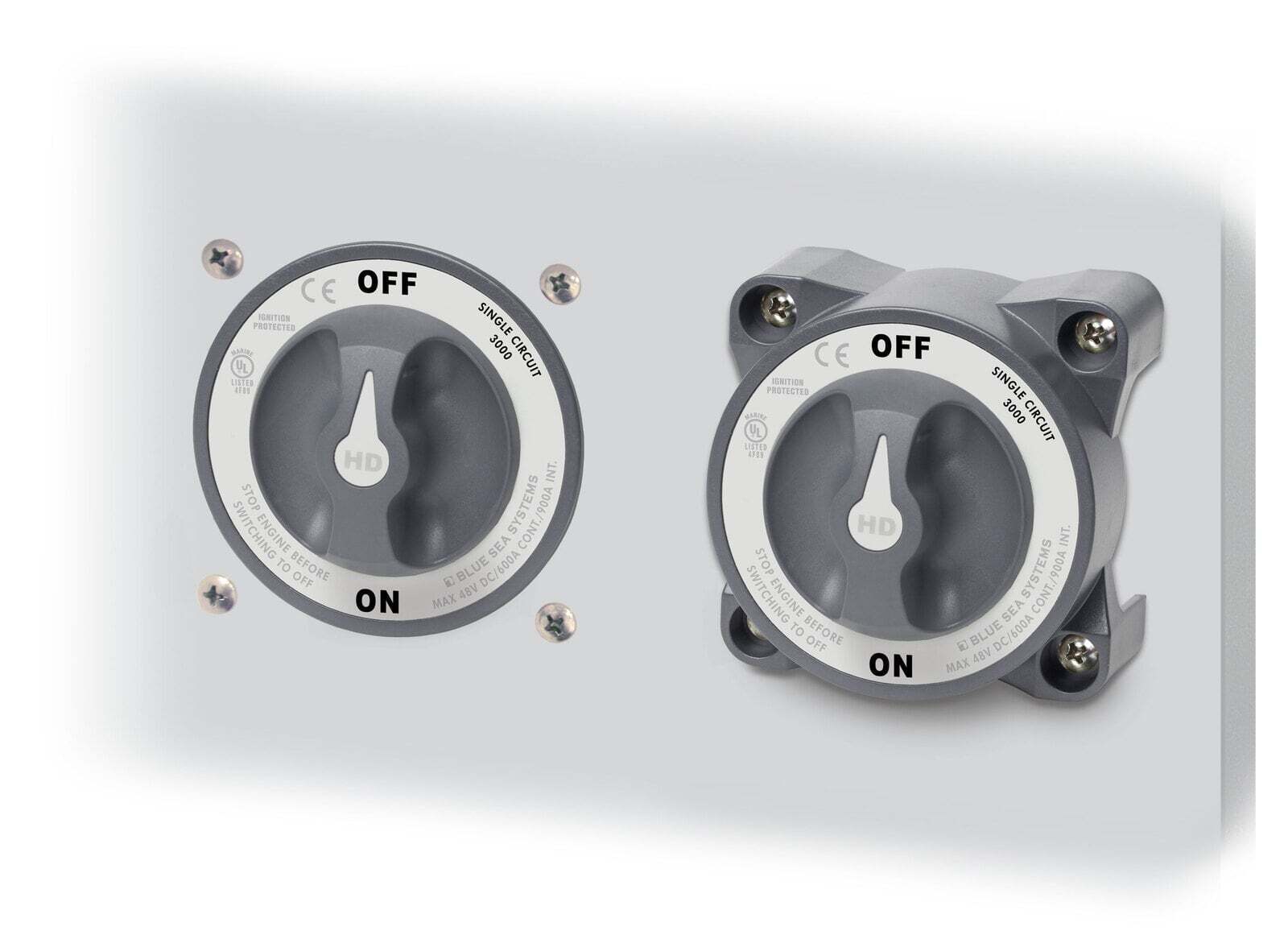

Versatile installation options showing flush rear-panel mounting (left) and standard surface mounting (right) configurations.
Regular price
$140.00
Availability:
In Stock
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
2
DESCRIPTION
High-Capacity Dual Battery Management for Marine and Vehicle Systems
The Blue Sea HD-Series Battery Selector Switch is engineered to manage high-amperage power distribution in marine, RV, and heavy-duty vehicle applications. As part of the 500A HD-Series, this switch provides a robust solution for switching between two isolated battery banks or combining them for emergency starting power. Its rugged construction ensures reliability in demanding environments, making it an industry-standard choice for upgrading 12V and 24V electrical systems.
Versatile 4-Position Switching
Designed for flexibility, the 4-position dial allows you to select between Battery 1, Battery 2, or Both (1+2), as well as a complete OFF position. This functionality is essential for dual-battery setups, allowing you to reserve one bank for engine starting while powering accessories from the second bank. In the event of a flat starting battery, the "Combine" function allows you to parallel both banks for a powerful emergency jump-start.
Crucially, the switch features a make-before-break contact design. This ensures that power flow remains uninterrupted when switching between battery banks, preventing nuisance resets of sensitive electronics like GPS units, radios, and engine control modules.
Heavy-Duty Performance for High-Load Engines
Built to handle the demands of large diesel engines and high-draw electrical loads, this switch offers impressive power handling capabilities. While designated as part of the 500A series, it is rated for a solid 400A continuous current and an exceptional 1600A cranking rating (30 seconds). This high cranking capacity makes it suitable for starting large marine inboards and commercial vehicle engines without voltage drop issues.
Safety and Durability in Harsh Conditions
Safety is paramount in marine installations. This unit is ignition protected, making it safe for installation on gasoline-powered boats by preventing sparks that could ignite fumes. The case is constructed to withstand vibration and environmental stress, featuring tinned copper studs for maximum conductivity and corrosion resistance.
For installation flexibility, the switch supports both surface and rear panel mounting. The heavy-duty 1/2" (approx. M12) terminal studs are designed to accept large cable lugs, accommodating up to 4/0 AWG (approx. 120mm²) battery cables to minimise resistance and heat build-up.
Key Features
- High Cranking Rating: Handles up to 1600A for 30 seconds, ideal for starting heavy engines.
- 4-Position Selector: Offers OFF, 1, 2, and 1+2 (Combine) settings for complete battery management.
- Make-Before-Break: Allows switching between banks without cutting power to connected devices.
- Ignition Protected: Safe for use in engine rooms and fuel storage areas.
- Flexible Mounting: Compatible with surface or rear panel installation using 1/4" (approx. M6) fasteners.
- Corrosion Resistant: Features 1/2" (approx. M12) tinned copper studs for long-lasting marine performance.
Upgrade Your Power System
Ensure your vessel or vehicle has the reliable power switching it needs. Install the Blue Sea HD-Series Selector Switch today for safe, efficient, and professional battery management.

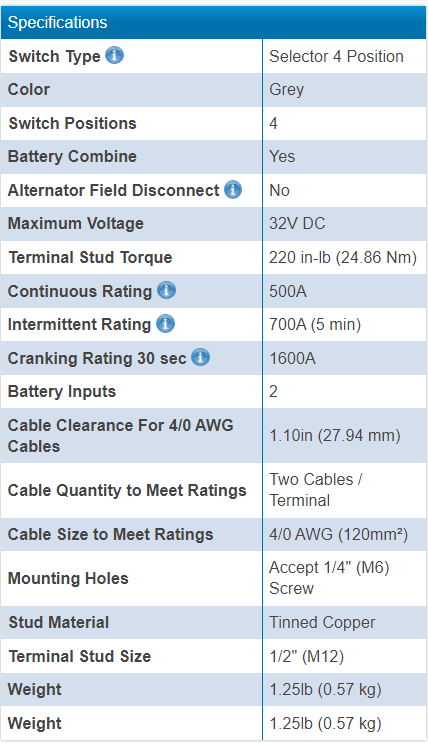

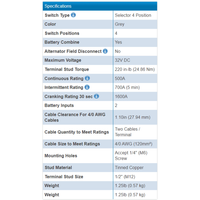

SPECIFICATIONS
Specifications
| Switch Type | Selector 4 Position |
|---|---|
| Color | Grey |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque |
220 in-lb (24.86 N·m) (approx. 18.3 ft-lb; reference only) |
| Continuous Rating | 400A |
| Intermittent Rating | 700A (5 min) |
| Starting Rating (30 sec) | 1600A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) (reference only) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |
| Mounting Holes |
Accept 1/4" (M6) Screw (1/4" ≈ 6.35 mm; M6 is 6 mm; reference only) |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size |
1/2" (M12) (1/2" ≈ 12.70 mm; M12 is 12 mm; reference only) |
| Weight (min / max) |
1.25–1.25 lb (0.57–0.57 kg) (approx. 570 g; reference only) |
| SKU: | BS-3002B |
| Barcode: | 632085030025 |
| Model #: | BS-3002B |
| MPN: | BS-3002B |
