Blue Sea DPDT Contura Switch, Three-Position (ON)-OFF-(ON), Grey
Blue Sea DPDT Contura Switch, Three-Position (ON)-OFF-(ON), Grey
Ignition Protected Momentary Marine Rocker Switch - UL 1500 Compliant
Regular price
$37.06
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Momentary Marine Rocker Switch for Water-Resistant Panels

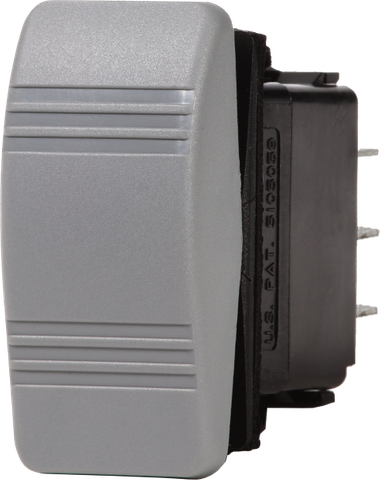

The Blue Sea Systems 8222B Contura Switch is a purpose-built, marine-grade electrical component designed for reliable circuit control in harsh environments. Featuring a Double Pole Double Throw (DPDT) configuration with a (ON)-OFF-(ON) momentary action, this switch returns to the central off position when released. It is specifically manufactured to snap securely into Blue Sea Systems water-resistant Contura panels, providing a seamless, weatherproof interface for your vessel or off-grid vehicle.
Engineered for Harsh Marine and Off-Road Environments
Standard automotive switches often fail prematurely when exposed to coastal air, heavy washdowns, or constant corrugated road vibrations. The Blue Sea Contura series solves this problem by incorporating internal and external seals alongside corrosion-resistant materials. Designed to withstand extreme vibration, mechanical shock, thermoshock, moisture, and salt spray, it reduces the risk of electrical shorts, corroded terminals, and unexpected system failures when you are far from shore or off the beaten track.
Safety is critical in enclosed marine engine bays and fuel storage areas. This switch is fully ignition protected, complying with strict UL 1500 and ISO 8846 standards. This makes it safe for installation aboard petrol-powered (gasoline) boats, ensuring that internal switching arcs cannot ignite surrounding flammable vapours.
Key Features and Benefits
- DPDT (ON)-OFF-(ON) Momentary Action: Spring-loaded return-to-centre mechanism ideal for precise, temporary activation of dual-direction loads.
- Ignition Protected: Meets UL 1500 and ISO 8846 requirements for safe operation on petrol-powered vessels and near fuel systems.
- Environmental Resilience: Built with a specialised sealing gasket to resist salt spray, moisture ingress, thermoshock, and heavy vibration.
- Panel-Mount Design: Integrated mounting tabs ensure a secure fit into Blue Sea Systems water-resistant panels.
- Secure Electrical Connections: Equipped with rear spade terminals for dependable DPDT wiring and circuit integration.
Ideal Applications for DPDT Momentary Switching
A Double Pole Double Throw momentary switch is exceptionally versatile for complex DC electrical systems. Because the (ON)-OFF-(ON) brackets indicate momentary operation in both directions, it is commonly wired to reverse polarity or control two separate circuits temporarily. Typical applications include:
- Anchor Windlasses and Winches: Safely control up and down operations without the risk of leaving the motor engaged.
- Trim Tabs and Hydraulic Jack Plates: Make precise, momentary adjustments to vessel trim and engine height.
- Motorised Actuators and Hatches: Operate engine bay hatches, slide-outs, or linear actuators requiring forward and reverse polarity control.
- Dual Windscreen Wiper Controls: Manage intermittent or wash/wipe functions across twin marine wipers.
Upgrade Your Electrical Control Panel
Whether you are fitting out a new marine dash, replacing a worn actuator switch on your boat, or building a custom water-resistant switch panel for an expedition vehicle, the Blue Sea 8222B delivers dependable performance. Complete your electrical installation with a switch engineered for safety and longevity in Australian conditions.
SKU: BS-8222B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DPDT Contura switch |
| Switch positions | Three: (ON)-OFF-(ON) |
| Colour | Grey |
| Mounting | Panel mount; specially manufactured for Blue Sea Systems water-resistant panels |
| Ignition protection | Ignition protected; safe for installation aboard gasoline-powered boats |
| Resistance | Vibration, shock, thermoshock, moisture and salt spray resistant |
| Standards compliance | UL 1500; ISO 8846 ignition protection requirements |
| SKU: | BS-8222B |
| Model #: | BS-8222B |
| MPN: | BS-8222B |
| Package weight: | 0.048 kg |
| Package length: | 0.08 m |
| Package width: | 0.04 m |
| Package height: | 0.06 m |
