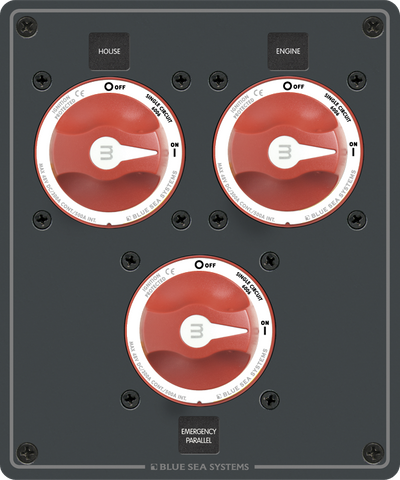

Blue Sea DC Battery Management Switch Panel for Dual Batteries with Three m-Series ON-OFF Battery Switches
Blue Sea DC Battery Management Switch Panel for Dual Batteries with Three m-Series ON-OFF Battery Switches
300A Continuous up to 48V DC - Ignition Protected with Parallel Switch
Regular price
$523.04
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Comprehensive Dual-Battery Control and Circuit Isolation
The Blue Sea DC Battery Management Switch Panel provides a dedicated, central control point for managing dual-battery electrical systems in marine and off-grid environments. Equipped with three heavy-duty m-Series ON-OFF battery switches, this panel effectively separates the engine starting circuit from the house auxiliary circuit. By isolating these loads, it ensures your starting battery remains fully charged and ready for engine cranking, even if the house battery bank is depleted by onboard appliances, lighting, or navigation systems.
Designed for demanding applications up to 48V DC, this management panel supports high-current loads of 300A continuous and 500A intermittent. Unlike standard selector switches that can accidentally leave both batteries connected and vulnerable to total discharge, this three-switch configuration gives operators intuitive, independent control over the House, Engine, and Emergency Parallel circuits.
Key Features and System Benefits
- Independent Circuit Isolation: Dedicated switches for both the engine and house battery banks allow you to manage and isolate circuits individually for maintenance or storage.
- Emergency Parallel Capability: Features a dedicated third switch to cross-connect and combine both isolated battery banks, providing vital emergency starting power if the primary cranking battery runs low.
- Electronics Protection: Isolating the house circuit from the engine circuit shields sensitive onboard electronics, such as chartplotters and radios, from damaging voltage sags and spikes caused by engine cranking.
- Ignition Protected: Certified safe for installation aboard petrol-powered vessels, reducing the risk of igniting surrounding flammable vapours in engine compartments.
- High-Current Capacity: Rated for 300A continuous and 500A intermittent loads up to 48V DC, making it suitable for heavy-duty marine and mobile power setups.
Protecting Sensitive Onboard Electronics
Modern marine vessels and off-grid setups rely heavily on microprocessors, sounders, and communication gear. When a single battery system is used, the heavy current draw required to crank an engine often causes a sudden voltage drop, causing electronics to reset or suffer long-term component degradation. By utilizing the Blue Sea DC Battery Management Switch Panel to physically separate these circuits, your auxiliary equipment receives clean, uninterrupted power from the house bank while the engine bank handles the high-inrush cranking loads.
Safe and Expandable System Architecture
Safety in marine electrical systems is paramount, especially when working around petrol engines. The included m-Series switches are fully ignition protected, offering peace of mind when mounting the panel in enclosed spaces or bilge areas. Compared to uncertified alternatives that may expose internal contacts to ambient fumes, this panel is engineered specifically for harsh marine conditions.
Please note that while this panel provides complete manual control and isolation, an Automatic Charging Relay (ACR) is not included. For users looking to automate the charging of both battery banks from a single alternator or charger, a compatible Blue Sea ACR can be integrated alongside this panel to create a fully automated charging and manual isolation system.
Ideal Applications
- Dual-battery setups in fibreglass, aluminium, and timber boats
- Petrol and diesel-powered marine vessels requiring ignition-protected components
- Custom 12V, 24V, and 48V DC off-grid canopies, RVs, and expedition vehicles
- Upgrading older single-switch or manual selector battery systems
Upgrade Your Battery Management
Ensure reliable engine starts and protect your valuable onboard electronics with a professional-grade isolation system. Integrate the Blue Sea DC Battery Management Switch Panel into your vessel or mobile setup today for dependable dual-battery control.
SKU: BS-8280B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC battery management switch panel |
| Switch count | 3 |
| Included switches | m-Series ON-OFF battery switches |
| Battery control | Isolates engine and house circuits; allows independent battery control and emergency cross-connection between isolated battery banks |
| Engine-cranking protection | Protects electronics from sags and spikes caused by engine cranking |
| Ignition protection | Ignition protected; safe for installation aboard gasoline-powered boats |
| Automatic Charging Relay | An added ACR automates charging two battery banks |
| SKU: | BS-8280B |
| Model #: | BS-8280B |
| MPN: | BS-8280B |
| Package weight: | 1.86 kg |
| Package length: | 0.36 m |
| Package width: | 0.27 m |
| Package height: | 0.15 m |
