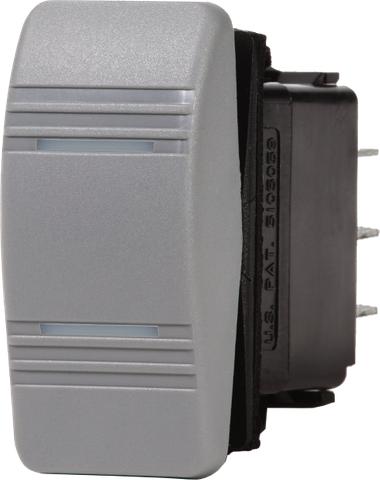

Blue Sea Contura SPDT ON-OFF-ON Switch, Grey
Blue Sea Contura SPDT ON-OFF-ON Switch, Grey
Ignition Protected Marine Rocker Switch - UL1500 & ISO8846 Compliant
Regular price
$27.80
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Marine Panel Switching with Ignition Protection
Engineered specifically for seamless integration into Blue Sea Systems water-resistant panels, this Contura rocker switch delivers dependable Single Pole Double Throw (SPDT) control in demanding marine and off-grid environments. With a maintained three-position ON-OFF-ON switching configuration, it allows operators to control two separate circuits from a single common power source, making it an essential component for complex vessel and vehicle electrical systems.
Unlike standard automotive switches that rapidly degrade when exposed to coastal elements, the Blue Sea Contura series is purpose-built to withstand harsh conditions. It features an integrated water-resistant gasket that prevents moisture ingress at the panel face, protecting the internal contacts and rear electrical connections from corrosion and premature failure.
Certified Safety for Petrol and Diesel Vessels
Electrical safety in enclosed engine bays and bilge areas is critical. This switch features a fully sealed housing that meets stringent UL1500 and ISO8846 ignition protection requirements. This certification makes it safe for installation aboard petrol-powered boats, as the internal switching mechanism is isolated to prevent any electrical arc from igniting surrounding flammable fumes.
Engineered for Extreme Environments
Whether navigating choppy offshore waters or travelling across corrugated outback tracks, electrical components are subjected to constant mechanical stress and rapid temperature changes. The Contura switch body and tactile grey rocker actuator are rigorously tested to resist:
- Salt Spray and Moisture: Prevents internal corrosion and short circuits in open cockpits, flybridges, and wet dash environments.
- Vibration and Shock: Maintains secure electrical contact and prevents accidental actuation during heavy wave impacts or rough off-road travel.
- Thermoshock: Withstands rapid temperature fluctuations without housing cracks or seal degradation.
Key Features and Benefits
- SPDT ON-OFF-ON Action: Three-position maintained switching ideal for dual-circuit applications.
- Certified Ignition Protected: Complies with UL1500 and ISO8846 standards for safe operation on petrol-powered vessels.
- Panel-Ready Integration: Designed to snap directly into Blue Sea Systems water-resistant Contura panels.
- Tactile Grey Actuator: Ergonomic rocker surface ensures positive, slip-resistant operation even with wet or gloved hands.
- Three-Terminal Design: Rear metal terminal pins provide straightforward connectivity for single pole double throw wiring setups.
Versatile Marine and Off-Grid Applications
The SPDT ON-OFF-ON configuration solves the problem of cluttered dash panels by combining two related functions into a single cutout. Common applications include:
- Navigation and Anchor Lights: Easily toggle between running lights (ON), off, and anchor light only (ON) using one switch.
- Bilge Pump Control: Switch seamlessly between automatic float switch mode, manual override, and system off.
- Windscreen Wipers: Select between low speed, off, and high-speed wiper operation.
- Dual Tank or Auxiliary Systems: Manage fuel transfer pumps, dual blower speeds, or auxiliary lighting setups in 4WDs, caravans, and commercial workboats.
Upgrade Your Marine Electrical Panel
Ensure long-term reliability and compliance in your vessel or off-grid vehicle. Select this Blue Sea Systems Contura SPDT switch to complete or repair your water-resistant switch panel installation today.
SKU: BS-8232B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | SPDT ON-OFF-ON switch |
| Colour | Grey |
| Mounting compatibility | Blue Sea Systems water resistant panels |
| Environmental resistance | Vibration, shock, thermoshock, moisture and salt spray resistant |
| Ignition protection | Ignition protected |
| Standards | Meets UL1500 and ISO8846 ignition protection requirements |
| SKU: | BS-8232B |
| Model #: | BS-8232B |
| MPN: | BS-8232B |
| Package weight: | 0.048 kg |
| Package length: | 0.08 m |
| Package width: | 0.05 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
