Blue Sea Contura Single-Pole Double-Throw 3-Position Switch, (ON)-OFF-(ON), Grey

Ignition-Protected Momentary Marine Rocker Switch - UL 1500 Compliant


Regular price $27.80
/
Availability: Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

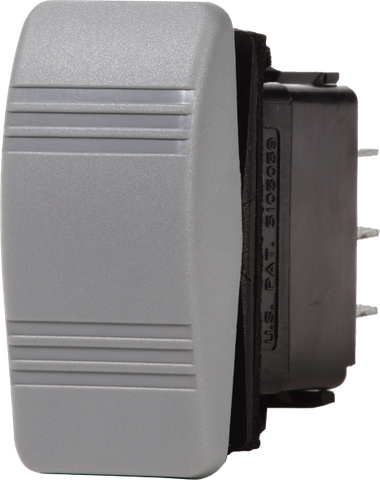

Grey Blue Sea Contura momentary SPDT rocker switch in side profile showing terminals

Blue Sea Contura Single-Pole Double-Throw 3-Position Switch, (ON)-OFF-(ON), Grey

DESCRIPTION

Precision Momentary Marine SPDT Switching for Harsh Environments

The Blue Sea Systems Contura 8234B is a heavy-duty single-pole double-throw (SPDT) rocker switch engineered specifically for demanding marine and off-grid electrical installations. Featuring a momentary (ON)-OFF-(ON) three-position configuration, the actuator springs back to the centre OFF position when released. This provides safe, deliberate control for dual-direction circuits where continuous activation is not desired.

Standard automotive switches often fail quickly when exposed to coastal air, hull pounding, or rapid temperature shifts, leading to corroded contacts and electrical faults. The Contura series solves this problem by integrating internal weather-resistant seals and rugged internal mechanisms designed to endure constant vibration, physical shock, thermoshock, moisture, and salt spray.

Engineered for Marine Safety and Panel Integration

When working with marine electrical systems, particularly aboard petrol-powered vessels, safety compliance is critical. This switch features a fully sealed, ignition-protected housing that meets strict UL 1500 and ISO 8846 standards. It reduces the risk of internal electrical arcs igniting flammable bilge fumes, making it safe for installation in or near engine compartments and fuel storage areas.

In addition to standalone custom dash installations, this unit is specially manufactured to clip directly into Blue Sea Systems water-resistant Contura panels, ensuring a cohesive, watertight seal across your entire helm or control board.

Key Features and Benefits

  • Momentary (ON)-OFF-(ON) Action: Spring-return to the centre off position prevents accidental continuous operation of pumps, winches, or actuators.
  • Certified Ignition Protection: Complies with UL 1500 and ISO 8846 requirements for safe installation aboard petrol and diesel boats.
  • Extreme Environmental Resistance: Tested to withstand heavy vibration, mechanical shock, thermoshock, moisture ingress, and corrosive salt spray.
  • Seamless Panel Mounting: Purpose-built for direct integration into Blue Sea Systems water-resistant electrical panels.
  • Tactile Grey Rocker Face: Provides positive physical feedback in wet conditions and rough seas while matching standard marine dash aesthetics.

Ideal Applications

Because the (ON) positions in parentheses denote momentary operation, this SPDT switch is suited for equipment that requires temporary, two-way or dual-circuit control:

  • Windlass anchor winches (Up / Off / Down)
  • Hydraulic or electric trim tabs and engine tilt controls
  • Dual-circuit bilge pump overrides or momentary horn and wiper washer functions
  • Motorised hatches, vents, and linear actuators in marine vessels, 4WDs, and expedition campers

Upgrade Your Control Panel

Equip your vessel or off-road electrical system with hardware built to handle the elements. Add the Blue Sea Contura SPDT momentary switch to your setup for compliant, water-resistant circuit control.


SKU: BS-8234B

SPECIFICATIONS

SpecificationDetails
Product typeContura switch
Pole configurationSPDT (single-pole double-throw)
Switch action(ON)-OFF-(ON)
Number of positions3
ColourGrey
MountingPanel mount; specially manufactured for mounting in Blue Sea Systems water-resistant panels
Ignition protectionIgnition protected; safe for installation aboard gasoline-powered boats
Standards / complianceUL 1500; ISO 8846
Environmental resistanceVibration, shock, thermoshock, moisture and salt spray resistant

SKU: BS-8234B
Model #: BS-8234B
MPN: BS-8234B
Package weight: 0.048 kg
Package length: 0.05 m
Package width: 0.04 m
Package height: 0.08 m
