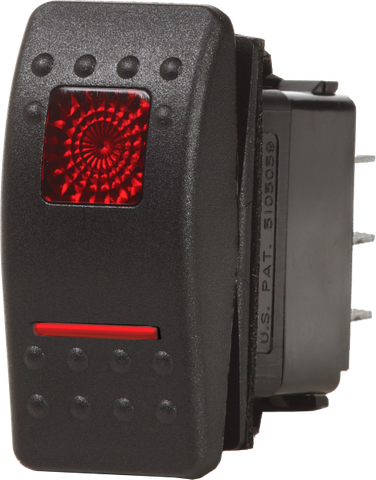

Blue Sea Contura II DPDT ON-OFF-ON Switch, Black
Blue Sea Contura II DPDT ON-OFF-ON Switch, Black
Salt Spray & Vibration Resistant - Dual Red Lenses & 6.3mm Terminals
Regular price
$37.06
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Three-Position Switching for Harsh Marine and Off-Grid Environments
Managing dual-circuit electrical systems in demanding environments requires components engineered to withstand constant mechanical and environmental stress. This panel-mount rocker switch features a Double Pole Double Throw (DPDT) configuration with a defined three-position ON-OFF-ON operation. The central OFF position provides a clear physical separation between the two active circuits, reducing the risk of accidental cross-switching when managing complex power, lighting, or directional control layouts in marine vessels, 4WDs, and off-grid canopies.
Engineered for Extreme Environmental Resistance
Standard automotive switches often succumb to corrosion, contact failure, and water ingress when exposed to coastal air or heavy corrugated roads. Engineered specifically for high-exposure applications, this Contura II switch is built to resist vibration, shock, thermoshock, moisture, and salt spray. An integrated neoprene weatherproof gasket creates a reliable seal when mounted into compatible panels, protecting your behind-panel wiring and sensitive DC electronics from water and dust ingress.
Ergonomic Control and Clear Visual Indication
Designed for intuitive operation in low-light or wet conditions, the black Contura II actuator features a dimpled texture on the rocker face for improved tactile grip. The switch incorporates dual red illumination lenses—a square upper lens and a lower indicator bar—allowing for clear status monitoring and circuit identification on crowded dashboards or control consoles. On the rear, standard 6.3mm blade terminals facilitate straightforward, secure crimp connections during installation or maintenance.
- DPDT ON-OFF-ON Configuration: Provides versatile three-position control for dual circuits, ideal for navigation/anchor lights, bilge pump modes, or dual battery auxiliaries.
- Environmental Protection: Tested for resistance against salt spray, moisture, thermoshock, and heavy vibration to prevent premature electrical failure.
- Tactile Contura II Actuator: Black ergonomic rocker face with a dimpled grip profile and integrated dual red indicator lenses for circuit visibility.
- Seamless Panel Integration: Designed to snap directly into Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels with a neoprene mounting gasket.
- Standard Connectivity: Equipped with rear 6.3mm blade terminals for reliable integration with standard marine and automotive wiring harnesses.
Versatile Applications for Marine and Mobile Systems
Whether you are fitting out a commercial workboat, upgrading a marine helm, or building a custom 12V or 24V electrical system in a touring vehicle, reliable switching is critical to system safety. The DPDT ON-OFF-ON layout is widely utilised for applications requiring two distinct operational modes with a positive centre shut-off, such as combining navigation and anchor lighting onto a single switch, controlling windscreen wiper speeds, or switching between two separate tank level senders on a single gauge.
Upgrade your control panel with the Blue Sea Contura II DPDT switch to ensure dependable, weather-resistant circuit management across your marine or off-grid electrical installation.
SKU: BS-7936B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Switch configuration | DPDT |
| Switch positions | ON-OFF-ON; 3 positions |
| Color | Black |
| Mounting / form factor | Panel mount |
| Compatible panels | Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels |
| Resistance | Vibration, shock, thermoshock, moisture and salt spray |
| SKU: | BS-7936B |
| Model #: | BS-7936B |
| MPN: | BS-7936B |
| Package weight: | 0.06 kg |
| Package length: | 0.07 m |
| Package width: | 0.05 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
