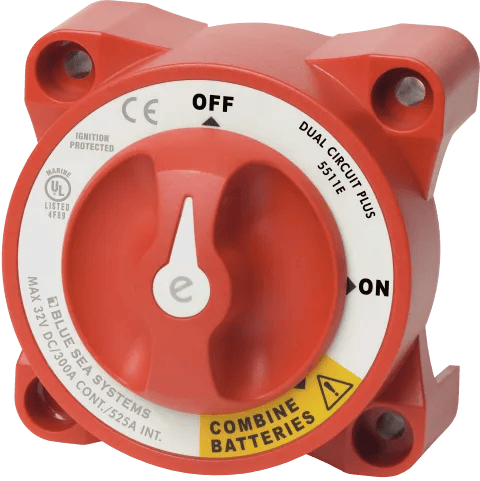

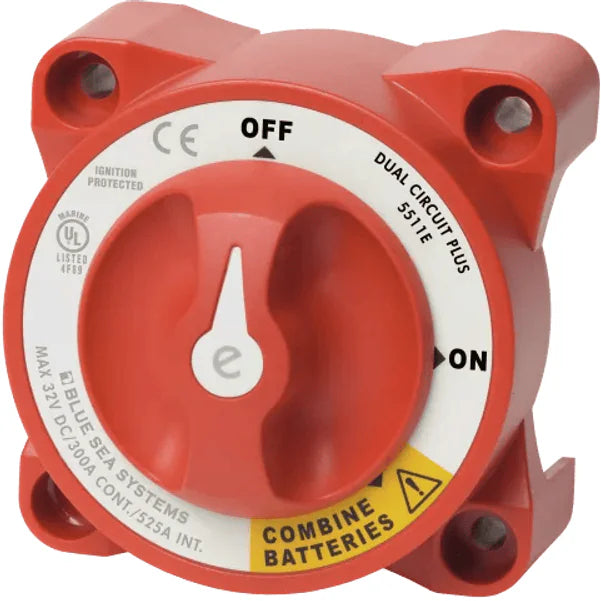

Blue Sea 350A Red e-Series Dual Circuit+ Battery Switch
Blue Sea 350A Red e-Series Dual Circuit+ Battery Switch
350A Continuous - Isolates 2 Banks - Ignition Protected - Red
Regular price
$111.00
Availability:
In Stock
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
2
DESCRIPTION
Simplify Marine Power Management with the e-Series Dual Circuit Plus
Managing multiple battery banks on a vessel often involves complex wiring or the risk of draining your starting battery through house loads. The Blue Sea e-Series Dual Circuit Plus Battery Switch offers a sophisticated solution by simultaneously switching two isolated battery banks with a single ON/OFF knob. This intuitive design ensures that your engine starting battery remains isolated from your house battery circuit, preserving critical cranking power while protecting sensitive electronics from voltage spikes during engine starting.
Simultaneous Switching and Isolation

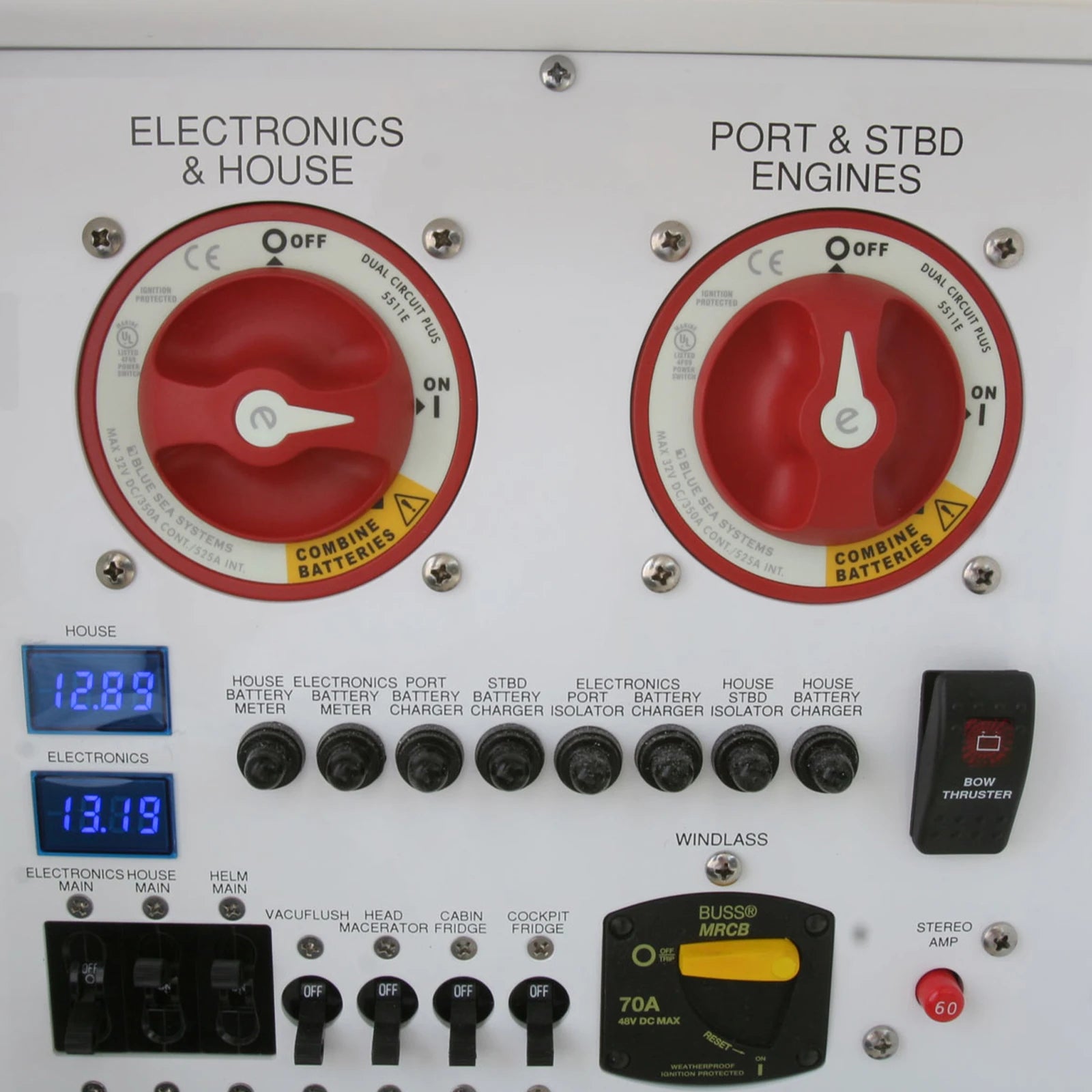

Unlike traditional selector switches that force you to choose between batteries, the Dual Circuit Plus acts as two switches in one. When turned to the ON position, it connects the start battery to the engine and the house battery to the distribution panel simultaneously, yet keeps the circuits electrically separate. This isolation is crucial for modern boating; it allows you to run refrigerators, lighting, and audio systems from the house bank without the risk of depleting the battery required to start the engine. It effectively solves the common problem of accidental starting battery discharge while at anchor.
Emergency Parallel Functionality

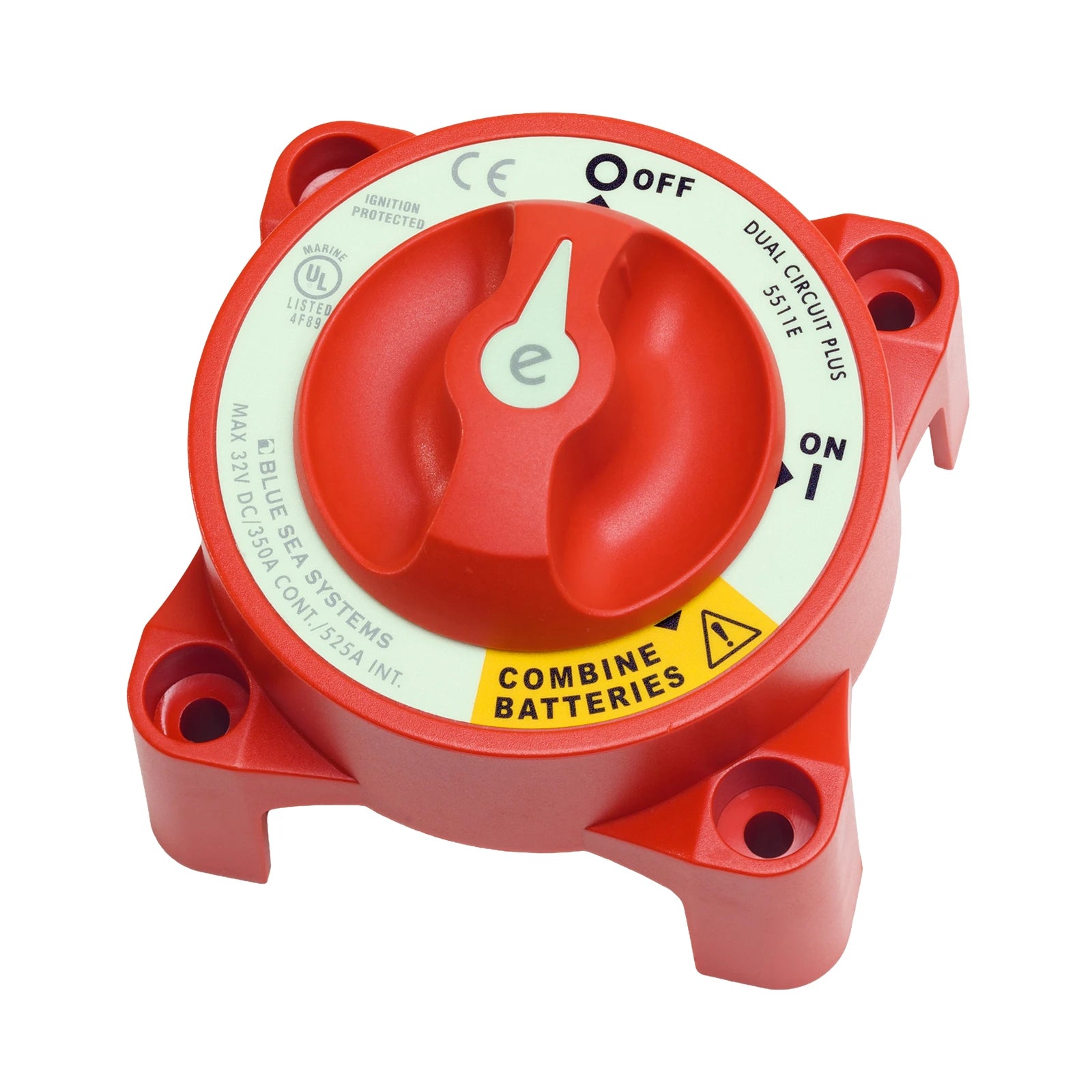

Safety and redundancy are paramount in marine environments. In the event of a flat starting battery, this switch features a "Combine Batteries" position. By rotating the knob to this setting, you can parallel both battery banks, utilising the capacity of the house bank to provide the necessary amperage to start the engine. This built-in emergency cross-over eliminates the need for jumper cables or separate emergency parallel solenoids, providing immediate peace of mind when you are far from shore.
Engineered for Harsh Marine Environments

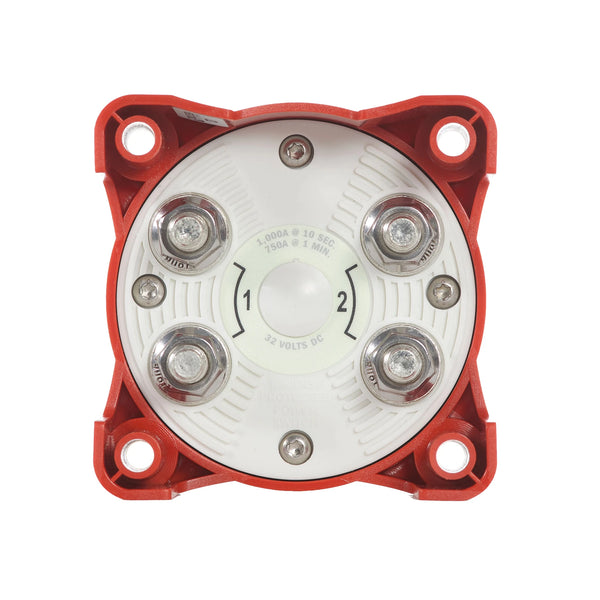

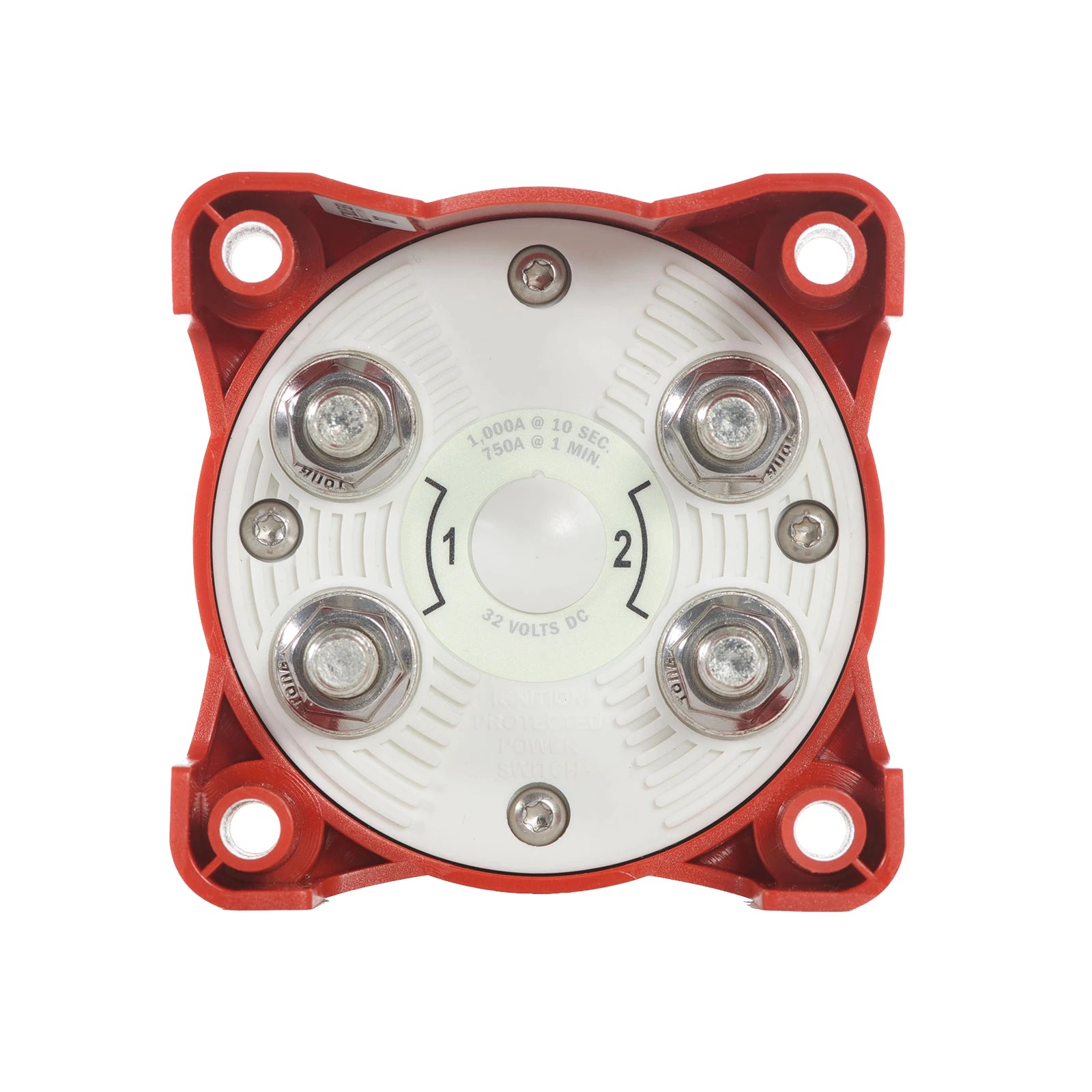

Built to withstand the rigours of the ocean, the e-Series switch features tinned copper studs for maximum conductivity and corrosion resistance. The 3/8"-16 (Approx. M10) terminal studs are designed to accept heavy-duty ring terminals, accommodating cables up to 4/0 AWG (Approx. 120mm²). The switch is rated for a continuous current of 350A per circuit, making it suitable for most small to medium-sized outboards and inboard engines.

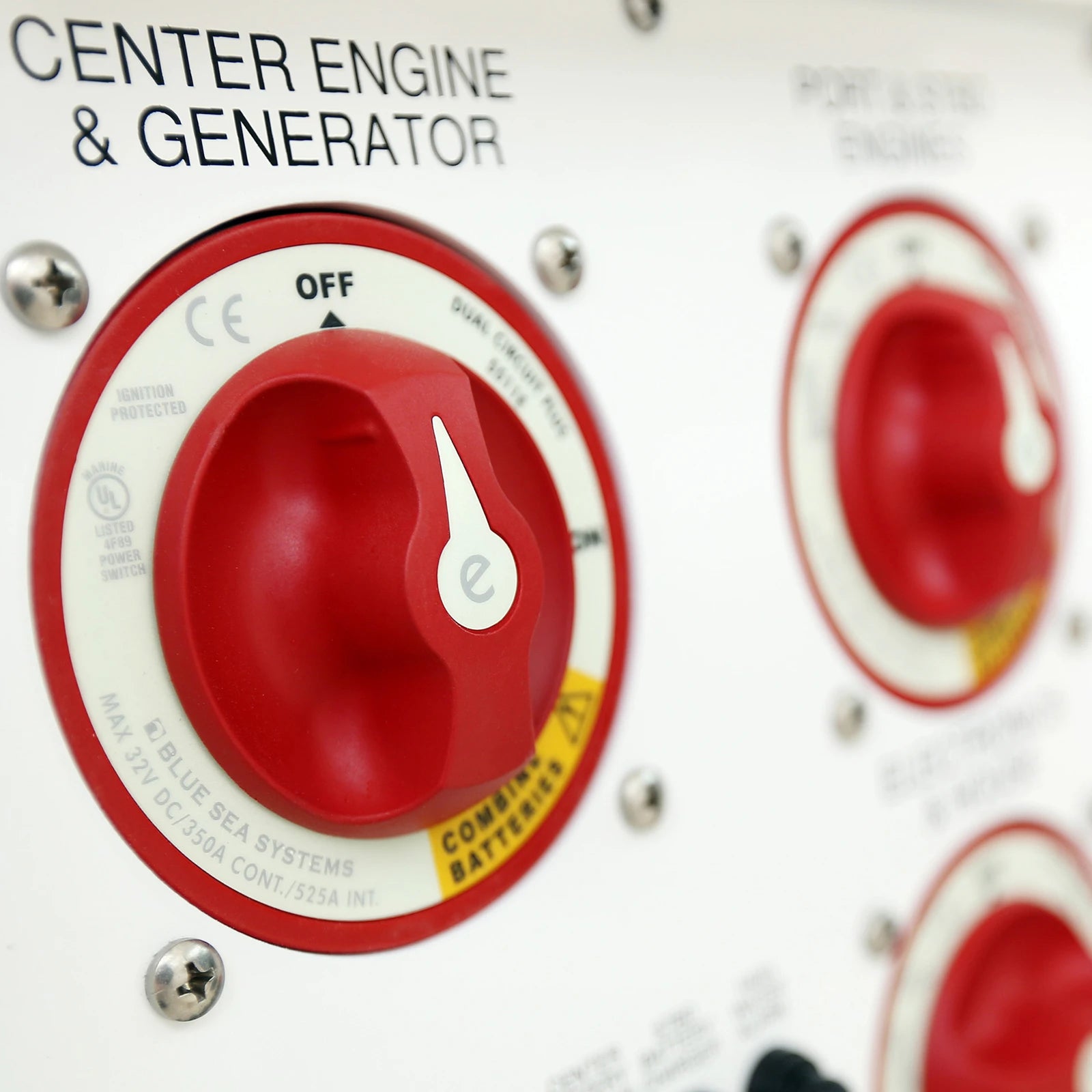

Additionally, the unit is ignition protected, making it safe for installation in the engine rooms of petrol-powered boats. This safety rating ensures the switch will not ignite flammable fumes, a critical requirement for compliance and safety on board.
Make-Before-Break Design
The internal mechanism utilises a make-before-break contact design. This allows you to switch between the "ON" and "COMBINE" positions without momentarily cutting power, ensuring that GPS units, radios, and other sensitive electronics do not reboot or lose signal during critical switching operations.
Key Features
- Dual Circuit Plus Design: Switches two battery banks simultaneously while maintaining isolation
- Emergency Combine: Parallels banks to start the engine if the starting battery is low
- High Current Rating: Handles 350A continuous current per circuit suitable for substantial loads
- Ignition Protected: Safe for installation aboard petrol-powered vessels
- Corrosion Resistant: Tinned copper 3/8"-16 (Approx. M10) studs ensure long-lasting electrical connections
- Make-Before-Break Contact: Allows switching without interrupting power to electronics

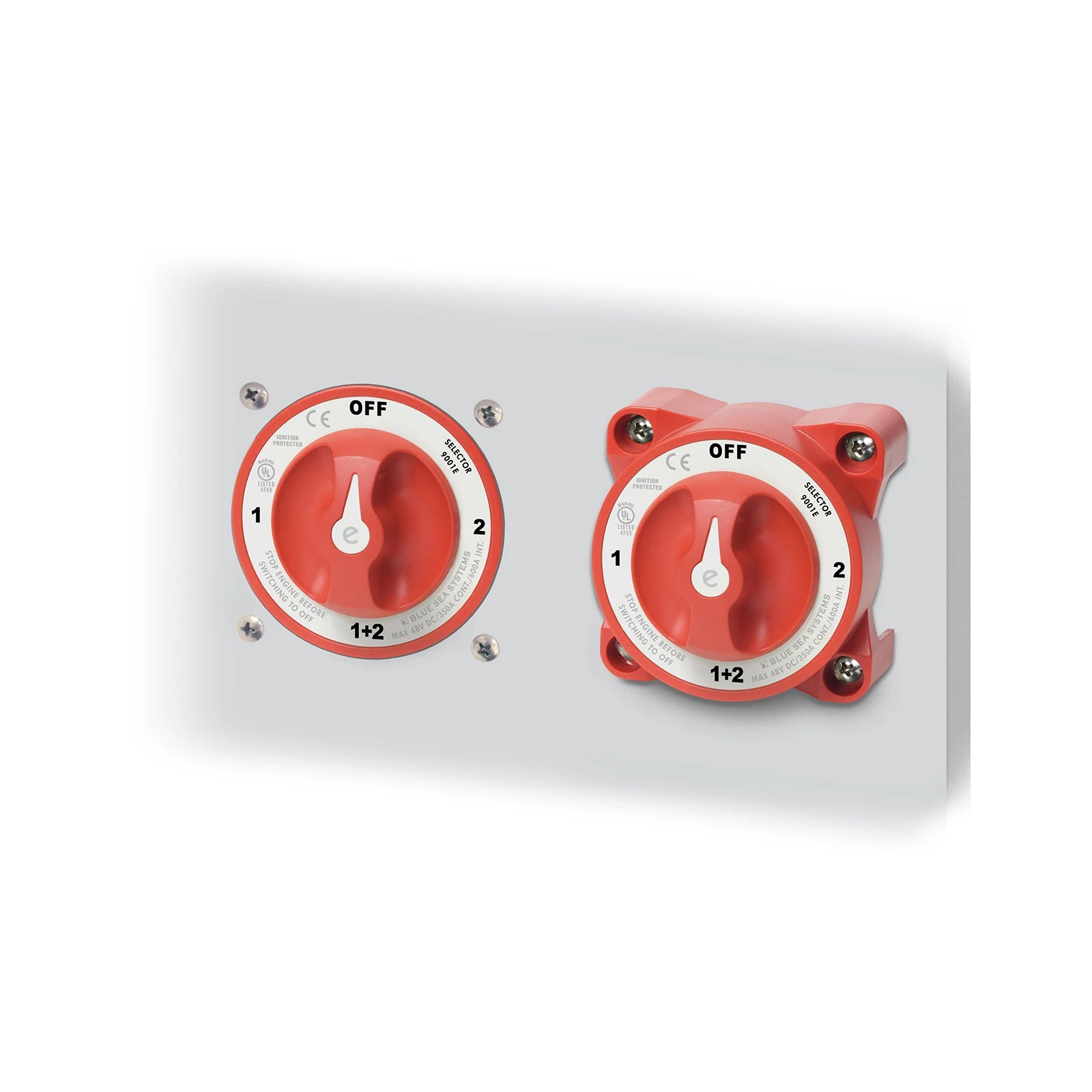

- Versatile Mounting: Case design supports surface or rear panel installation
Upgrade Your Battery System Today
Ensure your vessel's power system is safe, logical, and reliable. Install the Blue Sea e-Series Dual Circuit Plus Battery Switch to protect your engine battery and simplify your onboard power management.
SKU: BS-5511EB
SPECIFICATIONS
Specifications
| Switch Type | Dual Circuit Plus |
|---|---|
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque |
140 in-lb (15.82 N·m) (approx. 11.7 ft-lb; reference only) |
| Continuous Rating | 350A |
| Intermittent Rating | 525A (5 min) |
| Starting Rating (30 sec) | 700A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) (reference only) |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |
| Mounting Holes |
Accept 1/4" (M6) Screw (1/4" ≈ 6.35 mm; M6 is 6 mm; reference only) |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size |
3/8" - 16 (M10) (3/8" ≈ 9.53 mm major diameter; M10 is 10 mm; 16 TPI ≈ 1.59 mm pitch; reference only) |
| Weight (min / max) |
1.16–1.30 lb (0.53–0.59 kg) (approx. 530–590 g; reference only) |
| SKU: | BS-5511EB |
| Model #: | BS-5511EB |
| MPN: | BS-5511EB |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
