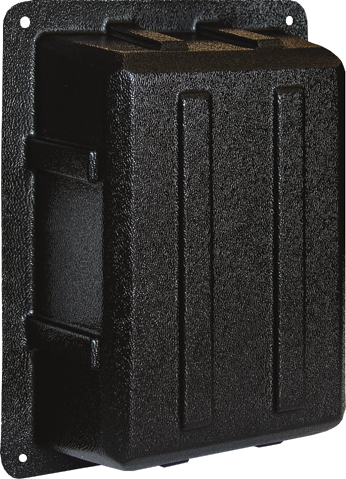

Blue Sea AC Isolation Panel Cover
Blue Sea AC Isolation Panel Cover
ABYC Compliant Rear Shield - Fits up to 191x133x76mm - Drillable
Regular price
$63.84
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Electrical Insulation and Mechanical Protection for Exposed Panel Backs
In marine vessels, caravans, and off-grid installations, electrical distribution panels are frequently flush-mounted into walls or bulkheads that back directly onto storage lockers and utility spaces. Leaving the rear of an AC or combined AC/DC switch panel exposed in these areas creates significant safety and reliability hazards. The Blue Sea Systems 4027B AC Isolation Panel Cover is engineered to provide complete electrical insulation and robust mechanical shielding for exposed panel backs, ensuring your power distribution system remains safe and compliant.
Eliminate Risks in Confined Storage Spaces
When the rear of an electrical panel protrudes into a storage locker, shifting cargo, tools, or equipment can easily snag on delicate wiring, loosen terminal connections, or cause catastrophic short circuits. Furthermore, accidental human contact with live AC terminals poses a severe electrocution hazard. Installing this dedicated isolation cover creates a physical barrier over the vulnerable rear components, preventing accidental contact with live terminals and shielding your wiring harness from mechanical damage caused by moving gear.
Key Features and Benefits
- Comprehensive Electrical Insulation: Shields live AC terminals and busbars from accidental contact, significantly enhancing crew and passenger safety.
- Mechanical Locker Protection: Prevents shifting cargo and stored items in lockers or behind bulkheads from damaging sensitive rear-panel wiring and circuit breakers.
- ABYC Compliant Design: Fully meets American Boat and Yacht Council (ABYC) safety requirements for electrical panels featuring combined AC and DC loads.
- Customisable Wire Routing: Constructed from a specialised lightweight material that can be easily drilled on-site to create custom cable entry and exit points tailored to your specific wiring layout.
- Simple Flange Mounting: Features a pre-drilled perimeter mounting flange for straightforward, secure attachment over the rear of your switch panel.
Engineered for Custom Marine and RV Installations
Unlike makeshift enclosures or standard junction boxes that are difficult to modify without cracking, the Blue Sea AC Isolation Cover is manufactured from a durable, lightweight textured plastic specifically designed for custom fabrication. Installers can effortlessly drill or cut apertures into the sides or base of the enclosure to accommodate heavy-gauge cables, conduit, or complex wiring looms. This flexibility ensures a neat, professional installation without compromising the structural integrity of the protective barrier.
Sizing and Compatibility
Designed to accommodate a variety of standard Blue Sea Systems panels and other electrical components, this enclosure provides ample internal clearance for rear-protruding circuit breakers, meters, and wiring harnesses. It is suitable for covering panels or electrical objects measuring up to 7-1/2" (Approx. 191mm) in length, 5-1/4" (Approx. 133mm) in width, and 3" (Approx. 76mm) in depth.
Upgrade Your Electrical System Safety
Ensure your marine or mobile electrical installation meets strict safety standards while protecting your vital wiring from everyday wear and tear. Add the Blue Sea AC Isolation Panel Cover to your build today for professional-grade panel back protection.
SKU: BS-4027B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | AC isolation cover |
| Function | Electrical insulation and mechanical protection for exposed panel backs |
| Cover characteristics | Lightweight material; can be drilled for wire entrance and exit |
| Maximum covered object size | 7-1/2 inches long × 5-1/4 inches wide × 3 inches deep |
| Standard | Meets ABYC requirements for panels with combined AC and DC |
| SKU: | BS-4027B |
| Model #: | BS-4027B |
| MPN: | BS-4027B |
| Package weight: | 0.18 kg |
| Package length: | 0.24 m |
| Package width: | 0.18 m |
| Package height: | 0.11 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
