Blue Sea 80A C-Series Triple-Pole Toggle Circuit Breaker
Blue Sea 80A C-Series Triple-Pole Toggle Circuit Breaker
Simultaneous 3-Pole Overcurrent Protection & Heavy-Duty Rear Studs
Regular price
$250.19
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Multi-Pole Switching and Overcurrent Protection
The Blue Sea C-Series 80A Triple-Pole Toggle Circuit Breaker is engineered to consolidate high-current circuit switching and dependable overcurrent protection into a single, compact device. Designed for demanding marine, off-grid, and industrial power systems, this unit eliminates the need to install separate battery switches and fuse blocks. By integrating both functions, it streamlines your electrical panel layout, reduces potential points of failure, and simplifies wiring complexity.

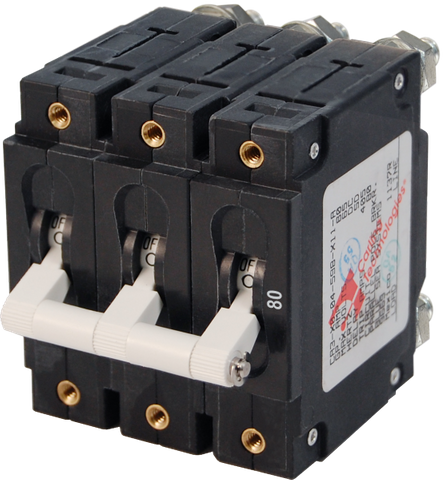

Featuring a mechanically linked triple-pole configuration, all three poles are connected via a single white toggle bar. This ganged lever design ensures that if an overcurrent event occurs on any single line, all three poles will trip simultaneously. This immediate, synchronised disconnection is vital for protecting complex three-phase AC setups, multi-wire DC distribution systems, or applications requiring simultaneous isolation of positive, negative, and control lines.
Key Features and Technical Advantages
- Simultaneous Multi-Pole Isolation: Mechanically joined white toggle levers ensure all three circuits switch on or trip off together for comprehensive equipment protection.
- Dual-Function Design: Combines manual circuit switching and automatic overcurrent protection into one unit, saving valuable panel space.
- Heavy-Duty Rear Stud Terminals: Built to accommodate substantial cable lugs required for 80A current flows, ensuring low-resistance connections and minimal heat build-up.
- Integrated Brass Mounting Inserts: Threaded front-panel inserts provide secure, vibration-resistant installation in mobile and marine environments.
- Clear Visual Status: The prominent toggle actuator provides immediate visual confirmation of the circuit status and carries a clear 80A amperage marking on the breaker face.
Engineered for Demanding Marine and Off-Grid Environments
In mobile and marine electrical installations, vibration, moisture, and thermal cycling can quickly degrade inferior electrical components. Standard single-pole breakers or unlinked switches present a significant risk in multi-wire circuits, where a fault on one line might leave other live conductors connected, creating a hazard during maintenance or equipment failure. The Blue Sea C-Series addresses these risks through robust mechanical construction and synchronised pole actuation.
The heavy-duty rear stud terminals are specifically sized to handle the thick gauge wiring necessary for 80A loads, preventing loose connections that can lead to voltage drop or thermal runaway. Furthermore, the integrated brass mounting inserts allow for clean, secure front-panel integration inside main distribution boards, inverter enclosures, or custom marine switchboards.
Typical Applications
Whether you are fitting out a commercial vessel, upgrading an off-grid solar cabin, or building a custom mobile workspace, this triple-pole circuit breaker offers versatile protection across various high-load scenarios:
- Main circuit protection and isolation for three-phase AC power systems and generators
- Simultaneous switching and protection of positive and negative conductors in isolated DC systems
- Multi-circuit battery bank management and high-output inverter or charger isolation
- Heavy-duty circuit control in caravans, motorhomes, expedition vehicles, and marine vessels
Upgrade Your Electrical Distribution System
Ensure the safety and reliability of your high-amperage electrical circuits with proven Blue Sea Systems engineering. Add the C-Series 80A Triple-Pole Circuit Breaker to your system configuration today for streamlined control and robust overcurrent protection.
SKU: BS-7289B
SPECIFICATIONS
| Product type | Circuit breaker |
|---|
| SKU: | BS-7289B |
| Model #: | BS-7289B |
| MPN: | BS-7289B |
| Package weight: | 0.54 kg |
| Package length: | 0.12 m |
| Package width: | 0.1 m |
| Package height: | 0.14 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
DOCUMENTS
Loading product documents…
