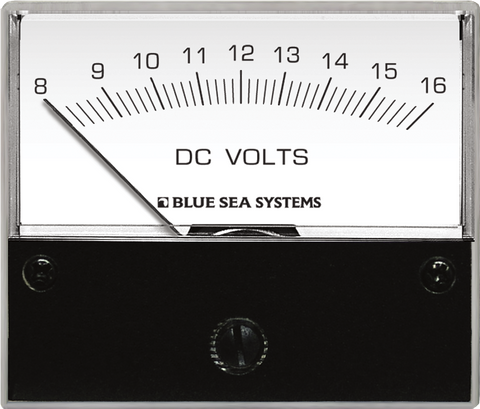

Blue Sea 8-16V DC Voltmeter
Blue Sea 8-16V DC Voltmeter
Analogue White Face with 4-Wire Sensing & 12V/24V Backlight
Regular price
$86.49
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Precision Analogue DC Voltage Monitoring for 12V Electrical Systems
Maintaining accurate visibility over your battery bank is critical for the longevity and reliability of any off-grid, marine, or mobile electrical setup. This specialised analogue DC voltmeter from Blue Sea Systems provides dedicated monitoring across an 8V to 16V scale. By focusing exclusively on the operational range of a standard 12V system rather than a wide 0V to 30V sweep, the meter offers high-resolution readings. This allows you to instantly detect subtle voltage drops, charging states, and potential battery drain at a glance.
Streamlined Four-Wire Installation and Independent Backlighting
Engineered for straightforward integration into custom switch panels and dashboards, this gauge utilises a practical four-wire connection system. The meter senses system voltage and draws its operational power from the exact same connection, reducing wiring complexity behind the dash and minimising potential points of failure during installation.
For low-light and night-time operation, the unit features a clean, backlit white meter face housed in a durable black bezel. To provide full control over your cockpit or cabin illumination, the gauge includes separate connections for 12V or 24V DC backlighting. This independent wiring architecture ensures your voltage sensing remains completely isolated from your dash lighting circuit, allowing you to wire the backlight directly to a dimmer switch or navigation light switch without affecting measurement accuracy.
Key Features and Benefits
- Targeted 8V to 16V Scale: Optimised specifically for 12V DC battery systems, providing clear visibility of critical resting, charging, and load voltages.
- Combined Power and Sensing: Simplifies panel wiring by drawing operating power directly from the voltage-sensing connection.
- Independent Backlight Circuit: Dedicated 12V and 24V DC terminals allow seamless integration with existing dashboard illumination controls.
- Mechanical Zero Adjustment: Features an accessible calibration screw on the face for precise zero-point needle alignment, ensuring ongoing accuracy.
- High-Contrast Display: Crisp white dial face with bold black numbering and a vivid pointer needle for rapid visual checks in marine and automotive environments.
Reducing the Risk of Unexpected Battery Failure
Unlike standard automotive gauges that only offer vague indicators, a calibrated analogue scale gives you immediate feedback on the health of your auxiliary or starter batteries. Inferior, uncalibrated gauges often suffer from needle bounce, parasitic power draw, or inaccurate readings caused by shared lighting grounds. By separating the illumination circuit and providing a mechanical zero-point adjustment, this Blue Sea unit mitigates the risk of false readings, helping you prevent deep discharges that permanently damage lead-acid, AGM, or lithium battery banks.
Ideal Applications for 12V Voltage Monitoring
Whether you are building a new electrical distribution panel from scratch or upgrading an existing dashboard, this voltmeter is built to perform in demanding environments. It is ideally suited for:
- Marine Vessels: Monitor house and cranking batteries from the helm or cabin distribution board, utilizing 12V or 24V vessel lighting circuits for the backlight.
- Caravans and RVs: Keep track of off-grid auxiliary battery consumption and solar charging performance.
- 4WD and Dual Battery Setups: Verify alternator charging output and secondary battery health on remote touring tracks.
- Industrial and Mobile Equipment: Provide operators with clear, immediate feedback on system voltage without navigating complex digital menus.
Upgrade Your Electrical Monitoring Panel
Equip your vessel, caravan, or off-grid power system with dependable, easy-to-read voltage tracking. Add this precision analogue voltmeter to your setup today for clear visibility over your 12V battery performance.
SKU: BS-8003B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC voltmeter |
| DC voltage | 8–16V |
| Connection | Simple four-wire connection; meter senses and receives power from the same connection |
| Display | Backlit meter face |
| Backlight connections | Separate 12V or 24V DC connections |
| SKU: | BS-8003B |
| Model #: | BS-8003B |
| MPN: | BS-8003B |
| Package weight: | 0.168 kg |
| Package length: | 0.09 m |
| Package width: | 0.09 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
