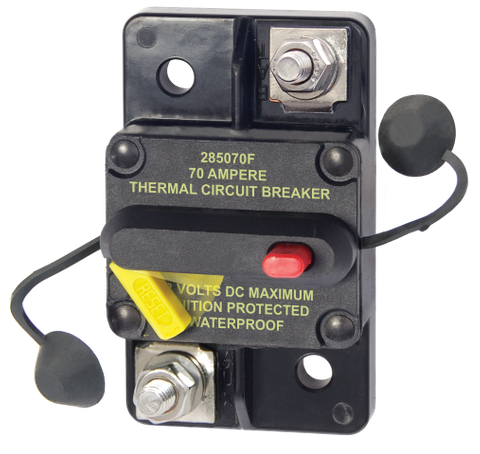

Blue Sea 70A 285-Series Surface Mount Thermal Circuit Breaker
Blue Sea 70A 285-Series Surface Mount Thermal Circuit Breaker
SAE J1171 Ignition Protected, Weather-Resistant & Trip-Free Design
Regular price
$95.75
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty 70A Circuit Protection and Switching for Marine and Off-Grid DC Systems
The Blue Sea 285-Series 70A Surface Mount Thermal Circuit Breaker delivers dual-function efficiency by combining reliable overcurrent protection and manual switching into a single, compact device. Designed specifically for demanding marine, 4WD, and off-grid electrical environments, this unit eliminates the need for separate inline fuse holders and isolation switches. Whether you are protecting secondary battery banks, auxiliary distribution panels, or high-draw DC appliances, the 285-Series offers a streamlined, professional solution for managing your electrical circuits.
Engineered for Harsh Marine and Automotive Environments
Electrical components installed in boats, caravans, and four-wheel drives are regularly exposed to moisture, vibration, and temperature extremes. This circuit breaker features a weather-resistant construction that shields internal mechanisms from dust and water splashes. Furthermore, it meets stringent SAE J1171 external ignition protection standards. This makes it safe for installation aboard petrol-powered vessels and in battery compartments where explosive gases may accumulate, significantly reducing the risk of ignition during a thermal trip event.
To ensure long-term durability and minimal voltage drop, the unit is equipped with corrosion-resistant stainless steel terminal studs. It also includes flexible red and black terminal insulator caps, which fit snugly over the connections to prevent accidental short circuits caused by shifting cargo, tools, or stray wiring in tight enclosures.
Intuitive Operation and Trip-Free Safety
Troubleshooting electrical faults in poorly lit lockers or engine bays is simplified thanks to the high-visibility yellow reset lever. When an overcurrent event occurs, the lever swings open to provide immediate visual confirmation that the circuit has tripped. To manually isolate the circuit for maintenance or storage, simply press the integrated red trip button for instant disconnection.
For enhanced system safety, the breaker utilises a trip-free design. This vital safety feature ensures that the internal contacts cannot be manually held closed while a fault or overcurrent condition persists. This prevents catastrophic wire damage, melted insulation, and potential electrical fires that can occur when using inferior circuit protection devices.
Key Features and Benefits
- Dual-Function Design: Combines 70A thermal circuit protection and manual on/off switching in one compact unit.
- SAE J1171 Ignition Protected: Safe for installation in marine engine bays, bilges, and enclosed battery boxes.
- Trip-Free Mechanism: Cannot be forced to stay closed during an active electrical fault, protecting cabling and equipment.
- Clear Status Indication: High-contrast yellow reset lever clearly shows when the circuit is open, alongside a red push-to-trip button.
- Weather-Resistant Build: Engineered to withstand moisture, salt spray, and vibration in marine and off-road applications.
- Protected Connections: Includes stainless steel terminal studs and flexible insulator boots to guard against accidental short circuits.
- Simple Installation: Surface-mount form factor with integrated mounting holes allows for secure attachment to flat panels and bulkheads.
Application Notes and System Compatibility
The Blue Sea 285-Series is well-suited for protecting main feed lines, DC-DC chargers, solar charge controllers, and medium-duty inverters across 12V, 24V, and 48V DC architectures. Because it is a resettable thermal device, you no longer need to carry spare fuses or struggle with replacing blown links in the field.
Important Application Note: While this unit functions effectively as a circuit disconnect switch, it should not be used for frequent switching of loads where high inrush currents are expected, such as electric winches or heavy motor loads.
Upgrade Your Electrical Safety
Protect your vessel, caravan, or 4WD electrical system with dependable, marine-grade hardware. Add the Blue Sea 285-Series 70A Surface Mount Circuit Breaker to your setup today for safe, resettable power management.
SKU: BS-7185B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| Mounting / form factor | Surface mount |
| Ignition protected | Yes |
| Standards / compliance | SAE J1171 |
| SKU: | BS-7185B |
| Model #: | BS-7185B |
| MPN: | BS-7185B |
| Package weight: | 0.324 kg |
| Package length: | 0.12 m |
| Package width: | 0.09 m |
| Package height: | 0.09 m |
