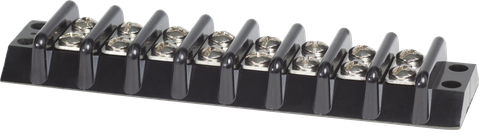

Blue Sea 65A 8-Circuit Terminal Block
Blue Sea 65A 8-Circuit Terminal Block
Closed-Back Insulated Base with Nickel-Plated Brass Screw Terminals
Regular price
$40.16
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Power Distribution and Isolated Circuit Management
Engineered for Marine, Automotive, and Off-Grid Electrical Systems
Managing multiple electrical connections in demanding environments requires components that prioritise safety, conductivity, and structural integrity. This 65A 8-circuit terminal block is specifically designed to organise complex wiring harnesses while maintaining strict electrical isolation. Whether you are outfitting a marine vessel, upgrading a 4WD dual battery setup, or building a custom caravan power system, this heavy-duty terminal block provides a secure and structured point for power distribution.
Unlike standard uninsulated junction blocks that rely on the mounting surface for isolation, this unit features a fully closed-back design. This completely insulates live power from the mounting panel, significantly reducing the risk of accidental short circuits when installing onto metal chassis, aluminium boat hulls, or conductive electrical enclosures.
Superior Material Construction and Safety Features
Inferior grade terminal blocks often suffer from corrosion, brittle housings, and high-resistance connections that generate excess heat under load. Blue Sea Systems addresses these vulnerabilities by utilising marine-grade materials engineered for longevity in harsh Australian conditions. The conductive contacts and terminal screws are manufactured from nickel-plated brass, offering exceptional resistance to corrosion in high-moisture and salt-air environments while maintaining optimal electrical conductivity up to its 65A maximum current rating.
The black insulated housing is moulded with high insulating barriers between each of the eight positions. These physical walls prevent wire strands or ring terminals from shifting and making accidental contact with adjacent circuits, a crucial risk reduction measure in high-vibration mobile and marine applications.
Key Features and Benefits
- 65A Continuous Rating: Supports substantial electrical loads, making it suitable for primary accessory feeds and heavy-duty branch circuits.
- Closed-Back Insulated Base: Completely isolates electrical connections from the mounting surface, allowing safe installation directly onto metal panels and conductive bulkheads.
- 8 Isolated Screw-Pair Circuits: Each screw pair functions as an independent circuit, allowing clean point-to-point wiring consolidation and straightforward troubleshooting.
- Nickel-Plated Brass Hardware: Resists corrosion in marine and coastal environments, preventing voltage drop and thermal build-up over time.
- High Insulating Barriers: Deep dividing walls physically separate adjacent terminals to prevent accidental shorting during installation or vehicle movement.
- Configurable Common Circuits: Compatible with terminal block jumpers, allowing installers to easily link adjacent positions to create custom common bus distributions where required.
- Secure Surface Mounting: Features integrated, pre-drilled mounting holes at both ends of the block for fast, rigid installation into switchboards or electrical cabinets.
Versatile Applications Across Mobile and Industrial Setups
The modular nature of an 8-circuit barrier strip makes it an indispensable component for tidy, professional-grade wiring. Because each screw pair is isolated, you can run positive and negative feeds, signal wires, and switched circuits through the same block without cross-interference. Furthermore, by adding optional jumpers, you can effortlessly bridge multiple terminals to split a single incoming power feed out to several smaller accessories.
This terminal block is ideally suited for:
- Consolidating console and helm wiring in marine vessels and yachts
- Organising 12V and 24V accessory circuits in caravans, camper trailers, and motorhomes
- Creating clean, serviceable junction points in 4WD canopy setups
- Industrial control panels, switchboards, and off-grid solar telemetry wiring
Upgrade Your Electrical Installation
Eliminate messy wiring splices and reduce the risk of electrical faults in your system. Integrate the Blue Sea 65A 8-Circuit Terminal Block into your next marine, automotive, or off-grid power build for a cleaner, safer, and more reliable electrical layout.
SKU: BS-2608B
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product type | Terminal block |
| Maximum current | 65A |
| Number of positions | 8 |
| Design | Closed back; insulates power from the mounting surface |
| Circuit arrangement | Each screw pair is one isolated circuit |
| Jumpers | Allow creation of common circuits |
| SKU: | BS-2608B |
| Model #: | BS-2608B |
| MPN: | BS-2608B |
| Package weight: | 0.18 kg |
| Package length: | 0.15 m |
| Package width: | 0.05 m |
| Package height: | 0.04 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
