Blue Sea 65A 4-Circuit Terminal Block

Closed-Back Insulated Base with Stainless Steel Screw Terminals


Regular price $19.56
/
Availability: In Stock at Blue Sea Warehouse Allow up to 7 days before dispatch
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

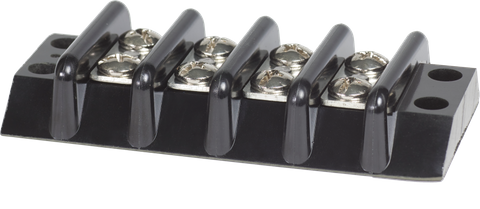

Four-circuit terminal block with black insulated base and eight stainless steel screw terminals

Blue Sea 65A 4-Circuit Terminal Block

DESCRIPTION

Reliable Power Distribution and Isolated Circuit Management

Closed-Back Electrical Terminal Block for Marine, Caravan, and Off-Grid Systems

Organising complex wiring harnesses in mobile, marine, and off-grid installations requires hardware that prioritises both electrical isolation and physical durability. The Blue Sea 65A 4-Circuit Terminal Block provides a secure, structured point for terminating and distributing wiring across four distinct circuits. Rated for a maximum current of 65A, this heavy-duty distribution block is engineered to replace messy, unreliable inline splices and overcrowded battery terminals with a clean, serviceable layout.

In high-vibration environments like 4WDs, caravans, and marine vessels, unorganised wiring can quickly lead to chafing, voltage drop, or dangerous short circuits. By consolidating your connections onto a dedicated terminal strip, you simplify system diagnostics, streamline future upgrades, and significantly improve the overall safety of your low-voltage DC or AC electrical setup.

Engineered for Electrical Safety and Mounting Flexibility

A standout feature of this Blue Sea Systems terminal block is its fully closed-back design. Standard open-back blocks can expose live conductive components to the mounting substrate, creating a severe short-circuit risk if installed on aluminium boat hulls, steel vehicle chassis, or conductive cabinetry. The solid insulated base completely separates the electrical connections from the mounting surface, allowing you to mount the block directly onto metal panels with confidence.

Furthermore, the high-grade black insulated base features deeply moulded protective barriers between each terminal pair. These physical dividers prevent wire strands or ring terminals from shifting and making accidental contact with adjacent circuits, mitigating the risk of cross-circuit shorts during installation or rough transit.

Key Features and Benefits

  • Four Isolated Circuits: Each of the four screw pairs forms an independent, isolated circuit, allowing you to manage different loads, signal wires, or voltage paths on a single compact footprint.
  • Closed-Back Insulated Base: Eliminates the risk of power bridging to the mounting surface, making it safe for direct installation on metal bulkheads and vehicle bodies.
  • 65A Maximum Current Rating: Capable of handling substantial electrical loads across marine, automotive, and industrial applications.
  • Corrosion-Resistant Hardware: Equipped with eight robust stainless steel screw terminals designed to maintain clamping force and resist corrosion in harsh coastal and humid environments.
  • Moulded Protective Barriers: Integrated walls between terminal pairs protect against accidental terminal rotation and shorting.
  • Configurable with Jumpers: Compatible with terminal block jumpers to easily bridge adjacent screw pairs and create common positive or negative distribution bus points when required.
  • Integrated Mounting Holes: Pre-moulded holes at either end of the block allow for straightforward, secure fastening to flat surfaces.

Versatile Applications Across Marine and Automotive Setups

Unlike standard hardware store connectors that can degrade under thermal cycling or moisture exposure, Blue Sea Systems components are purpose-built for demanding environments. Each screw pair acts as a dedicated junction, making this 4-circuit block ideal for a wide variety of electrical tasks:

  • Marine Switch Panels: Creating neat, accessible termination points behind the helm for navigation lights, bilge pumps, and cabin accessories.
  • Caravan and RV 12V/24V Systems: Consolidating lighting circuits, water pump feeds, and appliance wiring inside electrical lockers.
  • 4WD Canopy Fit-Outs: Managing auxiliary battery distribution, compressor triggers, and work light relays without cluttering the main fuse box.
  • Industrial Control Cabinets: Providing clear separation for sensor wiring, relay triggers, and low-voltage control loops.

Upgrade Your Wiring Standards

Whether you are building a new dual-battery canopy from scratch or tidying up an existing boat helm, the Blue Sea 65A 4-Circuit Terminal Block delivers the structural integrity and electrical isolation needed for a professional-grade finish. Add this terminal block to your toolkit today to build a safer, cleaner, and more maintainable electrical system.


SKU: BS-2604B

SPECIFICATIONS

SpecificationDetails
Maximum current65A
Number of circuits4
DesignClosed back; insulates power from the mounting surface
Circuit configurationEach screw pair is one isolated circuit
JumpersAllow creation of common circuits

SKU: BS-2604B
Model #: BS-2604B
MPN: BS-2604B
HS code: 8536904000
Country of origin: MX
Package weight: 0.12 kg
Package length: 0.12 m
Package width: 0.05 m
Package height: 0.04 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
