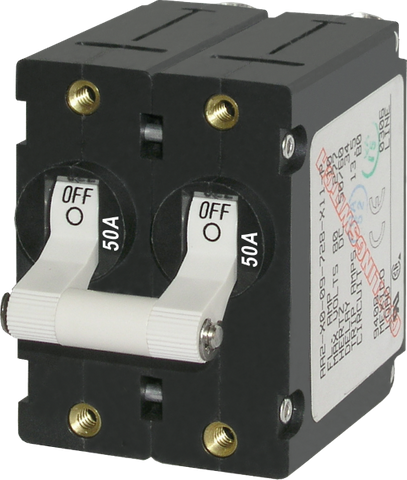

Blue Sea 50A A-Series Double Pole Toggle Circuit Breaker White
Blue Sea 50A A-Series Double Pole Toggle Circuit Breaker White
Magnetic-Hydraulic Protection - Trip-Free Design - ABYC & UL Compliant

DESCRIPTION
Integrated Magnetic-Hydraulic Circuit Protection and Switching
The Blue Sea A-Series 50A Double-Pole Toggle Circuit Breaker (BS-7242B) offers a dependable solution for complex electrical systems, combining manual switching and overcurrent circuit protection into a single panel-mounted device. Engineered specifically as the industry standard for Blue Sea Systems electrical panels, this unit streamlines dashboard and switchboard layouts by eliminating the need for separate switches and fuse holders.
Featuring linked white toggles, the double-pole configuration allows for the simultaneous switching and isolation of two circuits. In AC main circuit protection applications, it safely breaks both the active (hot) and neutral lines at the same time. If an overcurrent fault occurs on either pole, the internal mechanism trips both poles simultaneously, providing comprehensive safety for onboard or off-grid electrical infrastructure.
Superior Magnetic-Hydraulic Design
Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, this A-Series breaker utilises a precision magnetic-hydraulic operating mechanism. Standard thermal units can suffer from nuisance tripping when installed in hot engine bays, canopies, or enclosed electrical cabinets. Because a magnetic-hydraulic breaker responds only to actual current draw rather than ambient temperature fluctuations, it delivers consistent, predictable 50A protection regardless of the surrounding environment.
Engineered for Safety and Compliance
When managing high-amperage DC or AC distribution, mitigating fire and equipment risks is critical. This breaker incorporates a mechanical trip-free design, meaning the contacts cannot be manually held in the ON position while a fault current is present. Even if the toggle actuator is physically held or blocked, the internal mechanism will disengage to interrupt the fault, protecting downstream wiring and appliances from severe thermal damage.
- Dual Functionality: Combines heavy-duty 50A circuit protection and manual ON/OFF switching in one compact unit.
- Simultaneous Double-Pole Action: Mechanically linked white toggles break both poles together for safe AC main isolation or dual-circuit management.
- Temperature-Stable Operation: Magnetic-hydraulic design prevents derating or false tripping in high-temperature marine and automotive environments.
- Trip-Free Safety Mechanism: Internal contacts disengage during an overload even if the toggle is held in the ON position.
- Secure Panel Mounting: Built with robust brass threaded inserts for reliable integration into custom dashboards and distribution panels.
- Global Compliance: Meets rigorous international safety standards including ABYC, UL 1077, TUV, CE, and CSA certifications.
Ideal Applications
Built to withstand harsh marine and mobile conditions, the BS-7242B is widely trusted by marine electricians, caravan builders, and off-grid system integrators. Its compliance with American Boat and Yacht Council (ABYC) standards makes it a preferred choice for boat builders requiring safe AC shore power main breakers or high-capacity DC sub-panel isolation.
- Marine Electrical Panels: Ideal as an AC main circuit breaker to isolate both active and neutral conductors on boats and yachts.
- Caravans, RVs, and Motorhomes: Provides reliable overcurrent protection for 12V, 24V, or 240V AC distribution boards.
- Specialist Service Vehicles: Suits dual-battery systems and inverter-charger setups in commercial trucks and emergency vehicles.
Upgrade Your Electrical Panel
Ensure your electrical distribution system is protected by industry-compliant hardware. Add the Blue Sea A-Series 50A Double-Pole Circuit Breaker to your panel build for reliable, temperature-stable circuit protection and effortless switching.
SKU: BS-7242B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7242B |
| Model #: | BS-7242B |
| MPN: | BS-7242B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 0.24 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.09 m |
