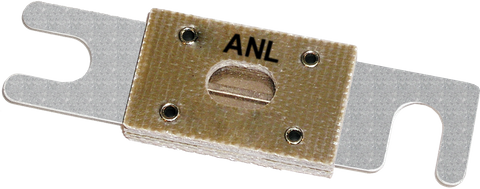

Blue Sea 500A ANL Fuse
Blue Sea 500A ANL Fuse
Silver-Plated Blades & Clear Viewing Window for High-Current DC
Regular price
$49.42
Availability:
In Stock at Blue Sea Warehouse
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty 500A Circuit Protection for High-Amperage DC Systems
Engineered for Marine, Caravan, and Off-Grid Power Setups
The Blue Sea 500A ANL Fuse provides dependable overcurrent protection for demanding high-amperage DC electrical systems. Designed specifically for integration with ANL fuse blocks, this heavy-duty fuse safeguards critical power cabling and high-draw components against short circuits and severe electrical overloads. Whether you are wiring a high-capacity inverter in a caravan, managing a large battery bank in an off-grid solar installation, or protecting primary circuits on a marine vessel, this 500A ANL fuse delivers consistent, professional-grade performance.
In high-current 12V, 24V, and 48V DC architectures, inadequate circuit protection can lead to catastrophic equipment damage, voltage drops, or thermal hazards. Unlike unbranded alternatives that may suffer from inconsistent trip curves or poor mechanical construction, Blue Sea Systems engineers their circuit protection to meet stringent industry standards. This reduces the risk of nuisance blowing under normal surge loads while ensuring rapid, predictable interruption during a genuine fault condition.
Corrosion-Resistant Construction and High Conductivity
Harsh mobile and marine environments expose electrical connections to moisture, salt spray, and continuous vibration. To combat premature degradation, this ANL fuse features silver-plated connector blades crafted from high-conductivity copper. The specialised plating actively resists atmospheric and galvanic corrosion, maintaining a low-resistance connection over the lifespan of your system. By minimising contact resistance at the terminal interface, the fuse helps prevent localised heat build-up and unwanted voltage drop across your main battery or inverter lines.
Durable Design with Rapid Fault Identification
Constructed with a robust, mica-reinforced fibreglass insulating body, the fuse is built to withstand the high thermal stresses associated with heavy electrical loads. The fork terminal geometry allows for straightforward installation and secure bolted connections within standard ANL fuse holders.
Troubleshooting electrical faults in tight battery compartments or complex distribution panels is simplified thanks to the integrated clear viewing window. This inspection window provides an immediate, visible indication of a blown fuse condition, allowing technicians and system owners to verify circuit status at a glance without needing to remove the fuse or test for continuity with a multimeter.
- 500A Current Rating: Suited for protecting large DC-to-AC inverters, high-output alternators, bow thrusters, and main battery bank feeds.
- Corrosion-Resistant Blades: Silver-plated copper fork terminals ensure maximum conductivity and long-term durability in marine and mobile environments.
- Clear Inspection Window: Provides instant visual confirmation of a blown element for faster system diagnostics.
- Heat-Resistant Body: Mica-reinforced fibreglass housing offers superior structural integrity and thermal stability under heavy loads.
- Standard ANL Footprint: Designed for seamless compatibility with Blue Sea Systems ANL fuse blocks and other standard ANL holders.
Ideal Applications for 500A ANL Fuses
High-amperage ANL fuses are an essential safety component in modern auxiliary power systems. This 500A model is frequently specified for:
- Primary overcurrent protection for high-wattage 12V, 24V, and 48V inverters
- Main battery cable protection in caravan, RV, and 4WD dual-battery setups
- Marine electrical distribution systems, including windlasses and thruster circuits
- Off-grid solar energy storage interconnections and heavy-duty DC busbars
Secure Your High-Current Electrical System
Protect your valuable inverters, cabling, and battery banks against damaging electrical faults. Add the Blue Sea 500A ANL Fuse to your system configuration today to ensure safe, compliant, and reliable DC circuit protection.
SKU: BS-5137B
SPECIFICATIONS
| Product type | Fuse |
|---|---|
| Fuse type | ANL |
| SKU: | BS-5137B |
| Model #: | BS-5137B |
| MPN: | BS-5137B |
| HS code: | 8536100040 |
| Country of origin: | MX |
| Package weight: | 0.03 kg |
| Package length: | 0.08 m |
| Package width: | 0.03 m |
| Package height: | 0.01 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
