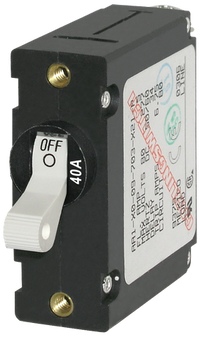

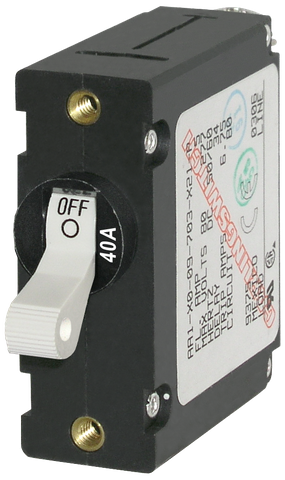

Blue Sea 40A A-Series Single Pole Toggle Circuit Breaker - White
Blue Sea 40A A-Series Single Pole Toggle Circuit Breaker - White
40A Magnetic Hydraulic - Trip-Free Design - White Toggle Switch
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Magnetic Hydraulic Circuit Protection and Switching for Marine and Off-Grid Panels
The Blue Sea A Series Circuit Breaker, Double Pole is an industry-standard solution engineered to combine dependable switching and precise overcurrent protection into a single, compact device. Designed specifically for demanding marine, RV, and off-grid electrical panels, this 40A double pole circuit breaker is widely selected by electrical installers and system builders for AC main circuit protection and high-demand distribution applications.
By integrating both functions, it eliminates the need for separate switches and fuse holders, streamlining your switchboard layout and reducing potential points of failure in critical wiring systems. Please note that while the actuator is marked for 40A, the supplied technical specifications do not explicitly state the operational voltage ratings, so always verify the marked ratings on the breaker housing against your specific system requirements prior to installation.
Why Choose a Magnetic Hydraulic Design?
Unlike standard thermal breakers that rely on heat to trigger a response, a magnetic hydraulic circuit breaker operates using a current-sensing coil and a mechanically damped hydraulic core. This advanced internal mechanism ensures that the trip point remains largely unaffected by ambient temperature fluctuations.
In Australian conditions, where engine bays, boat cabins, and caravan electrical lockers regularly experience extreme heat, standard thermal units can suffer from nuisance tripping at currents well below their rated capacity. Conversely, in cold environments, they may take too long to trip. The magnetic hydraulic architecture solves this problem by responding strictly to actual current draw, providing consistent, reliable overcurrent protection regardless of the surrounding climate.
Dual-Pole Safety and Trip-Free Fault Response
In marine AC shore power systems, inverter outputs, and isolated power grids, safety regulations and best practices often require breaking both the active (hot) and neutral conductors simultaneously. This double pole toggle breaker achieves this via an internally linked mechanism. If an overload occurs on either line, both poles trip immediately, ensuring complete isolation of downstream appliances and significantly reducing the risk of shock hazards caused by reverse polarity or fault currents on the neutral line.
Furthermore, the unit incorporates a specialised trip-free design. This vital safety feature ensures that the internal contacts cannot be manually held in the ON position while a fault current condition exists. Even if the white toggle switch is physically restrained, the internal mechanism will release and interrupt the circuit, protecting your cabling and equipment from severe thermal damage.
Key Features and Benefits
- 40A Double-Pole Configuration: Simultaneously breaks two poles (such as AC active and neutral) for comprehensive circuit isolation.
- Combined Switching and Protection: Acts as both a heavy-duty master switch and an overcurrent protector, saving valuable panel space.
- Temperature-Stable Operation: Magnetic hydraulic mechanism resists nuisance tripping in hot engine rooms or enclosed battery canopies.
- Trip-Free Safety Mechanism: Cannot be forced to remain closed during an active electrical fault, mitigating fire and equipment risks.
- Panel-Ready Construction: Features an ergonomic white toggle actuator with high-visibility markings and threaded brass mounting inserts for secure switchboard integration.
- Global Marine & Industrial Compliance: Meets strict ABYC standards, is UL 1077 recognised, TUV certified, CE marked for Europe, and CSA certified for Canada.
Engineered for Harsh Environments
Every component of the Blue Sea Systems A-Series range is built to withstand the rigours of mobile and marine environments. The durable housing houses robust internal contacts, while the front face features threaded brass inserts for secure panel mounting that resists vibration and mechanical stress. With clear OFF and amperage markings on the white toggle switch, system status can be identified at a glance in dimly lit cabins or utility bays.
Upgrade Your Electrical Panel Protection
Ensure your AC main distribution or heavy-duty off-grid circuits are protected by proven, standards-compliant hardware. Add the Blue Sea A Series Double Pole 40A Circuit Breaker to your build today for safe, integrated switching and fault protection.
SKU: BS-7226B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| Pole configuration | Double pole |
| Standards / compliance | Meets ABYC standards; UL 1077 recognized; TUV certified; CE marked for Europe; CSA certified for Canada |
| SKU: | BS-7226B |
| Model #: | BS-7226B |
| MPN: | BS-7226B |
| Package weight: | 0.36 kg |
| Package length: | 0.14 m |
| Package width: | 0.1 m |
| Package height: | 0.09 m |
