Blue Sea 40A A-Series Single Pole Toggle Circuit Breaker - Black

Magnetic Hydraulic Trip-Free Switch & Circuit Protection for Panels


Regular price $32.95
/
Availability: Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

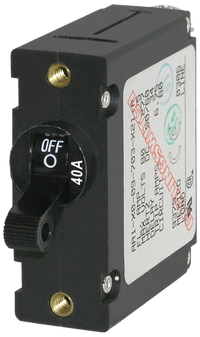

Blue Sea A-Series 40A single-pole toggle circuit breaker in black

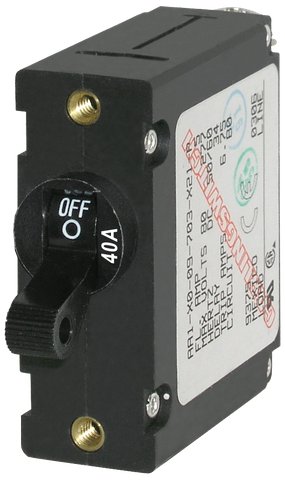

Blue Sea 40A A-Series Single Pole Toggle Circuit Breaker - Black

DESCRIPTION

Magnetic Hydraulic Switching and Overcurrent Protection

The Blue Sea A-Series 40A Single-Pole Toggle Circuit Breaker combines manual switching and precise overcurrent protection into one compact, panel-mounted device. Engineered as the industry-standard electrical switch for marine, RV, and off-grid power distribution boards, this breaker eliminates the need for separate switches and fuse holders. By consolidating your electrical layout, it reduces wiring complexity, minimises potential failure points, and saves valuable dashboard or control panel space.

Why Choose a Magnetic Hydraulic Circuit Breaker?

Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, this Blue Sea A-Series unit utilises a magnetic hydraulic mechanism. Standard thermal breakers can suffer from nuisance tripping in hot engine bays, canopies, or sun-exposed marine cabins because ambient heat lowers their trip threshold. A magnetic hydraulic breaker only responds to actual current flow through the coil, ensuring consistent 40A trip accuracy regardless of surrounding ambient temperatures.

Built for Safety: Trip-Free Design

Safety is critical when managing high-current 12V, 24V, or AC electrical systems. This unit features a specialised trip-free internal mechanism. In the event of a dangerous short circuit or sustained overcurrent fault, the breaker will trip internally even if the external toggle actuator is manually held or wedged in the ON position. This prevents catastrophic wire overheating, insulation melting, and potential electrical fires.

Key Features and Benefits

  • Dual-Function Design: Combines manual circuit switching and 40A overcurrent protection into a single reliable component.
  • Magnetic Hydraulic Mechanism: Provides temperature-stable trip performance, avoiding nuisance trips in high-heat environments.
  • Trip-Free Operation: Ensures the circuit cannot be manually forced closed during an active fault current condition.
  • High-Visibility Status: Features an ergonomic black toggle actuator with a clear visual OFF marking and a high-contrast 40A rating marker for immediate circuit identification.
  • Secure Panel Mounting: Built with threaded brass mounting inserts for straightforward, vibration-resistant installation into switch panels and distribution boards.

Ideal Applications

Designed to meet stringent electrical standards, the BS-7224B is well suited for a wide variety of demanding DC and AC distribution setups:

  • Marine Vessels: Main or branch circuit control in boat switch panels, bilge systems, and cabin power boards.
  • Caravans and Motorhomes: Protecting 12V and 24V house battery circuits, lighting arrays, and high-draw appliances.
  • 4WD and Canopy Fit-Outs: Reliable circuit management for dual-battery systems, air compressors, and auxiliary power hubs.
  • Off-Grid and Industrial Panels: Custom control boxes and remote power enclosures requiring dependable switching and resettable protection.

Upgrade Your Electrical Panel Protection

Integrate the Blue Sea A-Series 40A Single-Pole Toggle Circuit Breaker into your next marine, caravan, or custom switchboard build for dependable, resettable circuit control.


SKU: BS-7224B

SPECIFICATIONS

SpecificationValue
Product typeCircuit breaker

SKU: BS-7224B
Model #: BS-7224B
MPN: BS-7224B
Package weight: 0.42 kg
Package length: 0.11 m
Package width: 0.1 m
Package height: 0.1 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
