Blue Sea 360 Panel System Blank Panel Module for VSM 422
Blue Sea 360 Panel System Blank Panel Module for VSM 422
1x1 Modular Mounting Bezel for Marine & RV Switchboards (Monitor Excl)
Regular price
$128.70
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Seamless Integration for the Vessel Systems Monitor VSM 422

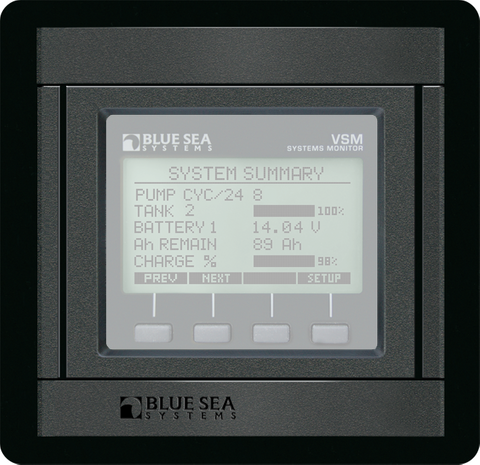

The Blue Sea 1519B is a dedicated 1 x 1 mounting module engineered to integrate the Vessel Systems Monitor (VSM 422) directly into a Blue Sea 360 Panel System. For marine, caravan, and off-grid electrical installations that utilise the modular 360 architecture, this blank panel component provides a factory-grade, flush-mount housing for your monitoring display. By using a purpose-built module rather than custom-cutting standard switchboard materials, installers can maintain structural integrity and a cohesive, professional aesthetic across the entire electrical distribution dashboard.
Key Features and System Benefits
- Precision VSM 422 Cutout: Pre-configured to house the Blue Sea VSM 422 monitor securely, eliminating the need for manual routing or cutting of fragile panel substrates.
- Standard 1 x 1 Footprint: Occupies a single module space within any standard Blue Sea 360 Panel System frame, allowing flexible positioning alongside AC/DC circuit breakers, switches, and gauges.
- OEM Aesthetic Match: Finished in the signature textured black surface of the 360 Panel series to ensure visual continuity across custom marine and RV switchboards.
- Modular Expandability: Supports future system upgrades by allowing the VSM 422 to be relocated or swapped within the panel grid as power monitoring requirements evolve.
- Vibration-Resistant Mounting: Engineered to hold the display unit firmly in place, reducing the risk of panel rattling or loosening in high-vibration mobile and marine environments.
Why Choose a Dedicated 360 Panel Mounting Module?
When building or upgrading a complex 12V, 24V, or AC electrical control centre on a boat or off-grid vehicle, integrating digital displays alongside traditional circuit breakers often results in mismatched bezels and uneven cutouts. Relying on unbranded mounting brackets or hand-cut panels can compromise the mechanical strength of the switchboard and leave unsightly gaps around the display screen.
The BS-1519B solves this installation challenge by acting as a direct mechanical bridge between the VSM 422 and the 360 Panel frame. Because the 360 Panel System is designed around a standardised grid, this 1 x 1 module drops directly into the frame hardware. It aligns the VSM 422's backlit LCD and navigation buttons perfectly with adjacent modules, ensuring easy readability and ergonomic access to real-time battery voltage, capacity, and tank level data.
Important Installation Note
Please note that this product is the physical 1 x 1 mounting bezel and blank module only. The Blue Sea VSM 422 Vessel Systems Monitor digital display unit and the outer 360 Panel System mounting frame are not included and must be sourced separately to complete the assembly.
Applications in Marine and Mobile Electrical Systems
Designed to meet the rigorous demands of marine electrical engineering, this mounting accessory is ideal for:
- Custom marine helm dashboards and below-deck electrical distribution panels
- Caravan, motorhome, and camper trailer central power management hubs
- Specialist service vehicles and mobile command units requiring integrated system monitoring
- Retrofitting a VSM 422 monitor into an existing Blue Sea 360 Panel installation
Complete Your Custom Electrical Panel
Streamline your switchboard layout and achieve a clean, factory-finished look for your monitoring hardware. Add the Blue Sea 1519B 360 Panel Module to your build today to ensure a secure, professional fit for your VSM 422 display.
SKU: BS-1519B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Blank panel module |
| Product range | 360 Panel System |
| Compatible model | VSM 422 |
| Function | Mounting accessory |
| SKU: | BS-1519B |
| Model #: | BS-1519B |
| MPN: | BS-1519B |
| Package weight: | 0.12 kg |
| Package length: | 0.12 m |
| Package width: | 0.12 m |
| Package height: | 0.03 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
