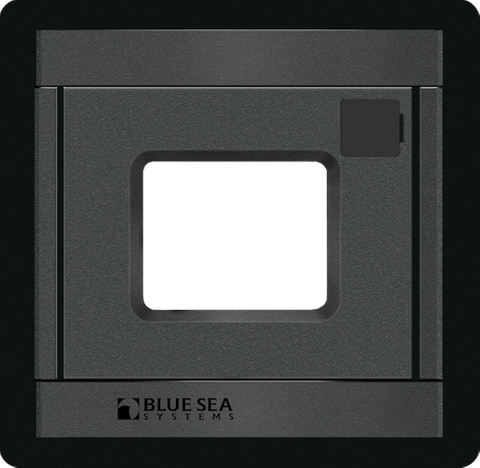

Blue Sea 360 Panel for 185-Series and 285-Series Circuit Breakers
Blue Sea 360 Panel for 185-Series and 285-Series Circuit Breakers
Modular UV-Stabilised Matte Black Bezel with Integrated Label Recess
Regular price
$218.28
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Modular Circuit Breaker Mounting Solution for the 360 Panel System
Achieving a clean, organised, and professional electrical installation requires more than just reliable wiring; it demands a well-engineered mounting interface. The Panel 360 for 185-Series and 285-Series Circuit Breakers is a purpose-built modular bezel designed to integrate seamlessly into the Blue Sea Systems 360 Panel System. Whether you are outfitting a marine vessel, a custom 4WD canopy, a caravan, or an off-grid power cabinet, this mounting panel provides a secure, factory-grade finish for your high-amperage circuit protection devices.
Precision Fit and Modular Integration
Installing heavy-duty thermal circuit breakers into custom dashboards or switchboards often involves tedious template cutting and results in exposed fasteners or uneven edges. This modular panel eliminates the guesswork by featuring a precision-moulded central aperture specifically sized for panel mount 185-Series and 285-Series circuit breakers. As part of the versatile 360 Panel System, it locks neatly into standard modular framing, allowing system builders to combine high-current DC circuit protection right alongside switches, gauges, and 12V or 24V power sockets within a unified layout.
Engineered for Harsh Marine and Automotive Environments
Electrical panels in mobile and marine applications are constantly exposed to vibration, temperature fluctuations, and harsh sunlight. Constructed with a durable, UV-stabilised black textured bezel, this mounting module resists fading, cracking, and degradation over time. The matte finish minimises glare on boat helms and vehicle dashboards while concealing minor scuffs and fingerprints. Furthermore, an integrated label recess sits directly above the breaker cutout, providing a dedicated slot for clear circuit identification and functional labelling. This ensures operators can quickly identify critical circuits such as winches, inverters, windlasses, or auxiliary battery links during emergencies or routine maintenance.
Key Features and Benefits
- Direct Compatibility: Pre-cut central aperture engineered specifically for 185-Series and 285-Series panel mount thermal circuit breakers.
- 360 Panel System Ready: Modular footprint integrates cleanly with standard 360 System frames for scalable, custom switchboard builds.
- Dedicated Label Recess: Built-in slot accommodates standard square system labels for unambiguous circuit identification.
- Durable Textured Finish: UV-stabilised matte black construction withstands demanding marine, RV, and off-road conditions without degrading.
- Streamlined Installation: Eliminates complex custom fabrication and conceals mounting hardware for a neat, professional appearance.
Why Upgrade from Standard Mounting Methods?
Relying on makeshift brackets or unreinforced sheet metal cutouts can lead to loose components, vibration-induced wear on heavy battery cables, and confusing electrical layouts. By utilising a dedicated 360 System mounting module, you reduce the risk of accidental misoperation through clear labelling and ensure your circuit breaker remains rigidly supported when operating the manual reset lever or trip button. Please note that this product includes the modular mounting bezel only; compatible panel mount circuit breakers and system labels are selected separately to match your specific amperage and circuit requirements. Always verify that your breaker is a panel mount variant rather than a surface mount model prior to installation.
Complete Your Custom Electrical Panel
Select the Panel 360 mounting module today to bring clean organisation, dependable structural support, and a professional finish to your 185-Series or 285-Series circuit breaker installation.
SKU: BS-1477B
SPECIFICATIONS
Specifications
| Main product or range | 185-Series and 285-Series Panel Mount Circuit Breakers |
|---|---|
| Base product type | panel |
| Compatible models | 185-Series |
| Compatible models | 285-Series |
| SKU: | BS-1477B |
| Model #: | BS-1477B |
| MPN: | BS-1477B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 0.144 kg |
| Package length: | 0.16 m |
| Package width: | 0.11 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
