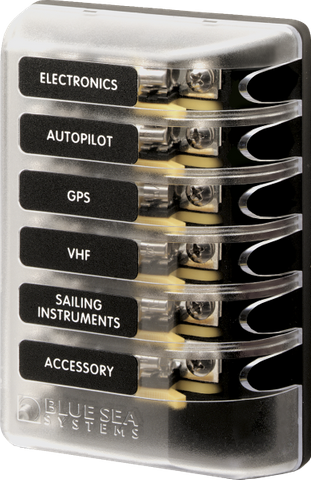

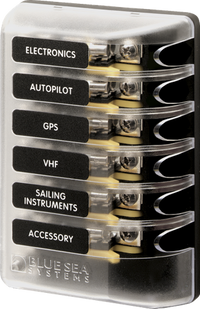

Blue Sea 30A Per Circuit 6-Circuit 3AG Glass Fuse Block with Clear Insulating Cover
Blue Sea 30A Per Circuit 6-Circuit 3AG Glass Fuse Block with Clear Insulating Cover
Tin-Plated Copper Buses & Phosphor Bronze Clips for AGC/MDL Fuses
Regular price
$63.84
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable 3AG Glass Fuse Distribution for Marine and Off-Grid Systems
Managing multiple electrical circuits in demanding environments requires a distribution hub built for longevity and safety. The Blue Sea Systems 6-Circuit 3AG Glass Fuse Block provides a centralised, organised solution for protecting up to six individual branch circuits. Engineered specifically for installations utilising traditional 3AG (approx. 6.3x32mm) glass tube fuses, this block accommodates both AGC fast-acting and MDL time-delay fuses. This versatility allows system designers and installers to tailor overcurrent protection precisely to the requirements of sensitive electronics or high-inrush appliances.
Superior Materials for Harsh Environments
Standard automotive fuse holders often fail prematurely when exposed to moisture, salt spray, and continuous vibration. They typically utilise inferior brass or untreated steel components that corrode rapidly, leading to high resistance, voltage drop, and dangerous heat build-up. This Blue Sea fuse block eliminates these risks by incorporating tin-plated copper buses and phosphor bronze fuse clips.
Tin-plated copper offers maximum conductivity while actively resisting galvanic corrosion in damp marine bilges, boat consoles, and off-grid battery enclosures. Furthermore, the phosphor bronze clips maintain exceptional spring tension over time. Unlike standard clips that lose their grip and cause intermittent power loss or arcing, phosphor bronze ensures a secure, low-resistance mechanical connection across the entire lifespan of the installation.
Key Features and Benefits
- Six Independent Circuits: Supports up to 30A per circuit, ideal for grouping lighting, navigation equipment, pumps, and auxiliary accessories.
- Broad Fuse Compatibility: Accepts AGC (fast-acting), MDL (time-delay), and other standard 3AG glass fuses for customisable circuit protection.
- Corrosion-Resistant Construction: Tin-plated copper busbars and phosphor bronze clips prevent voltage drop and overheating in coastal and high-vibration applications.
- ABYC/USCG Compliant Cover: The clear insulating cover shields all conductive components from accidental short circuits and meets strict marine safety standards.
- Integrated Maintenance Features: Includes dedicated internal storage for spare fuses, easy fuse removal mechanisms, and recessed areas that accept Blue Sea Systems Large Format Labels.
Streamlined Installation and Maintenance
Troubleshooting electrical faults in cramped spaces or low-light conditions can be challenging, particularly when using traditional cylindrical glass fuses that are notoriously difficult to grip and extract. This 6-circuit fuse block is designed with practical serviceability in mind. The clear insulating cover allows for immediate visual inspection of fuse filaments without exposing live terminals to accidental contact with tools or loose wiring.
When a fuse does need replacing, the integrated easy-removal design simplifies extraction, preventing the frustrated prying that often shatters glass tubes. With onboard storage for spare fuses located directly beneath the cover and recessed slots for clear circuit labelling, system maintenance becomes fast and straightforward. Please note that fuses are not included and must be selected based on your specific wire gauge and load requirements.
Upgrade Your Electrical Circuit Protection
Whether you are rewiring a classic vessel, restoring a vintage vehicle, or building a dependable 12V or 24V auxiliary power system for a caravan, this distribution block delivers professional-grade safety and organisation. Add the Blue Sea 6-Circuit 3AG Fuse Block to your setup today to ensure durable, compliant circuit protection.
SKU: BS-5018B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | 3AG glass fuse block |
| Circuits | 6 |
| Maximum current per circuit | 30A |
| Compatible fuses | AGC (fast-acting), MDL (time-delay) and other 3AG glass fuses |
| Bus material | Tin-plated copper |
| Fuse clip material | Phosphor Bronze |
| Cover | Clear insulating cover with label recesses; insulates all conductive parts |
| Other features | Allows labelling, spare fuse storage and easy fuse removal; accepts Large Format Labels |
| Stated compliance | Cover insulation satisfies ABYC/USCG requirements |
| SKU: | BS-5018B |
| Model #: | BS-5018B |
| MPN: | BS-5018B |
| HS code: | 8536908585 |
| Country of origin: | MX |
| Package weight: | 0.264 kg |
| Package length: | 0.16 m |
| Package width: | 0.11 m |
| Package height: | 0.04 m |
