Blue Sea 30A 10-Circuit Terminal Block

Closed-Back Insulated Base with Isolated Screw Pairs & High Barriers


Regular price $19.00
/
Availability: In Stock at Blue Sea Warehouse Allow up to 7 days before dispatch
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

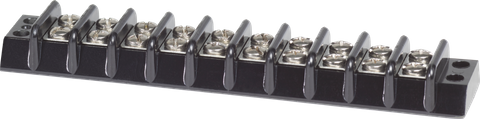

Black 10-circuit terminal block with silver screw terminals and raised isolation barriers

Blue Sea 30A 10-Circuit Terminal Block

DESCRIPTION

Reliable Multi-Circuit Power Distribution for Marine and Off-Grid Systems

Managing multiple electrical feeds in a compact space requires components that prioritise both organisation and safety. The Blue Sea 30A 10-Circuit Terminal Block provides a structured, reliable solution for consolidating wiring in marine vessels, caravans, 4WDs, and custom off-grid setups. Designed to handle up to 30A per circuit, this terminal block allows system builders and auto electricians to neatly terminate, join, or branch up to ten separate wiring lines without relying on messy inline splices or overcrowded battery posts.

Engineered for Electrical Isolation and Safety

A standout feature of this Blue Sea Systems component is its fully closed-back architecture. Unlike open-back alternatives that leave live contacts exposed on the underside, the insulated base completely separates the electrical conductors from the mounting surface. This design reduces the risk of accidental short circuits or ground faults when installing the block directly onto conductive metal bulkheads, aluminium canopies, or steel chassis rails.

On the top side, each of the ten circuits is arranged as an independent screw pair separated by high, moulded isolation barriers. These physical dividers help prevent stray wire strands or shifting ring terminals from bridging adjacent circuits, even in high-vibration environments typical of off-road touring and rough seas.

Key Features and Benefits

  • Closed-Back Insulated Base: Completely isolates live power from the mounting panel, allowing safe installation on metal surfaces without secondary insulation pads.
  • 10 Independent Circuits: Each opposing screw pair forms a dedicated, isolated feed for straightforward point-to-point wiring connections.
  • High-Barrier Moulding: Raised physical barriers between screw terminals minimize the risk of accidental shorting during installation or maintenance.
  • Flexible Configuration: Compatible with terminal block jumpers to easily link adjacent screw pairs and create common positive or negative bus sections.
  • Integrated Mounting Holes: Pre-drilled holes at each end allow for straightforward, secure surface mounting in electrical cabinets, consoles, and lockers.

Why Upgrade from Standard Grade Terminal Blocks?

Substandard terminal blocks often suffer from brittle plastics that crack under tightening torque, or shallow dividers that allow terminals to rotate and touch. The Blue Sea 2510 series is built to withstand demanding mobile and marine environments. By providing a dedicated, robust termination point for each wire, it simplifies fault-finding and future system upgrades—allowing you to test individual circuits with a multimeter or disconnect specific accessories without disturbing the rest of your wiring harness.

Versatile Applications

Whether you are wiring a helm station on a boat, setting up a 12V or 24V control panel in a camper trailer, or organising sensor and lighting feeds in an industrial enclosure, this 10-circuit block delivers clean, serviceable results.

Streamline Your Wiring Layout

Upgrade your electrical installation with a safer, more organised connection layout. Add the Blue Sea 30A 10-Circuit Terminal Block to your project today for professional-grade circuit management across your marine, RV, or off-grid power system.


SKU: BS-2510B

SPECIFICATIONS

SpecificationDetails
Product typeTerminal block
Maximum current30A
Number of circuits10
DesignClosed back; insulates power from the mounting surface
Circuit arrangementEach screw pair is one isolated circuit
JumpersAllow creation of common circuits

SKU: BS-2510B
Model #: BS-2510B
MPN: BS-2510B
HS code: 8536904000
Country of origin: MX
Package weight: 0.18 kg
Package length: 0.2 m
Package width: 0.05 m
Package height: 0.03 m
