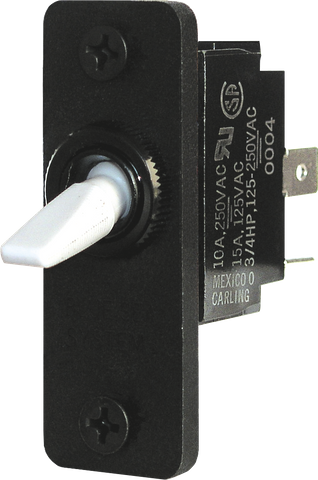

Blue Sea 3-Position Single-Pole Double-Throw (SPDT) Toggle Switch (ON)-OFF-ON
Blue Sea 3-Position Single-Pole Double-Throw (SPDT) Toggle Switch (ON)-OFF-ON
Non-Corrosive Brass & Phenolic - Suits 5/8" (16mm) Breaker Holes

DESCRIPTION
Reliable SPDT Control for Marine and Automotive Panels
The Blue Sea 8207B is a heavy-duty manual toggle switch engineered for complex switching requirements where standard ON-OFF controls fall short. Featuring a Single-Pole Double-Throw (SPDT) configuration and a three-position (ON)-OFF-ON action, it offers both momentary and maintained circuit control in a single unit. Whether you are building a custom marine helm, upgrading an off-grid campervan electrical panel, or managing industrial machinery, this switch delivers consistent, tactile performance.
Unlike standard switches that can leave your panel looking mismatched when combining circuit breakers and non-protected controls, this toggle switch is specifically designed to integrate seamlessly into Blue Sea Systems A-Series toggle circuit breaker panels. Please note that while it matches the form factor of A-Series breakers, this unit is strictly a switching component and does not provide overcurrent circuit protection.
Understanding the (ON)-OFF-ON Switching Sequence
In electrical schematics, parentheses around an action indicate a momentary position. The (ON)-OFF-ON sequence gives you three distinct control states from a single common terminal:
- Momentary (ON): Pushing the white toggle actuator in one direction engages the circuit only while held. Once released, an internal spring returns the lever to the centre OFF position.
- Centre OFF: The neutral resting position where both output circuits are completely disconnected from the power source.
- Maintained ON: Flipping the toggle in the opposite direction locks the switch into place, providing continuous power to the secondary circuit until manually switched off.
This specific dual-function arrangement is essential for equipment requiring both continuous operation and temporary override or priming functions. For instance, in a marine bilge pump installation, the maintained ON position powers the automatic float switch circuit, while the momentary (ON) position allows the operator to manually test or override the pump.
Built for Harsh Marine and Off-Road Environments
Standard automotive switches often succumb to corrosion when exposed to salt spray, high humidity, or condensation, leading to high-resistance connections and eventual failure. The BS-8207B mitigates this risk by utilising a non-corrosive construction of nickel-plated brass and phenolic materials. This robust material selection resists oxidation and ensures reliable electrical conductivity over the lifespan of your vessel or vehicle.
Key Features and Benefits
- Seamless Panel Integration: Fits directly into standard Blue Sea A-Series toggle circuit breaker apertures, ensuring a uniform, professional aesthetic across your dashboard or switchboard.
- Mounting Adapter Included: Supplied with a black mounting plate and recessed screws to suit standard 5/8-inch (approx. 16mm) circuit breaker mounting holes.
- Corrosion-Resistant Materials: Manufactured from nickel-plated brass and high-grade phenolic to withstand moisture-rich marine and coastal environments.
- Quick-Connect Rear Terminals: Equipped with rear blade terminals that allow for rapid, secure wiring terminations using standard female spade connectors.
- Versatile Application Range: Ideal for controlling bilge pumps (Auto-Off-Manual), windscreen wipers, generator starters, horns, and auxiliary engine controls.
Upgrade Your Control Panel with Confidence
Ensure your electrical system operates reliably when you need it most. Integrate the Blue Sea 8207B (ON)-OFF-ON toggle switch into your marine helm, caravan control board, or custom dashboard for dependable, corrosion-resistant circuit switching.
SKU: BS-8207B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Actuator type | Manual toggle |
| Pole configuration | SPDT (single pole, double throw) |
| Number of poles | 1 |
| Number of positions | 3 |
| Switching sequence | (ON)-OFF-ON |
| Mounting / form factor | Panel mount |
| SKU: | BS-8207B |
| Model #: | BS-8207B |
| MPN: | BS-8207B |
| HS code: | 8536509065 |
| Country of origin: | MX |
| Package weight: | 0.048 kg |
| Package length: | 0.15 m |
| Package width: | 0.1 m |
| Package height: | 0.06 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
