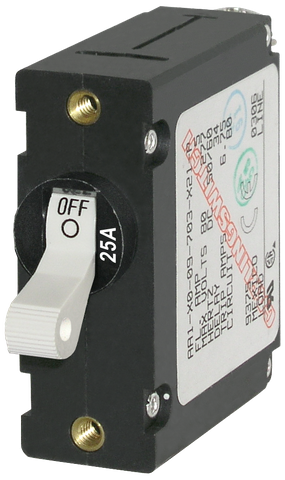

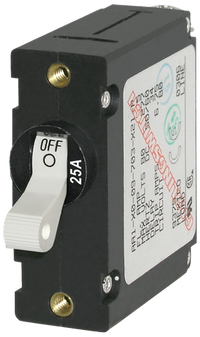

Blue Sea 25A A-Series Single Pole Toggle Circuit Breaker - White
Blue Sea 25A A-Series Single Pole Toggle Circuit Breaker - White
Magnetic Hydraulic Switching & Protection - Trip-Free Design - ABYC/UL
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Magnetic Hydraulic Circuit Protection and Switching
The Blue Sea A-Series 25A Single-Pole Toggle Circuit Breaker delivers industry-standard electrical protection and manual switching in a single, compact device. Designed specifically for integration into Blue Sea Systems electrical panels and custom distribution boards, this dual-function component eliminates the need for separate switches and fuses. Whether you are outfitting a marine vessel, a caravan, an RV, or a specialised off-grid power system, the A-Series provides dependable overcurrent protection for your critical 25A electrical loads.
The Magnetic Hydraulic Advantage
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, this magnetic hydraulic circuit breaker operates using a solenoid coil and a damped hydraulic core. Because its tripping mechanism is driven by magnetic force rather than heat, it is unaffected by high ambient temperatures. In hot engine bays, enclosed marine electrical lockers, or sun-baked caravan canopies, thermal units often suffer from nuisance tripping at currents well below their rating. The Blue Sea A-Series maintains a consistent trip curve regardless of surrounding temperatures, ensuring your equipment operates reliably when you need it most.
Additionally, the internal hydraulic fluid dampens the core movement to provide a controlled time delay. This allows the breaker to tolerate harmless, momentary inrush currents from motors, pumps, or inductive loads without disconnecting, while still reacting instantaneously to dangerous short-circuit faults.
Engineered for Safety with Trip-Free Operation
Safety is paramount in high-energy DC and AC electrical systems. This 25A toggle circuit breaker incorporates a mechanical "trip-free" design. In the event of an electrical overload or direct short circuit, the internal contacts will disconnect even if the white toggle actuator is physically held or wedged in the ON position. This critical safety feature mitigates the risk of cable overheating, insulation damage, and electrical fires by preventing operators from manually overriding a fault condition.
Key Features and Benefits
- Dual-Function Design: Combines heavy-duty manual circuit switching and precise overcurrent protection into one panel-mounted unit.
- Magnetic Hydraulic Mechanism: Provides temperature-stable performance without derating in hot marine or automotive environments.
- Trip-Free Safety Mechanism: Internal contacts cannot be held closed during a fault-current event, protecting wiring and connected appliances.
- Robust Panel Installation: Features integrated brass threaded mounting inserts at the front and reliable rear-facing screw terminals for secure line and load connections.
- Clear Visual Indication: Ergonomic white toggle actuator clearly displays the 25A rating and provides distinct visual and tactile feedback for ON and OFF positions.
- Global Compliance: Meets rigorous international safety standards, including ABYC requirements, UL 1077 recognition, TUV certification, CE marking, and CSA certification.
Ideal Applications for Marine and Off-Grid Systems
The Blue Sea Systems A-Series is widely recognised as the benchmark for panel-mounted circuit protection in demanding environments. Its compact footprint and front-panel mounting hardware make it ideal for:
- Marine AC and DC main or branch distribution panels
- Caravan, camper trailer, and motorhome control boards
- 4WD dual-battery canopies and auxiliary power distribution
- Specialist industrial equipment and off-grid solar enclosures
Upgrade Your Electrical Panel
Protect your wiring harness and appliances with professional-grade components. Add the Blue Sea A-Series 25A Single-Pole Toggle Circuit Breaker to your build today for safe, standards-compliant electrical distribution.
SKU: BS-7218B
SPECIFICATIONS
| Product type | Circuit breaker |
|---|
| SKU: | BS-7218B |
| Model #: | BS-7218B |
| MPN: | BS-7218B |
| Package weight: | 0.42 kg |
| Package length: | 0.12 m |
| Package width: | 0.09 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
