Blue Sea 25A A-Series Single Pole Toggle Circuit Breaker - Black
Blue Sea 25A A-Series Single Pole Toggle Circuit Breaker - Black
Magnetic-Hydraulic Operation & Trip-Free Safety with Brass Inserts
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Magnetic-Hydraulic Switching and Circuit Protection
The Blue Sea A-Series 25A Single-Pole Toggle Circuit Breaker delivers dependable overcurrent protection and manual switching in a single, compact device. Designed for demanding marine, RV, caravan, and off-grid electrical panels, this breaker streamlines your switchboard layout by eliminating the need for separate switches and fuse holders. By combining both functions into one robust mechanism, it reduces wiring complexity, saves valuable panel space, and minimises potential failure points across your electrical system.
Why Magnetic-Hydraulic Technology Matters
Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, the A-Series utilises advanced magnetic-hydraulic operation. Standard thermal protection devices can suffer from nuisance tripping in hot engine bays, sun-exposed canopies, or unventilated electrical cabinets because high ambient temperatures prematurely affect their trip threshold. A magnetic-hydraulic mechanism operates via a magnetic coil and a silicone fluid-damped core, meaning its 25A trip profile remains consistent and unaffected by ambient temperature fluctuations. It responds strictly to actual current flow, providing predictable circuit protection across diverse Australian climates.
Key Features and Benefits
- Dual-Function Design: Combines heavy-duty manual switching and precise 25A overcurrent protection into one integrated panel-mount unit.
- Magnetic-Hydraulic Operation: Delivers consistent, temperature-stable trip performance without derating in high-heat environments.
- Trip-Free Safety Mechanism: Engineered so the internal contacts cannot be held closed manually during an active fault-current condition, protecting wiring and connected appliances from thermal damage.

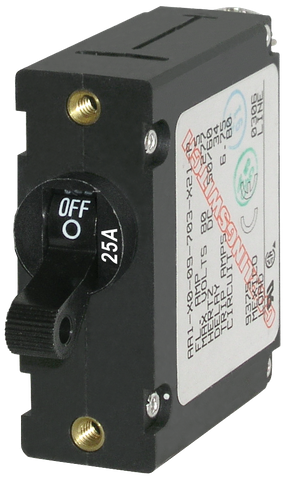

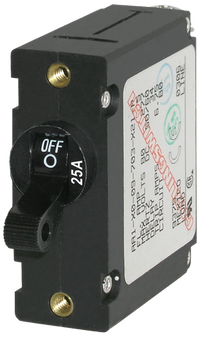

- Ergonomic Toggle Actuator: Features a tactile black toggle handle with high-contrast white OFF markings and a front-facing 25A label for immediate visual status confirmation.
- Secure Panel Mounting: Built with internal threaded brass inserts for straightforward, vibration-resistant installation into custom or pre-fabricated switch panels.
Engineered for Safety and Reliability
In high-vibration mobile applications such as 4WDs, camper trailers, and marine vessels, electrical safety is paramount. The integrated trip-free design is a critical risk-reduction feature. If a short circuit or severe overload occurs, the breaker will trip internally even if the toggle handle is physically held or jammed in the ON position. This prevents operators from accidentally overriding the safety mechanism before the underlying electrical fault is resolved, significantly reducing the risk of melted insulation or electrical fires.
Ideal Applications
With its clean black actuator and industry-standard footprint, this 25A circuit breaker integrates seamlessly into OEM and custom distribution panels. It is widely trusted by marine electricians and mobile power builders for:
- Main and branch circuit distribution panels in boats, yachts, and marine vessels
- 12V and 24V DC control panels in caravans, motorhomes, and camper trailers
- Auxiliary battery systems and canopy power setups in touring 4WDs and service vehicles
- Off-grid solar control boards and industrial equipment enclosures
Upgrade Your Electrical Panel
Equip your distribution board with professional-grade switching and circuit protection. Add the Blue Sea A-Series 25A Single-Pole Toggle Circuit Breaker to your build today for clean, reliable power management across your marine or mobile electrical system.
SKU: BS-7216B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7216B |
| Model #: | BS-7216B |
| MPN: | BS-7216B |
| Package weight: | 0.54 kg |
| Package length: | 0.14 m |
| Package width: | 0.11 m |
| Package height: | 0.11 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
