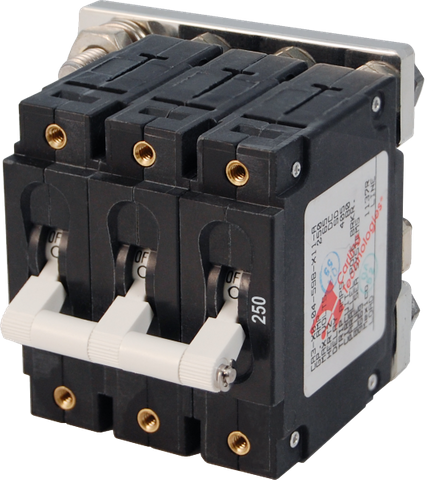

Blue Sea 250A C-Series Triple-Pole Toggle Circuit Breaker
Blue Sea 250A C-Series Triple-Pole Toggle Circuit Breaker
Magnetic Hydraulic Switching & Protection - Terminal Busbar Included
Regular price
$330.50
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
High-Capacity Magnetic Hydraulic Overcurrent Protection and Switching
Engineered for demanding marine, off-grid, and mobile electrical architectures, this 250A circuit breaker delivers reliable circuit switching and overcurrent protection in a single, compact unit. By integrating manual switching directly with the protection mechanism, it eliminates the need for separate isolator switches and fuse holders. This simplifies panel layouts, reduces wiring complexity, and minimises potential points of electrical resistance in high-current distribution networks.
Advanced Magnetic Hydraulic Mechanism
Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, the C-Series utilises a precision magnetic hydraulic mechanism. Standard thermal units can suffer from nuisance tripping when installed in high-temperature environments such as boat engine rooms, enclosed battery compartments, or vehicle canopies. Because a magnetic hydraulic design responds solely to electrical current flow rather than ambient temperature fluctuations, it maintains a consistent and dependable trip curve regardless of environmental heat.
Parallel Pole Design for High-Amperage Loads
To safely manage heavy 250A electrical loads, this triple-pole model utilises a heavy-duty terminal busbar to distribute current across multiple internal poles. The white toggle handle is mechanically bridged, ensuring simultaneous switching and coordinated tripping across all three poles. If an overcurrent fault occurs, the internal mechanism trips instantly even if the toggle is manually held in the ON position, commonly referred to as a trip-free design, safeguarding cabling and connected equipment from severe damage.
Key Features and Hardware Benefits
- Integrated Functionality: Combines heavy-duty manual circuit switching with automatic overcurrent protection in one panel-mounted device.
- Temperature-Stable Operation: Magnetic hydraulic internal structure prevents derating or false tripping caused by high ambient temperatures.
- Mechanically Linked Toggles: Bridged white handle ensures simultaneous disconnection of all three poles during manual operation or fault conditions.
- Heavy-Duty Busbar Connection: Pre-fitted metal terminal plate streamlines high-capacity wire termination and distributes current load evenly.
- Secure Panel Mounting: Integrated brass threaded mounting inserts provide robust mechanical retention on switchboards and distribution panels.
- Trip-Free Safety Mechanism: Internal contacts cannot be held closed manually during an active overcurrent fault, reducing the risk of cable fires and equipment damage.
Ideal Applications
Built to meet the rigorous demands of heavy-duty DC and AC systems, this Blue Sea circuit breaker is suited for high-draw installations where safety and reliability are paramount:
- Main battery bank isolation and overcurrent protection in marine vessels, caravans, and motorhomes
- High-output inverter, inverter-charger, and large DC-DC charger circuits
- Heavy-duty winches, bow thrusters, and windlass systems
- Industrial off-grid solar power distribution boards and commercial vehicle electrical systems
Upgrade Your Electrical Distribution System
Ensure your high-current wiring and appliances are protected with dependable, temperature-independent hardware. Integrate the Blue Sea C-Series 250A Triple-Pole Circuit Breaker into your switchboard or power distribution setup today for streamlined control and critical circuit safety.
SKU: BS-7270B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7270B |
| Model #: | BS-7270B |
| MPN: | BS-7270B |
| Package weight: | 0.48 kg |
| Package length: | 0.11 m |
| Package width: | 0.08 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
