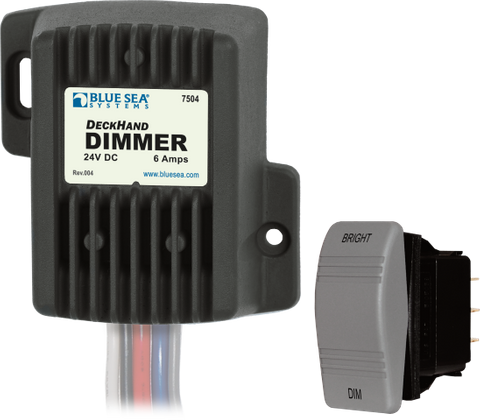

Blue Sea 24V 6A DeckHand Dimmer for Non-Regulated LED, Incandescent and Halogen Lights
Blue Sea 24V 6A DeckHand Dimmer for Non-Regulated LED, Incandescent and Halogen Lights
0-100% Digital Control, Memory Function & Momentary Rocker Switch
Regular price
$147.23
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Precision Digital Dimming for 24V Marine and Off-Grid Lighting
The Blue Sea 24V 6A DeckHand Dimmer offers precise, continuous digital brightness control for 24V lighting systems in marine vessels, motorhomes, and specialised off-grid setups. Unlike basic stepped dimmers or conventional rheostats that waste energy as heat and offer limited adjustment, this digital dimmer varies the output voltage continuously from 0% to 100% of the input voltage. Whether you need full illumination for deck work or ultra-low light levels to preserve night vision at the helm, the DeckHand dimmer provides smooth, flicker-free adjustment across the entire lighting range.
Engineered for versatility, this unit is fully compatible with non-regulated LEDs, incandescent bulbs, and halogen lights up to a 6A load. It comes complete with a dedicated momentary (ON)-OFF-(ON) rocker switch, giving you an out-of-the-box control solution for helm stations, cabin control panels, and canopy setups.
Intelligent Memory and Illuminated Exit Delay
Designed with practical user convenience in mind, the DeckHand dimmer incorporates built-in memory that automatically retains your last brightness setting, even after the main power is switched off. This prevents the frustration of being blinded by 100% brightness when turning cabin or helm lights back on at night. Additionally, the unit features an illuminated exit function with an adjustable time delay. This allows you to safely exit a dark cabin, boat deck, or vehicle interior with the lights remaining on for a set period before automatically shutting down, reducing the risk of trips and falls while preventing accidental battery drain.
Key Features and Benefits
- Continuous 0% to 100% Digital Control: Adjust brightness smoothly across the entire range without fixed steps.
- Broad Lighting Compatibility: Purpose-built for 24V non-regulated LED, incandescent, and halogen lighting circuits up to 6A.
- Last-Setting Memory: Automatically recalls the previous brightness level upon startup to protect night vision.
- Illuminated Exit Function: Features an adjustable time delay that keeps lights on briefly while you exit the area.
- Space-Saving Installation: Offset mounting tabs allow multiple dimmer modules to be mounted closely together in compact electrical lockers.
- Efficient Thermal Management: Housed in a robust enclosure with integrated cooling fins to dissipate heat safely during high-load operation.
- Complete Control Package: Includes a grey momentary (ON)-OFF-(ON) rocker switch and colour-coded flying leads for straightforward wiring integration.
Built for Demanding Electrical Environments
When installing multiple lighting zones in a boat console or caravan electrical cabinet, panel space is often at a premium. The Blue Sea DeckHand dimmer solves this problem with clever offset mounting tabs, allowing you to nest several dimmer modules side-by-side without widening their footprint. Furthermore, inferior dimming controllers often suffer from thermal overload when driving high-wattage halogen or incandescent lamps. The BS-7504B mitigates this risk with an integrated heatsink housing with cooling fins, ensuring reliable thermal management and long-term durability in enclosed spaces.
Please note: This dimmer is designed specifically for non-regulated LED lights, as well as standard incandescent and halogen bulbs. It is not suitable for regulated LED fixtures that contain their own internal voltage drivers.
Upgrade Your 24V Lighting Control
Take full command of your onboard or off-grid lighting environment with dependable digital dimming. Add the Blue Sea 24V 6A DeckHand Dimmer to your system today for seamless, customizable illumination.
SKU: BS-7504B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Dimmer |
| Rated current | 6A |
| Voltage | 24V (AC/DC qualifier not specified) |
| Light compatibility | Non-regulated LED, incandescent and halogen lights |
| Voltage control | Continuous control from 0 to 100% of input voltage |
| Exit | Illuminated, with adjustable time delay |
| Included switch | Momentary (ON)-OFF-(ON) switch |
| Additional feature | Memory for last setting; offset mounting tabs allow dimmers to be mounted close together |
| SKU: | BS-7504B |
| Model #: | BS-7504B |
| MPN: | BS-7504B |
| Package weight: | 0.18 kg |
| Package length: | 0.09 m |
| Package width: | 0.09 m |
| Package height: | 0.08 m |
