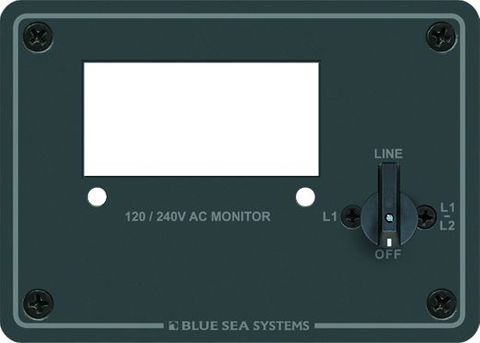

Blue Sea 240VAC Single Panel Digital Meter
Blue Sea 240VAC Single Panel Digital Meter
120V/240V AC Monitoring Panel with 2x CTs (PN 8247 Display Not Included)
Regular price
$386.10
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 120V/240V AC Voltage and Current System Monitoring
Managing multi-line AC power systems requires accurate, accessible data to protect sensitive onboard or off-grid electronics. The Blue Sea 240VAC Single Panel Digital Meter (BS-8410B) is a dedicated mounting and switching solution engineered to streamline the monitoring of 120V and 240V AC electrical systems. Designed for marine vessels, recreational vehicles, and specialised mobile workspaces, this panel consolidates complex line readings into a single, clean interface.
Rather than installing multiple individual gauges across your dashboard or switchboard, this unit utilises an integrated rotary selector switch. This allows operators to seamlessly toggle between different circuit parameters, saving valuable panel space and simplifying behind-the-dash wiring harnesses. Compared to unbranded panel plates, the Blue Sea Systems architecture offers robust structural integrity and clear, durable labelling designed to withstand demanding marine and mobile environments.
Key Features and Monitoring Capabilities
- Comprehensive Voltage Tracking: Easily switch and monitor Line 1 to Neutral, Line 2 to Neutral, or combined Line 1 to Line 2 voltage parameters.
- Dual-Scale Current Measurement: Facilitates accurate monitoring of both 120V and 240V AC current loads across supported circuits.
- Hardware Included: Supplied with two additional Current Transformers (PN 8256) to support multi-line current sensing right out of the box.
- Integrated Rotary Selector: Heavy-duty rotary switch provides positive tactile feedback when cycling through line monitoring positions.
- Precision Cutouts: Features a dedicated display cutout, integrated status indicator ports, and four corner mounting points for secure installation.
Important Compatibility Note: Display Sold Separately
To prevent ordering errors and installation delays, please note that this product is the switching and mounting panel assembly only. It is specifically engineered for integration with the Blue Sea PN 8247 AC Digital Multimeter, which is sold separately and is not included in this package. The precision-machined rectangular cutout on the panel face is sized exclusively to house the PN 8247 digital display unit, while the included PN 8256 current transformers expand the sensing capabilities of the multimeter once paired.
Engineered for Electrical Safety and Reliability
Operating 240V AC systems on a boat or off-grid vehicle introduces significant electrical management requirements. Unmonitored voltage drops, phase imbalances, or current overloads can trip shore power breakers or permanently damage AC appliances such as air conditioners, water heaters, and battery chargers. By integrating the BS-8410B panel with a compatible digital multimeter, system operators gain immediate visibility into incoming shore power, generator output, or inverter performance.
The panel's four-corner mounting layout ensures a vibration-resistant fit into existing Blue Sea modular switchboards or custom-fabricated dashboards. Whether you are upgrading an older analogue gauge setup or designing a new dual-line AC distribution system, this panel provides the professional infrastructure needed for safe power management.
Upgrade Your AC Control Panel
Take the guesswork out of managing your dual-line AC power distribution. Pair this Blue Sea 240VAC monitoring panel and its included current transformers with the PN 8247 Digital Multimeter to complete your custom electrical switchboard today.
SKU: BS-8410B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Panel digital meter |
| System monitoring | 120/240V AC systems |
| Voltage monitoring | Line 1 or Line 2 to Neutral; Line 1 to Line 2 |
| Current monitoring | 120V and 240V currents |
| Intended for use with | PN 8247 AC Digital Multimeter (not included) |
| Included | Two additional Current Transformers PN 8256 |
| SKU: | BS-8410B |
| Model #: | BS-8410B |
| MPN: | BS-8410B |
| Package weight: | 0.36 kg |
| Package length: | 0.18 m |
| Package width: | 0.12 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
