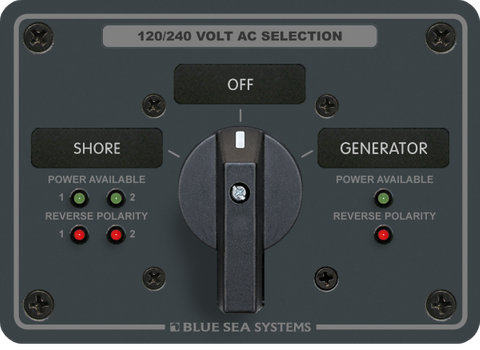

Blue Sea 240VAC 65A Rotary Switch Panel 4 Pole 2 Positions + OFF
Blue Sea 240VAC 65A Rotary Switch Panel 4 Pole 2 Positions + OFF
Dual 120/240V Shore & Generator Switch with Polarity LEDs
Regular price
$1,310.68
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty 240VAC Source Selection for Marine and Off-Grid Power Systems
Managing multiple alternating current power sources safely and efficiently is critical in complex marine, RV, and off-grid electrical installations. The AC Rotary Panel 240VAC 65A OFF + 2 4P provides a reliable, manual switching solution for systems utilising both shore power and an onboard generator, or dual inverter configurations. Designed to handle substantial electrical loads up to 65A, this 4-pole rotary selector panel ensures positive isolation between competing AC inputs, eliminating the risk of accidental back-feeding and equipment damage.
Unlike standard transfer switches that may lack tactile feedback or clear visual diagnostics, this rotary panel offers intuitive operation with distinct positions for Shore, Generator, and Off. It is specifically engineered as a compact source selection solution for installations where primary circuit protection (such as main circuit breakers or residual current devices) is already provided elsewhere in the distribution system.
Key Features and System Benefits
- Dual 120V/240VAC Source Switching: Safely selects between two separate 120V/240VAC sources (such as shore power and a generator) to feed a single downstream AC load circuit.
- 4-Pole Isolation: Simultaneously switches active and neutral lines across dual-phase or split-phase configurations, ensuring complete electrical isolation required by strict marine and off-grid standards.
- Integrated LED Diagnostics: Features green LED indicators to confirm power availability on each input, paired with red reverse polarity LED indicators to alert operators to dangerous wiring faults before engaging the load.
- Marine-Grade Construction: Built from heavy 1/8" (Approx. 3.2mm) 5052 aluminium alloy with a durable two-part polyurethane slate grey finish to resist corrosion in harsh coastal and marine environments.
- High-Capacity Switching: Rated for a maximum continuous amperage of 65A, accommodating high-demand appliances such as air conditioning units, water heaters, and large battery chargers.
Enhanced Safety Through Visual Monitoring
Connecting to unfamiliar shore power pedestals at marinas or caravan parks carries the inherent risk of reverse polarity, where active and neutral conductors are accidentally cross-wired. This fault creates a severe electrocution hazard and can damage sensitive onboard electronics. This AC rotary panel mitigates this risk by incorporating dedicated monitoring LEDs for both the shore and generator inputs. Before turning the heavy-duty rotary selector knob from the OFF position, operators can visually verify that green power is available and ensure the red reverse polarity warning light is not illuminated.
Engineered for Harsh Environments
Constructed from corrosion-resistant 5052-grade aluminium, the faceplate is engineered to withstand the vibration, moisture, and salt-laden air typical of marine vessels and industrial mobile vehicles. The slate grey polyurethane coating provides abrasion resistance and a clean, professional aesthetic that integrates seamlessly into modern helm stations or electrical distribution boards. With four recessed corner mounting points, the panel installs flush into existing cabinetry or custom switchboards.
Important Installation Considerations
Please note that this unit functions strictly as a manual rotary selector switch and diagnostic panel. It does not contain internal fuses or circuit breakers. To ensure compliance with Australian electrical standards and maintain system safety, appropriate overcurrent and fault protection must be installed upstream of this panel for each AC source.
Upgrade Your AC Power Management
Ensure safe, reliable switching between your shore power and generator inputs. Add the 65A 4-Pole AC Rotary Panel to your electrical system specification today for professional-grade source control.
SKU: BS-8369B
SPECIFICATIONS
Specifications
| Part Number | 8369 |
|---|---|
| Positions | 2 + OFF |
| Nominal Voltage | 240 V AC |
| Poles | 4 |
| Maximum Amperage | 65 A |
| Source In | 3 |
| Height | 3.75 in (95.25 mm) |
| Width | 5.25 in (133.35 mm) |
| Depth | 4.50 in (114.3 mm) |
| Weight | 1.41 lb (0.64 kg) |
| SKU: | BS-8369B |
| Model #: | BS-8369B |
| MPN: | BS-8369B |
| Package weight: | 1.56 kg |
| Package length: | 0.17 m |
| Package width: | 0.17 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
