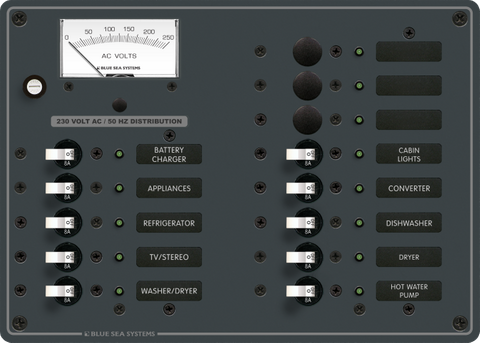

Blue Sea 230VAC 8A 13-Position Distribution Panel
Blue Sea 230VAC 8A 13-Position Distribution Panel
Pre-Wired 100A Bus with 0-250VAC Voltmeter & Backlit Labels
Regular price
$1,143.88
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Pre-Wired 230VAC Marine and Off-Grid Circuit Management
Managing high-voltage alternating current in mobile, marine, and off-grid environments demands uncompromising safety and organisation. The Blue Sea Systems 13-position AC distribution panel provides a centralised, professional-grade hub for managing 230VAC power systems. Engineered to simplify complex electrical installations, this unit arrives fully pre-wired with all hot, neutral, and safety-ground buses factory-installed. By consolidating your primary AC circuit protection and switching into a single interface, it significantly reduces behind-the-dash wiring clutter and minimises the risk of loose connections caused by vessel movement or vehicle vibration.
Integrated Voltage Monitoring and Magnetic-Hydraulic Protection
Unlike basic switch panels that only offer simple circuit isolation, this distribution unit integrates a dedicated 0-250VAC analogue voltmeter directly into the faceplate. This allows operators to monitor real-time system voltage at a glance, helping to identify potential shore power fluctuations, generator irregularities, or inverter drops before they can damage sensitive onboard appliances.
The panel is rated for a maximum overall capacity of 100A and is configured with 8A magnetic-hydraulic rocker circuit breakers alongside expansion slots across its 13 positions. This clarifies the dual amperage ratings: the heavy-duty pre-installed busbars handle a total system load of up to 100A, while the individual installed breakers provide precise 8A branch protection. Magnetic-hydraulic breakers are ideal for marine and mobile applications as their trip curve is unaffected by high ambient temperatures, preventing nuisance tripping in warm engine rooms or enclosed electrical cabinets.
Designed for Low-Light Operation and Rapid Diagnostics
Operating a vessel at night or troubleshooting an off-grid cabin power system in a dimly lit locker requires intuitive, visible controls. Every circuit position on this Blue Sea panel is equipped with a dedicated green 'ON' indicator LED, offering immediate visual confirmation of which AC appliances or sub-circuits are currently energised. Furthermore, the interchangeable circuit label positions are factory-backlit as standard. There is no need to purchase or wire in separate backlighting kits, ensuring effortless circuit identification in complete darkness right out of the box.
Key Features and Benefits
- Fully Pre-Wired Architecture: Factory-installed hot, neutral, and safety-ground buses drastically cut down installation time and reduce wiring errors.
- Integrated Analogue Voltmeter: Built-in 0-250VAC meter provides continuous, real-time monitoring of your AC input source.
- High-Capacity Bus System: Supports a maximum total panel amperage of 100A, accompanied by 8A magnetic-hydraulic circuit breakers for reliable branch protection.
- 13-Position Layout: Offers ample circuit capacity with included expansion slots to customise and scale your 230VAC electrical system as your power needs grow.
- Standard Backlit Labels: Pre-installed backlighting illuminates circuit labels for safe, accurate switching in low-light environments without requiring extra add-on kits.
- Individual Status LEDs: Green 'ON' indicator lights at every breaker position allow for instant status checks across the entire board.
Ideal Applications
Built to meet rigorous marine and mobile electrical standards, this 230VAC distribution panel is suited for a wide variety of demanding installations:
- Marine Vessels: Yachts, cruisers, and commercial workboats managing 230V shore power inlets, marine generators, or high-output inverter systems.
- Custom RV and Caravan Builds: Off-grid motorhomes and fifth-wheelers requiring safe, centralized distribution for air conditioning, induction cooktops, and general power outlets.
- Mobile Workspaces: Specialized service vehicles, mobile command units, and food trucks operating multiple 230VAC appliances.
Upgrade Your 230VAC Electrical System
Ensure your vessel or off-grid build is protected by industry-leading electrical distribution components. Add the Blue Sea 13-Position 230VAC Distribution Panel to your system today for streamlined installation, clear voltage monitoring, and dependable circuit protection.
SKU: BS-8579B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Distribution panel |
| AC voltage | 230VAC |
| Number of positions | 13 |
| Rating stated in title | 8A |
| Maximum panel amperage | 100 Amperes |
| Buses | Hot, neutral and safety ground buses installed |
| Wiring | Fully pre-wired |
| Circuit labels | Backlit on standard panels |
| Indicators | ON indicating LEDs in all circuit positions |
| SKU: | BS-8579B |
| Model #: | BS-8579B |
| MPN: | BS-8579B |
| Package weight: | 4.08 kg |
| Package length: | 0.44 m |
| Package width: | 0.33 m |
| Package height: | 0.18 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
