Blue Sea 230VAC 65A Rotary Panel OFF + 2

Dual Source Shore/Gen Selector with Polarity LEDs & 9011 Switch


Regular price $850.45
/
Availability: Special Order
View all products from Blue Sea

Free Shipping | This item has a free shipping option Australia-wide.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

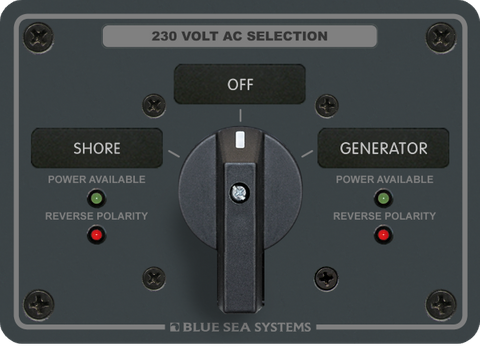

230V AC rotary source selection panel with Shore, Generator, and Off positions and LED indicators

Blue Sea 230VAC 65A Rotary Panel OFF + 2

DESCRIPTION

Heavy-Duty 230V AC Source Selection for Marine, RV, and Off-Grid Power Systems

Managing multiple alternating current power inputs requires a dependable, fail-safe switching mechanism to protect sensitive onboard electronics and electrical appliances. The AC Rotary Panel 230VAC 65A OFF + 2 provides a streamlined, industrial-grade solution for safely routing power from two distinct 230V AC sources to a single output load circuit. Whether transitioning between shore power and an onboard generator on a marine vessel, or switching between mains power and an inverter in a custom caravan or off-grid setup, this selector panel delivers positive, unmistakable control.

Engineered for Safety and System Integrity

Inferior switching panels can suffer from contact arcing, voltage drop, or accidental cross-connection of AC sources, which poses severe risks to your electrical infrastructure. This panel mitigates those hazards by incorporating an industrial-rated 9011 rotary switch with a positive centre-off position. The double-pole design switches both active and neutral conductors simultaneously, ensuring complete isolation between inputs and preventing dangerous back-feeding into generators or shore power pedestals.

To further reduce operational risk, the panel features integrated diagnostic LED indicators for each input source. Before engaging the load, users can visually confirm that an incoming supply is active via the green 'Power Available' LEDs. Crucially, the red 'Reverse Polarity' LEDs immediately alert operators to wiring faults at the shore pedestal or generator, allowing you to disconnect before sensitive equipment is compromised.

Key Features and Construction Benefits

  • Dual 230V AC Source Switching: Seamlessly alternates between two independent 230V AC inputs (such as Shore Power and Generator) to feed a single downstream circuit.
  • High-Capacity 65A Rating: Integrates a heavy-duty 9011 industrial rotary switch capable of handling substantial continuous loads up to 65A.
  • Visual Diagnostic LEDs: Dedicated green LEDs indicate active incoming power, while red LEDs provide immediate warnings for reverse polarity conditions.
  • Marine-Grade Durability: Constructed from heavy 1/8" (approx. 3.175mm) 5052-H32 aluminium alloy, finished with a corrosion-resistant two-part polyurethane slate grey coating.
  • Heavy-Duty Cable Compatibility: Terminal blocks accommodate wire sizes from 12 AWG (approx. 3.3mm²) up to 6 AWG (approx. 13.3mm²) to minimise voltage drop in high-current installations.
  • Compact Form Factor: Designed specifically for installations where overcurrent circuit protection is already provided upstream or in a separate distribution board.

Built for Harsh Australian Environments

From coastal marine installations exposed to salt spray to touring four-wheel drives and caravans navigating corrugated outback tracks, electrical components must withstand constant vibration and environmental stress. The rigid 1/8" (approx. 3.175mm) aluminium faceplate resists flexing during switch operation, while the two-part polyurethane finish prevents oxidation and wear. The ergonomic rotary knob provides tactile feedback, ensuring positive engagement into the Shore, Generator, or Off positions even in rough seas or low-light conditions.

Important Installation Considerations

Please note that this rotary panel functions exclusively as a source selector switch and does not include integrated circuit breakers or fuses. It is engineered as a compact solution for systems where appropriate overcurrent and residual current protection (such as RCBOs or main circuit breakers) are installed elsewhere in the AC distribution network. Ensure adequate behind-panel clearance of at least 76.20mm to accommodate the switch body and heavy-gauge cabling.

Upgrade Your AC Power Management

Eliminate the guesswork and hazards of manual power switching in your vessel, recreational vehicle, or off-grid cabin. Integrate the AC Rotary Panel 230VAC 65A OFF + 2 into your electrical distribution system today for safe, reliable control over your primary AC power sources.


SKU: BS-8357B

SPECIFICATIONS

Specifications

Part Number8357
Positions2 + OFF
Nominal Voltage230 V AC
Poles2
Maximum Amperage65 A
Source In2
Overall Dimensions133.35 x 95.25 mm
Depth2.41 in (61.21 mm)
Mounting Centres112.71 x 74.61 mm
Mounting Depth76.20 mm
Panel Material0.125 in (approx. 3.175 mm) 5052-H32 Aluminum Alloy
Maximum Wire Size6 AWG
Minimum Wire Size12 AWG
Reverse Polarity IndicatorsRed reverse polarity LED indicators
Power Available IndicatorsGreen power available LED indicators
Weight1.25 lb (0.57 kg)

SKU: BS-8357B
Model #: BS-8357B
MPN: BS-8357B
HS code: 8537109170
Country of origin: MX
Package weight: 1.08 kg
Package length: 0.18 m
Package width: 0.18 m
Package height: 0.15 m
