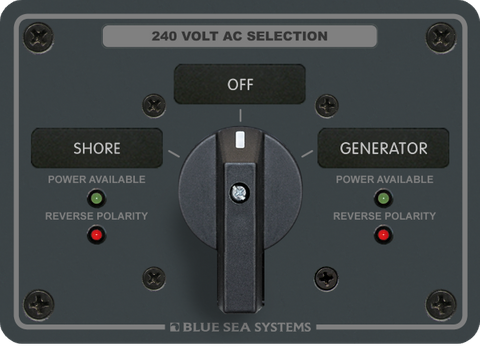

Blue Sea 230VAC 65A 8363 Rotary Panel 3 Pole OFF + 2 Positions
Blue Sea 230VAC 65A 8363 Rotary Panel 3 Pole OFF + 2 Positions
3-Pole Shore & Generator Switch with Polarity LEDs & Alloy Faceplate
Regular price
$980.18
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty 230V/240V AC Source Selector Panel for Marine and Off-Grid Power Systems
Managing multiple alternating current inputs requires a dependable, fail-safe switching mechanism. This 65A AC Rotary Panel provides a streamlined, robust method for selecting between two separate 230V AC or 240V AC power sources, such as shore power, an onboard generator, or a high-output inverter. Designed for systems where primary circuit protection is housed in a separate distribution board, this compact AC source selector switch safely isolates inputs to prevent hazardous back-feeding and electrical faults.
Engineered for Harsh Marine and Mobile Environments
Unlike standard commercial switchgear that can corrode or degrade in high-moisture environments, this rotary selector panel is built from heavy-duty 1/8" (approx. 3.18mm) 5052 marine-grade aluminium alloy. Finished with an industrial two-part polyurethane slate grey coating, the faceplate resists salt mist, humidity, and mechanical wear. It is an ideal fit for marine vessels, commercial service vehicles, and off-grid energy enclosures across Australia.
Key Features and Benefits
- Dual AC Source Switching: Effortlessly transition a single load circuit between two independent 230V/240V AC inputs with a positive-action rotary selector knob (2 positions + OFF).
- 3-Pole Isolation: simultaneously switches Active, Neutral, and Earth/Ground paths (where applicable by system design) to ensure complete isolation between incompatible power sources.
- Integrated Diagnostic LEDs: Features dual green LED indicators to confirm live power availability at each source, alongside dedicated red LED indicators that provide immediate visual warning of dangerous reverse polarity conditions before you engage the load.
- Marine-Grade Construction: Constructed from 1/8" (approx. 3.18mm) 5052 aluminium alloy with a durable two-part polyurethane finish for long-term corrosion resistance.
- High Current Capacity: Rated up to 65A maximum amperage to support demanding air conditioning units, battery chargers, and heavy galley or workshop appliances.
Enhanced Electrical Safety and Risk Reduction
Connecting to unfamiliar shore power pedestals or temporary generator setups carries the risk of miswired supply lines. Reversed active and neutral conductors can bypass single-pole circuit breakers and energise appliance chassis, creating severe shock hazards and damaging sensitive onboard electronics. The integrated red reverse polarity indicators allow operators to verify line safety at a glance before switching the rotary dial from the OFF position.
Additionally, using a dedicated mechanical rotary switch eliminates the risk of simultaneous source connection. By physically preventing shore power and generator or inverter outputs from meeting on the same bus, you protect expensive inverters and alternators from catastrophic phase-clash damage.
Installation Considerations and System Integration
This panel is specifically engineered as a compact switching module for installations where overcurrent and residual current circuit protection (such as circuit breakers and RCDs) are already provided upstream or downstream in the electrical system. Please note that circuit breakers are not included on this panel. Its compact footprint allows it to be mounted easily in tight helm stations, electrical lockers, or custom control cabinets.
- Marine Vessels: Switch cleanly between dockside shore power and an onboard marine generator.
- Off-Grid Cabins and Tiny Homes: Select between mains grid supply and a backup generator or standalone inverter system.
- Commercial & Emergency Vehicles: Manage external site hook-ups and onboard auxiliary power units safely.
Upgrade Your AC Power Management
Ensure safe, reliable source switching for your vessel or off-grid electrical system. Add the 65A AC Rotary Selector Panel to your setup today for professional-grade power control and polarity monitoring.
SKU: BS-8363B
SPECIFICATIONS
Specifications
| Manufacturer Part Number | 8363 |
|---|---|
| Positions | 2 + OFF |
| Nominal Voltage | 240 V AC |
| Poles | 3 |
| Maximum Amperage | 65 A |
| Source In | 2 |
| Height | 95.25 mm |
| Width | 133.35 mm |
| Depth | 92.71 mm |
| Weight | 0.64 kg |
| Finish | Two-part polyurethane slate grey finish |
| Material | Heavy 1/8" aluminium 5052 alloy (approx. 3.18 mm) |
| Reverse Polarity Indicators | Red reverse polarity LED indicators |
| Power Available Indicators | Green power available LED indicators |
| SKU: | BS-8363B |
| Model #: | BS-8363B |
| MPN: | BS-8363B |
| Package weight: | 0.96 kg |
| Package length: | 0.18 m |
| Package width: | 0.18 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
