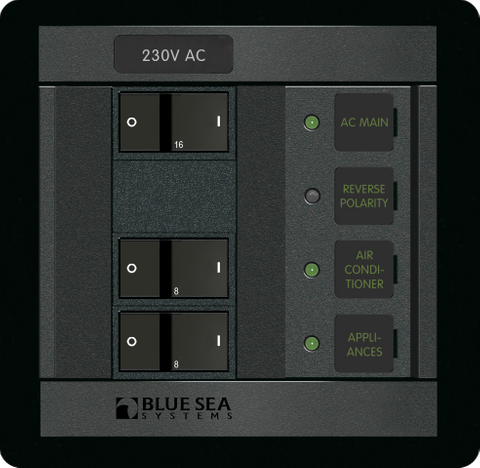

Blue Sea 230VAC 2 Position Panel 360 Main+ Distribution Panel
Blue Sea 230VAC 2 Position Panel 360 Main+ Distribution Panel
Double-Pole Main, Reverse Polarity LED & Backlit Labels
Regular price
$506.57
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable 230VAC Power Management for Marine and Off-Grid Systems
Managing high-voltage alternating current in mobile, marine, and off-grid environments requires uncompromising safety and clear system visibility. The Blue Sea Systems 360 Panel System provides a modular, professional-grade solution for centralising your 230VAC power distribution. Engineered specifically to handle the demands of boats, caravans, motorhomes, and specialised service vehicles, this distribution panel houses a dedicated double-pole AC main circuit breaker alongside two individual branch circuit positions. This integrated architecture allows operators to safely isolate the primary shore power or inverter feed while independently controlling and protecting downstream appliances.
Enhanced Visibility and Operational Safety
Operating electrical systems in low-light conditions, such as a dark wheelhouse or an unlit caravan cabin, presents significant challenges if switchgear is poorly labelled. This AC distribution panel addresses visibility issues through integrated backlighting across all circuit label positions, Paired with bright green LED status indicators, you can verify which circuits are live at a single glance. Furthermore, to mitigate the severe electrical risks associated with faulty shore power pedestals or improper generator wiring, the unit incorporates a dedicated reverse polarity indicator. This vital safety feature immediately alerts the operator if the active and neutral conductors are reversed, helping to prevent equipment damage and reduce the risk of electrical shock before branch circuits are engaged.
- Double-Pole AC Main Breaker: Simultaneously disconnects both active and neutral conductors for safe, comprehensive isolation of the primary 230VAC supply.
- Two Branch Circuit Positions: Provides dedicated overcurrent protection and manual switching for two individual 230VAC loads, such as battery chargers, water heaters, or power outlets.
- Integrated Reverse Polarity Warning: Dedicated indicator light warns of hazardous wiring faults on incoming AC shore or generator power.
- Backlit Circuit Identification: Illuminated label slots ensure effortless readability in dimly lit cabins, lockers, and control stations.
- Active Status LEDs: Individual green LEDs installed in every circuit position provide immediate visual confirmation when a circuit is energised.
- Customisable Labelling: Supplied with an interchangeable Square Format Label Set to clearly designate specific appliances and system zones.
Why Upgrade to the Panel 360 Series?
Standard domestic switchboards and basic aftermarket breaker boxes are rarely built to endure the constant vibration, moisture, and spatial constraints of marine and recreational vehicle installations. Utilizing inferior switchgear in these environments can lead to premature component failure, nuisance tripping, or hazardous loose connections. As part of the renowned Blue Sea 360 Panel architecture, this unit offers a compact, high-density footprint with a clean, modern aesthetic that seamlessly integrates alongside existing DC panels and monitoring gauges. The robust rocker circuit breakers provide a positive tactile response and dependable trip characteristics, ensuring your critical 230VAC infrastructure remains secure under demanding conditions.
Upgrade Your AC Electrical Distribution
Whether you are commissioning a new marine electrical refit, building an off-grid expedition vehicle, or upgrading an ageing caravan shore power inlet, the Blue Sea 230VAC Main+2 Position Panel delivers the safety and clarity required for compliant high-voltage management. Integrate this panel into your system today for dependable AC circuit protection and intuitive power control.
SKU: BS-1215B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Distribution panel |
| Panel name | Panel 360 Main+ |
| Voltage | 230VAC |
| Number of positions | 2 |
| Circuit label positions | Backlit |
| Circuit indicators | “ON” indicating LEDs installed in all circuit positions |
| Included item | Square Format Label Set |
| SKU: | BS-1215B |
| Model #: | BS-1215B |
| MPN: | BS-1215B |
| HS code: | 8537109170 |
| Country of origin: | MX |
| Package weight: | 0.66 kg |
| Package length: | 0.18 m |
| Package width: | 0.18 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
