Blue Sea 230VAC 16A Main Distribution Panel, 1 Position

Pre-Wired Buses, Double-Pole Breaker & Reverse Polarity LED


Regular price $288.29
/
Availability: Special Order
View all products from Blue Sea

Free Shipping to Melbourne metro | Add to cart and enter your postcode to see live shipping options.

Eligible Free-shipping Zones

Melbourne metro

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

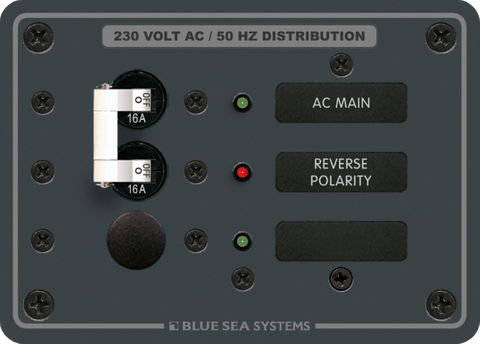

Blue Sea 230V AC 16A main distribution panel with circuit breaker and reverse polarity LED indicator

Blue Sea 230VAC 16A Main Distribution Panel, 1 Position

DESCRIPTION

Reliable AC Power Control for Marine, RV, and Off-Grid Electrical Systems

Managing alternating current in mobile and marine environments requires absolute precision and safety. The Blue Sea Systems 1-Position AC Main Distribution Panel provides a dedicated, professional-grade solution for controlling your primary 230VAC power feed. Engineered specifically for boats, caravans, motorhomes, and off-grid cabins, this compact panel simplifies the management of shore power, inverter outputs, or generator feeds while maintaining strict electrical safety standards.

Streamlined Installation with Pre-Wired Buses

Building a custom AC switchboard from individual components can be time-consuming and prone to wiring errors. This distribution panel arrives fully pre-wired with heavy-duty hot, neutral, and safety ground buses already installed. By integrating the busbars directly into the rear assembly, it significantly reduces installation time and eliminates the clutter of external bridging wires. Installers and system builders can achieve a clean, compliant, and vibration-resistant setup right out of the box.

Enhanced Safety with Active Status Indicators

When connecting to unfamiliar shore power pedestals or external generators, reversed polarity poses a severe risk to both onboard equipment and personal safety. This panel features an integrated red LED reverse-polarity indicator that provides an immediate visual warning if the active and neutral lines are cross-wired at the source. Additionally, a green ON-indicating LED clearly displays when the double-pole main circuit breaker is active, ensuring you are never left guessing if the 230VAC circuit is live.

  • Double-Pole Main Control: Simultaneously switches both active and neutral lines for complete circuit isolation and enhanced safety.
  • Fully Pre-Wired Architecture: Factory-installed hot, neutral, and safety ground buses streamline the installation process.
  • Reverse Polarity Warning: Dedicated red LED alerts operators to dangerous wiring faults before downstream appliances are damaged.
  • Backlit Circuit Labels: Integrated backlighting ensures clear visibility in dimly lit marine cabins or RV electrical lockers without needing a separate accessory kit.
  • Active Circuit Status: Green LED indicator provides instant visual confirmation when the main 16A breaker is engaged.

Why Upgrade to a Dedicated Blue Sea Systems AC Panel?

Standard domestic switchboard components are rarely designed to withstand the constant vibration, moisture, and compact space constraints found in marine vessels and touring vehicles. Utilizing a purpose-built distribution panel reduces the risk of loose connections, accidental contact with live terminals, and undetected polarity faults. The integrated backlit labelling system also means you can safely identify and isolate your primary AC power in pitch-black conditions during an emergency.

Ideal Applications

Rated for standard 230VAC 50Hz electrical systems up to 16A, this single-position panel is highly versatile. It is commonly deployed as a primary shore power inlet disconnect on yachts and powerboats, a main AC breaker for 15A caravan inlets, or a dedicated output distribution point for off-grid inverters.

Upgrade Your AC Electrical Safety

Equip your vessel or mobile power system with industry-leading circuit protection. Order the Blue Sea 230VAC 16A Main Distribution Panel today for a safer, cleaner, and more reliable AC electrical installation.


SKU: BS-8129B

SPECIFICATIONS

SpecificationDetails
Product typeMain distribution panel
Max AC voltage230VAC
Max AC current16A
Number of positions1
BusesHot, neutral and safety ground buses installed
WiringFully pre-wired
IndicatorRed reverse-polarity indicating LED
Circuit label positionsBacklit on standard panels
Circuit indicatorsON-indicating LEDs installed in all circuit positions

SKU: BS-8129B
Model #: BS-8129B
MPN: BS-8129B
HS code: 8537109170
Country of origin: MX
Package weight: 0.66 kg
Package length: 0.2 m
Package width: 0.17 m
Package height: 0.11 m
