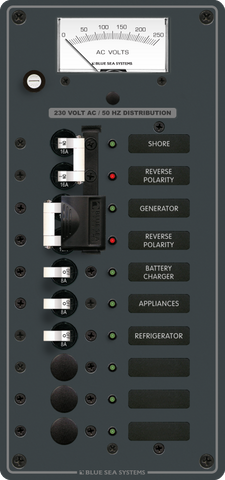

Blue Sea 230VAC 16A 6-Position Distribution Panel with 2 Mains and 8A Circuits
Blue Sea 230VAC 16A 6-Position Distribution Panel with 2 Mains and 8A Circuits
Pre-Wired with Source Lockout Slide, 0-250V Voltmeter & Backlit Labels
Regular price
$980.18
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable 230VAC Power Management for Marine and Off-Grid Systems
Managing multiple alternating current sources in a mobile or marine environment requires uncompromising safety and precision. The Blue Sea Systems 8589B AC Distribution Panel is engineered to provide centralised, secure control over your 230VAC electrical architecture. Designed specifically for applications utilising dual AC inputs, such as shore power and an onboard generator or inverter, this vertical distribution panel streamlines power switching while protecting critical downstream appliances from electrical faults.
Integrated Source Lockout and Polarity Protection
One of the primary risks in dual-source AC systems is the accidental simultaneous connection of two live power feeds, which can cause severe damage to generators, inverters, and shore power infrastructure. This panel eliminates that risk through a robust, factory-installed mechanical lockout slide. The physical slide mechanism ensures that only one double-pole 16A main circuit breaker can be engaged at any given time, providing fail-safe source selection between your primary and secondary AC inputs.
To further enhance onboard safety, the panel features dedicated red reverse-polarity indicator LEDs. If a shore power pedestal or external feed is wired incorrectly, where active and neutral lines are reversed, the indicator illuminates immediately, allowing you to disconnect the source before energising your branch circuits and risking shock hazards or equipment failure.
Key Features and System Benefits
- Dual 16A Double-Pole Mains: Simultaneously switches both active and neutral lines for complete isolation across two separate 230VAC power sources.
- Mechanical AC Source Lockout: Integrated sliding lockout mechanism physically prevents shore power and generator or inverter sources from being connected at the same time.
- Six Branch Circuit Positions: Supports up to six individual 8A branch circuits, supplied with three pre-installed toggle breakers and three expandable positions for future system growth.
- Integrated Analogue Voltmeter: Features a clear 0 to 250VAC scale for immediate, at-a-glance verification of incoming voltage stability.
- Fully Pre-Wired Bus Architecture: Arrives with hot, neutral, and safety ground buses factory-installed and pre-wired, significantly reducing installation time and wiring complexity.
- Enhanced Low-Light Visibility: Equipped with standard backlit circuit labels and individual green status LEDs at every circuit position, requiring no additional backlighting kits.
Engineered for Streamlined Installation and Operation
Unlike standard commercial switchboards that require extensive custom wiring and separate busbar installations, this Blue Sea Systems panel is built for rapid integration into tight marine consoles, caravan electrical cabinets, and off-grid control boards. Because the hot, neutral, and safety ground buses are pre-installed and fully wired at the factory, electricians and system builders can achieve a clean, compliant layout with minimal labour, reducing the risk of loose terminations caused by vessel or vehicle vibration.
Operating the panel in dimly lit cabins or wheelhouses is effortless. Each circuit position features a backlit label alongside a dedicated green ON indicator LED, giving you instant visual confirmation of which 230VAC loads are active. Furthermore, the top-mounted 0 to 250VAC analogue voltmeter allows you to continuously monitor input voltage quality before and during load engagement, helping you avoid brownout conditions that can degrade sensitive AC compressors and battery chargers.
Upgrade Your AC Electrical Safety
Ensure your vessel, commercial vehicle, or off-grid cabin is equipped with professional-grade circuit protection and intuitive source management. Select the Blue Sea 230VAC 2 x 16A Main 6-Position AC Distribution Panel for a pre-wired, safe, and expandable power control solution.
SKU: BS-8589B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | AC distribution panel |
| AC voltage | 230VAC |
| Main circuit breakers | Two double-pole breakers, 16A each |
| Circuit positions | 6 |
| Maximum current per circuit | 8A |
| AC source lockout | Installed slide prevents connecting both AC sources simultaneously |
| Reverse polarity indicator | Red LED |
| Buses | Hot, neutral and safety ground buses installed; fully pre-wired |
| Circuit labels | Backlit on standard panels; no kit required |
| Circuit indicators | “ON” indicating LEDs installed in all circuit positions |
| SKU: | BS-8589B |
| Model #: | BS-8589B |
| MPN: | BS-8589B |
| HS code: | 8537109170 |
| Country of origin: | MX |
| Package weight: | 1.44 kg |
| Package length: | 0.29 m |
| Package width: | 0.18 m |
| Package height: | 0.1 m |
