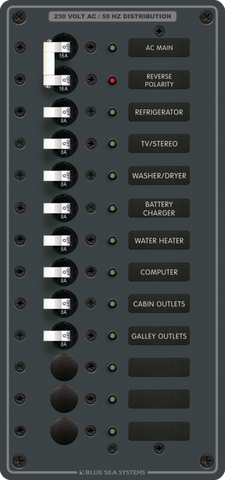

Blue Sea 230VAC 16A 11-Position Distribution Panel
Blue Sea 230VAC 16A 11-Position Distribution Panel
Pre-Wired Hot, Neutral & Ground Buses with Backlit Labels & LEDs
Regular price
$989.44
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Pre-Wired 230VAC Circuit Distribution for Marine and Off-Grid Systems
Managing alternating current in demanding mobile, marine, and off-grid environments requires uncompromising safety and organisation. This Blue Sea Systems 230VAC distribution panel consolidates complex AC wiring into a single, streamlined assembly. Engineered to manage shore power, inverter outputs, or onboard generators, it provides a dependable central hub for your high-voltage electrical architecture.
Unlike basic enclosures that require tedious custom busbar fabrication and point-to-point wiring, this unit arrives fully pre-wired from the factory. All hot, neutral, and safety ground buses are pre-installed, significantly reducing installation time and minimising the risk of wiring errors behind the dash or inside electrical cabinets.
Comprehensive Circuit Protection and Expandability
At the top of the system sits a dedicated double-pole 16A main circuit breaker, providing complete isolation and overload protection for the entire downstream network. The panel features 11 branch positions to distribute power to appliances such as battery chargers, water heaters, air conditioning units, and general power outlets.
Out of the box, the panel is equipped with nine individual 8A branch circuit breakers for immediate deployment. To support growing electrical demands, it also includes three blank expandable positions, allowing you to integrate additional breakers in the future without replacing the entire switchboard.
Enhanced Visibility and Polarity Safety
Operating 230VAC systems in dark cabins, engine rooms, or caravan compartments demands clear visual feedback. Every circuit label position is backlit as standard, requiring no optional upgrade kits to achieve clear legibility in low-light conditions. Furthermore, each active position features a dedicated green ON-indicating LED so operators can confirm live circuits at a glance.
To protect sensitive onboard electronics and personnel from faulty shore power pedestals or miswired generators, an integrated red reverse-polarity LED indicator provides an immediate visual warning if hot and neutral lines are reversed.
Key Features
- Factory Pre-Wired Assembly: Includes installed hot, neutral, and safety ground buses for rapid, clean installation.
- Main System Isolation: Equipped with a double-pole 16A main breaker for comprehensive upstream protection.
- Flexible Branch Distribution: Features 11 positions, supplied with nine 8A circuit breakers and three blank slots for future expansion.
- Integrated Safety Monitoring: High-visibility red LED warns of unsafe reverse polarity conditions before branch circuits are engaged.
- Low-Light Readability: Standard backlit circuit labels and individual green ON-indicating LEDs require no additional lighting kits.
Applications
Built to exacting standards for vibration resistance and electrical integrity, this AC distribution panel is well-suited for:
- Marine Vessels: Managing 230VAC shore power inlets and marine generator distribution on yachts, cruisers, and commercial workboats.
- Caravans and Motorhomes: Distributing inverter power and mains hook-ups safely across mobile living quarters.
- Off-Grid Cabins and Tiny Homes: Organising standalone inverter-charger AC outputs into dedicated appliance circuits.
- Specialist Service Vehicles: Powering onboard diagnostic equipment, compressors, and tools in mobile workshops.
Upgrade Your AC Electrical Safety
Equip your vessel, recreational vehicle, or off-grid setup with a professional-grade 230VAC switchboard designed for long-term reliability. Add the Blue Sea 11-Position AC Distribution Panel to your system today for safer, cleaner power management.
SKU: BS-8585B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | AC distribution panel |
| Maximum AC voltage | 230VAC |
| Main current | 16A |
| Number of positions | 11 |
| Maximum current per circuit | 8A |
| Wiring | Fully pre-wired |
| Buses | Hot, neutral and safety ground buses installed |
| Indicators | Red reverse-polarity indicating LED; ON-indicating LEDs in all circuit positions |
| Circuit labels | All circuit-label positions are backlit on standard panels |
| Kit requirement | No kit required |
| SKU: | BS-8585B |
| Model #: | BS-8585B |
| MPN: | BS-8585B |
| Package weight: | 2.16 kg |
| Package length: | 0.39 m |
| Package width: | 0.27 m |
| Package height: | 0.12 m |
