Blue Sea 20A C-Series Single-Pole Toggle Circuit Breaker

Magnetic-Hydraulic Operation, Trip-Free Design & White Toggle Switch


Regular price $74.88
/
Availability: In Stock at Blue Sea Warehouse Allow up to 7 days before dispatch
View all products from Blue Sea

Shipping Calculated in Cart | Add to cart and enter your postcode to see live shipping options.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

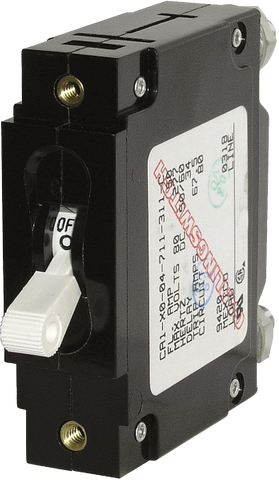

Blue Sea C-Series 20A single-pole circuit breaker with white toggle switch and black housing

Blue Sea 20A C-Series Single-Pole Toggle Circuit Breaker

DESCRIPTION

Integrated Magnetic-Hydraulic Circuit Protection and Switching

The Blue Sea C-Series 20A Single-Pole Toggle Circuit Breaker (BS-7353B) delivers reliable overcurrent protection and manual switching in a single, compact device. Engineered for demanding electrical systems across marine vessels, caravans, 4WDs, and off-grid setups, this unit simplifies distribution panel layouts by eliminating the need for a separate switch and fuse holder. Its distinct white toggle switch sits neatly within a robust black housing, offering intuitive manual control and immediate visual status indication.

Why Choose Magnetic-Hydraulic Operation?

Unlike standard thermal circuit breakers that rely on heat to trip, the C-Series utilises advanced magnetic-hydraulic technology. Standard thermal units can suffer from nuisance tripping when installed in hot engine bays, enclosed battery boxes, or canopies exposed to harsh Australian summer conditions. A magnetic-hydraulic mechanism operates via a magnetic coil and a fluid-damped core, ensuring the 20A trip point remains strictly governed by electrical current rather than ambient temperature fluctuations.

This precise hydraulic delay also handles temporary, harmless inrush currents common when starting pumps, compressors, or refrigeration units without prematurely interrupting the circuit. However, in the event of a genuine short circuit or sustained overload, the breaker responds rapidly to protect your wiring and sensitive electronics.

Trip-Free Safety and Robust Construction

Safety is central to the Blue Sea C-Series design. It incorporates a true trip-free mechanism, meaning the internal contacts cannot be manually held closed during an active fault condition. If an overcurrent event persists, the breaker will trip internally even if the toggle switch is physically held in the 'ON' position, significantly reducing the risk of cable overheating or electrical fires.

  • Dual-Function Design: Combines 20A overcurrent protection and manual ON/OFF circuit switching into one streamlined unit.
  • Magnetic-Hydraulic Mechanism: Provides consistent, temperature-independent trip performance without derating in high-heat environments.
  • Trip-Free Operation: Internal contacts open automatically during a fault and cannot be forced closed until the issue is resolved.
  • Ergonomic White Toggle: Offers smooth manual operation and clear visual confirmation of the circuit status.
  • Secure Panel Mounting: Equipped with threaded brass mounting inserts for straightforward, vibration-resistant flush installation in custom or pre-fabricated switch panels.
  • Heavy-Duty Rear Terminals: Robust terminal studs ensure high-integrity, low-resistance cable connections that withstand mobile and marine vibration.

Versatile Applications for Marine and Off-Grid Power

Whether you are fitting out a commercial marine vessel, upgrading a caravan 12V or 24V electrical system, or building a custom power distribution board, the Blue Sea BS-7353B provides dependable circuit management. By consolidating switching and protection, it reduces the number of connection points in your wiring harness, minimising potential voltage drop and simplifying fault finding in the field.

Upgrade Your Electrical Distribution Panel

Equip your power system with industry-recognised circuit protection. Add the Blue Sea C-Series 20A Single-Pole Toggle Circuit Breaker to your build today for dependable, temperature-stable switching and safety.


SKU: BS-7353B

SPECIFICATIONS

SpecificationDetails
Product typeCircuit breaker

SKU: BS-7353B
Model #: BS-7353B
MPN: BS-7353B
HS code: 8536200040
Country of origin: MX
Package weight: 1.08 kg
Package length: 0.14 m
Package width: 0.11 m
Package height: 0.11 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
