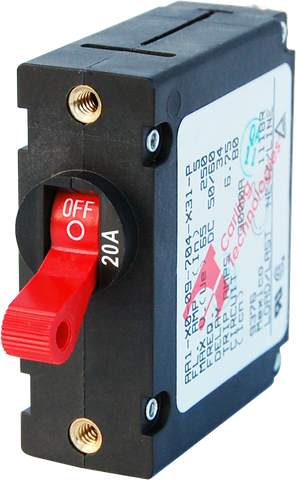

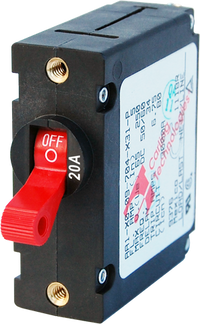

Blue Sea 20A A-Series Single Pole Toggle Circuit Breaker - Red
Blue Sea 20A A-Series Single Pole Toggle Circuit Breaker - Red
Magnetic Hydraulic Trip-Free Switch & Circuit Protection for Panels
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic Hydraulic Switching and Circuit Protection
The Blue Sea Systems A-Series 20A Single-Pole Toggle Circuit Breaker delivers industry-standard reliability for demanding marine, RV, and off-grid electrical installations. By combining a high-duty toggle switch and precision overcurrent protection into a single unified device, it streamlines distribution panel layouts and eliminates the need for separate fuse blocks and switches. Featuring a prominent red toggle actuator, this 20A breaker is ideal for clearly identifying critical or emergency circuits on your main switchboard.
Why Magnetic Hydraulic Technology Matters
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the Blue Sea A-Series utilises a magnetic hydraulic mechanism. Standard thermal breakers can suffer from derating and nuisance tripping when installed in hot engine bays, enclosed canopies, or sun-exposed dashboards. Magnetic hydraulic breakers respond solely to current variations within the circuit rather than ambient temperature. This ensures consistent, predictable trip curves and reliable 20A overcurrent protection regardless of how hot or cold the surrounding environment becomes.
Key Features and Technical Benefits
- Dual-Function Design: Combines manual circuit switching and overcurrent protection into one compact footprint, reducing wiring complexity and potential failure points.
- Trip-Free Safety Mechanism: Engineered with an internal trip-free design that cannot be manually held in the ON position during a fault-current condition, protecting wiring and connected equipment from severe thermal damage.
- High-Visibility Red Toggle: Clearly marked with its 20A rating, the red lever allows operators to quickly locate and isolate essential circuits at a glance.
- Temperature-Stable Operation: Magnetic hydraulic actuation prevents nuisance tripping in high-temperature enclosures and ensures accurate trip delay curves.
- Seamless Panel Integration: Built with standardised threaded mounting inserts for straightforward front-panel installation in Blue Sea Systems electrical distribution panels and custom switchboards.
Built for Harsh Marine and Mobile Environments
Electrical systems in boats, 4WDs, caravans, and commercial vehicles are constantly subjected to vibration, moisture, and temperature extremes. Inferior protection devices can corrode or fail to trip accurately, putting expensive electronics and cable runs at risk. The A-Series breaker is specifically engineered to meet stringent marine and automotive standards, mitigating the risk of electrical fires and system downtime. Its robust construction and side specification label with detailed electrical ratings make professional installation and system auditing straightforward.
Applications
- Marine AC and DC main distribution panels
- Caravan, motorhome, and camper trailer 12V and 24V power systems
- 4WD canopy setups and auxiliary battery management boards
- Off-grid solar control cabinets and industrial mobile equipment
Upgrade Your Electrical Panel Safety
Ensure your critical circuits are protected with dependable, temperature-stable hardware. Add the Blue Sea A-Series 20A Red Toggle Circuit Breaker to your build today for streamlined switching and professional-grade electrical protection.
SKU: BS-7213B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7213B |
| Model #: | BS-7213B |
| MPN: | BS-7213B |
| Package weight: | 0.36 kg |
| Package length: | 0.11 m |
| Package width: | 0.08 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
