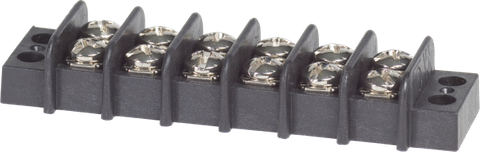

Blue Sea 20A 6-Circuit Terminal Block
Blue Sea 20A 6-Circuit Terminal Block
Closed-Back Insulated Base with Protective Isolation Barriers
Regular price
$10.30
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Isolated Electrical Connections for Marine and Automotive Systems
Managing multiple electrical feeds in a confined space requires a dependable distribution point that prioritises safety and organisation. The Blue Sea Systems 6-Circuit Terminal Block is engineered to provide six completely independent electrical pathways within a single, compact footprint. Rated for up to 20A per circuit, this heavy-duty connector block is an essential component for marine vessels, caravans, 4WD dual-battery setups, and custom off-grid control panels.
Unlike standard connection strips that can leave conductive elements exposed or prone to vibration-induced loosening, this terminal block is built to stringent marine-grade standards. Each screw pair forms a distinct, isolated circuit, allowing installers to neatly terminate positive and negative leads, sensor wires, or auxiliary lighting feeds without cross-circuit interference. The result is a clean, serviceable wiring harness that simplifies fault-finding and future system upgrades.
Engineered for Electrical Safety and Surface Insulation
A critical vulnerability in many 12V and 24V electrical installations is the risk of accidental short circuits against metal bulkheads, vehicle chassis, or conductive mounting panels. This terminal block directly addresses that risk through a fully closed-back construction. By completely insulating the conductive brass bus and screw terminals from the rear mounting surface, it eliminates the need for separate insulating backing strips and allows direct installation onto aluminium hulls, steel canopies, or metal enclosures.
Furthermore, the unit incorporates high-impact isolation barriers between each terminal pair. These physical dividers prevent stray wire strands, ring terminals, or dropped tools from bridging adjacent circuits, significantly reducing the risk of electrical shorts in high-vibration environments such as corrugated off-road tracks or choppy coastal waters.
Key Features and Technical Advantages
- Six Isolated Screw-Pair Circuits: Keeps individual power feeds, ground returns, or signal wires completely separate within one unified mounting block.
- 20A Continuous Rating: Supports reliable power distribution for low-to-medium draw accessories including navigation electronics, cabin lighting, pumps, and instrumentation.
- Closed-Back Insulation: Completely isolates live electrical components from the mounting surface, preventing accidental grounding on metal panels.
- High-Impact Protective Barriers: Deep molded dividers between terminals protect against accidental contact and short-circuiting between adjacent lugs.
- Flexible Jumper Compatibility: Easily convert adjacent isolated pairs into shared common distribution buses using compatible terminal block jumpers.
- Reinforced Mounting Ends: Dedicated fastening points at both ends ensure secure, vibration-resistant surface mounting in any orientation.
Adaptable Configuration for Custom Wiring Looms
While the primary function of a terminal block is to maintain circuit separation, complex electrical layouts often require a hybrid approach combining isolated feeds with a common ground or shared positive bus. This unit is designed to accommodate slip-on jumpers, allowing you to bridge two or more adjacent screw pairs effortlessly. This modularity means a single six-circuit block can simultaneously serve as a three-point common positive bus and three independent negative returns, adapting directly to the specific schematic of your project.
Ideal Applications
- Marine Switchboards and Consoles: Consolidating helm wiring, bilge pump triggers, and navigation light feeds behind the dash.
- Caravan and Camper Trailer Fit-Outs: Organising 12V distribution for water pumps, reading lights, and monitoring shunts.
- 4WD Canopy and Dual-Battery Systems: Creating a serviceable junction point between main power runs and auxiliary accessories.
- Industrial and Off-Grid Enclosures: Neatening low-current control wiring, relay triggers, and telemetry connections inside weatherproof boxes.
Upgrade Your Wiring Integrity
Ensure your electrical connections remain secure, organised, and properly insulated against harsh operating conditions. Add the Blue Sea 20A 6-Circuit Terminal Block to your build list today for a clean, professional-grade wiring installation.
SKU: BS-2406B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Maximum current | 20A |
| Number of circuits | 6 |
| Circuit arrangement | Each screw pair is one isolated circuit |
| Design | Closed back design insulates power from the mounting surface |
| Jumper function | Jumpers allow creation of common circuits |
| SKU: | BS-2406B |
| Model #: | BS-2406B |
| MPN: | BS-2406B |
| Package weight: | 0.144 kg |
| Package length: | 0.14 m |
| Package width: | 0.05 m |
| Package height: | 0.04 m |
