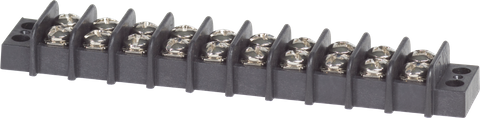

Blue Sea 20A 10-Circuit Terminal Block
Blue Sea 20A 10-Circuit Terminal Block
Closed-Back Insulated Base with Protective Barriers & Isolated Pairs
Regular price
$15.44
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable, Isolated Circuit Connections for Marine, Caravan, and Off-Grid Wiring
Managing multiple electrical feeds in confined spaces requires dependable hardware that prioritises both organisation and safety. The Blue Sea 20A 10-Circuit Terminal Block offers a clean, structured solution for consolidating and distributing wiring across complex electrical systems. Engineered to handle up to 20A per circuit, this terminal block provides ten distinct screw-pair connections, allowing installers to maintain complete electrical isolation between individual feeds while simplifying troubleshooting and future system maintenance.
Engineered for Electrical Safety and Fault Prevention
Unlike open-frame alternatives that can expose live conductors to conductive panels, this unit features a fully closed-back design. This insulated base completely separates power from the mounting surface, allowing safe installation directly onto aluminium boat hulls, steel vehicle chassis, or metal enclosures without the risk of ground faults or short circuits. Furthermore, high-profile moulded protective barriers sit between each screw pair, physically preventing frayed wire strands or slipping ring terminals from making accidental contact with adjacent circuits.
Key Features and Benefits
- 10 Isolated Screw-Pair Circuits: Each pair of opposite screws forms a single, independent circuit for straightforward point-to-point wiring.
- Closed-Back Insulated Base: Completely isolates electrical connections from the mounting surface, preventing accidental shorting on metal panels.
- Moulded Protective Barriers: Deep dividing walls between terminals reduce the risk of cross-circuit arcing and terminal rotation.
- Jumper Compatibility: Easily convert adjacent isolated pairs into common positive or negative distribution points using compatible terminal block jumpers.
- Secure Surface Mounting: Pre-drilled mounting holes at both ends ensure stable attachment inside electrical cabinets, consoles, and canopies.
Flexible Configuration for Custom Installations
Electrical setups rarely stay static, especially in custom 4WD canopies, caravans, and marine vessels. While the default layout provides ten separate pass-through connections for signal wires, lighting circuits, or low-draw accessories, this terminal block adapts easily to changing distribution needs. By adding optional jumpers across the screw terminals, you can link multiple circuits together to create a customised common busbar. This dual-purpose capability makes it an exceptional choice for bridging main control panels to field wiring, organising dashboard switches, or consolidating sensor grounds.
Why Choose Blue Sea Systems Over Standard Alternatives?
Inferior terminal blocks often suffer from brittle plastic housings that crack under mounting pressure, or soft screw threads that strip before achieving proper torque. In high-vibration environments like corrugated outback tracks or choppy coastal waters, loose connections rapidly lead to high resistance, voltage drop, and hazardous heat build-up. Blue Sea Systems designs electrical components specifically for demanding marine and mobile applications, ensuring robust terminal construction that holds connections securely over time.
Ideal Applications
- Marine Consoles and Helm Wiring: Safely connect navigation lights, bilge pump switches, and instrument gauges without risking hull shorts.
- Caravan and RV Distribution: Organise 12V and 24V lighting circuits, water pump feeds, and auxiliary appliance wiring in a central location.
- 4WD Canopy and Dual Battery Setups: Create neat, serviceable junction points for canopies, roof rack lighting, and accessory switches.
- Industrial and Off-Grid Enclosures: Maintain clear separation between control circuits, relays, and monitoring equipment inside metal cabinets.
Upgrade your electrical layout with hardware built for safety and longevity. Add the Blue Sea 20A 10-Circuit Terminal Block to your project today for a cleaner, more reliable wiring installation.
SKU: BS-2410B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Terminal block |
| Maximum current | 20A |
| Number of circuits | 10 |
| Design | Closed back; completely insulates power from the mounting surface |
| Circuit arrangement | Each screw pair is one isolated circuit |
| Jumpers | Allow creation of common circuits |
| SKU: | BS-2410B |
| Model #: | BS-2410B |
| MPN: | BS-2410B |
| Package weight: | 0.144 kg |
| Package length: | 0.15 m |
| Package width: | 0.06 m |
| Package height: | 0.04 m |
