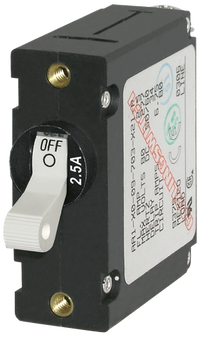

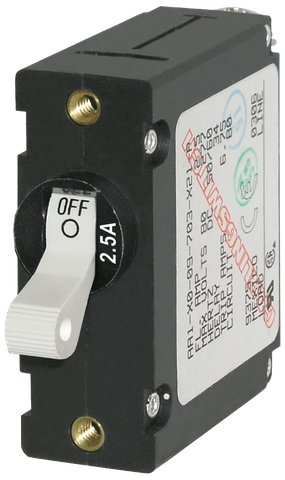

Blue Sea 2.5A A-Series Single Pole Toggle Circuit Breaker - White
Blue Sea 2.5A A-Series Single Pole Toggle Circuit Breaker - White
Magnetic Hydraulic Mechanism with Trip-Free Safety for Marine & RV
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Combined Circuit Switching and Overcurrent Protection for Marine Panels
The Blue Sea A-Series 2.5A Single-Pole Toggle Circuit Breaker delivers industry-standard electrical protection and convenient circuit switching in one compact unit. Engineered specifically for demanding marine, caravan, and off-grid electrical systems, this magnetic hydraulic breaker eliminates the need for separate switches and fuse holders on your distribution panel. By integrating control and overcurrent protection, it simplifies behind-the-panel wiring, reduces connection points that could otherwise fail in high-vibration environments, and saves valuable dashboard space.
The Magnetic Hydraulic Advantage
Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, this A-Series breaker utilises a precision magnetic hydraulic mechanism. Standard thermal units can suffer from nuisance tripping when installed in hot engine rooms, enclosed canopies, or sun-exposed marine consoles, as elevated ambient temperatures prematurely trigger the thermal element. Conversely, a magnetic hydraulic circuit breaker responds purely to current flow through a magnetic coil and a damped hydraulic core. This ensures the 2.5A rating remains consistent and reliable across a wide temperature spectrum, preventing false trips while providing fast, accurate interruption during genuine overload or short-circuit events.
Engineered for Safety: Trip-Free Design
Electrical safety in mobile and marine applications requires fail-safe components. This unit features a mechanical trip-free design, meaning the internal contacts cannot be manually held in the closed (ON) position when a fault current is present. Even if an operator attempts to hold the white toggle actuator up during an active short circuit or overload, the internal mechanism will override the lever and trip open. This critical safety feature protects sensitive 2.5A electronics, prevents wire insulation meltdowns, and significantly reduces the risk of electrical fires aboard vessels or recreational vehicles.
Key Features and Benefits
- Dual-Function Design: Combines manual ON/OFF circuit switching with automatic overcurrent protection in a single device.
- Magnetic Hydraulic Operation: Delivers temperature-stable trip performance, unaffected by high ambient heat in enclosed electrical cabinets.
- Trip-Free Safety Mechanism: Cannot be forced to stay ON during an active electrical fault, protecting wiring and connected equipment.
- Clear Visual Indicators: Features an ergonomic white toggle actuator with a distinct OFF position indicator and a front-facing 2.5A amperage stamp for rapid panel identification.
- Robust Panel Mounting: Built with corrosion-resistant threaded brass inserts on the front face for secure, vibration-resistant installation into Blue Sea Systems panels or custom switchboards.
Ideal Applications for 2.5A Protection
A 2.5A circuit breaker is specifically suited for low-current, sensitive electronic circuits where standard higher-amperage fuses would fail to trip before damage occurs. It is an ideal choice for protecting:
- Marine navigation instruments, chartplotters, and NMEA 2000 network power drops
- Low-draw LED cabin lighting, anchor lights, and instrument backlighting circuits
- Bilge alarm sensors, gas detectors, and automated monitoring relays
- Telemetry systems, router power supplies, and communication radios in RVs and 4WD canopies
Upgrade Your Electrical Distribution Panel
Ensure your low-amperage circuits are safeguarded against faults with professional-grade componentry. Add the Blue Sea A-Series 2.5A Toggle Circuit Breaker to your custom switchboard or marine panel assembly today for dependable, long-term electrical protection.
SKU: BS-7197B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7197B |
| Model #: | BS-7197B |
| MPN: | BS-7197B |
| Package weight: | 0.54 kg |
| Package length: | 0.11 m |
| Package width: | 0.09 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
