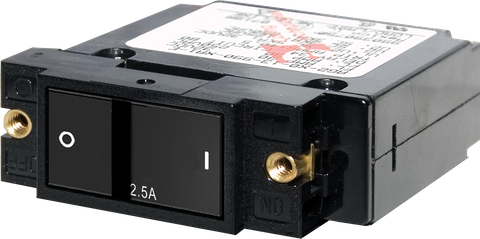

Blue Sea 2.5A A-Series Single-Pole Flat Rocker Circuit Breaker
Blue Sea 2.5A A-Series Single-Pole Flat Rocker Circuit Breaker
Magnetic Hydraulic Trip-Free ON/OFF Switch with Flush Actuator
Regular price
$40.16
Availability:
In Stock at Blue Sea Warehouse
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic Hydraulic Switching and Circuit Protection
Precision 2.5A Overcurrent Protection for Marine, Caravan, and Off-Grid Panels
The Blue Sea A-Series 2.5A Single-Pole Flat Rocker Circuit Breaker offers an integrated solution that combines manual ON/OFF circuit switching with precise overcurrent protection in one compact unit. Engineered for demanding electrical environments, this unit eliminates the need to wire separate switches and fuse holders, streamlining your distribution panel layout and reducing potential points of failure.
With its low-profile 2.5A rating, this breaker is specifically suited for protecting low-draw, sensitive electronics such as navigation instruments, telemetry modules, tank monitors, LED status lighting, and relay control circuits in marine vessels, caravans, and specialised industrial vehicles.
Why Choose Magnetic Hydraulic Technology?
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, this Blue Sea A-Series breaker utilises an internal magnetic hydraulic mechanism. Standard thermal devices can suffer from nuisance tripping in hot engine bays or enclosed electrical cabinets, or fail to trip promptly in freezing conditions. The magnetic hydraulic operation senses only the actual current flow, ensuring consistent, reliable tripping thresholds regardless of ambient temperature fluctuations.
Furthermore, the integrated trip-free design is a critical safety feature for high-compliance electrical systems. In the event of a dangerous fault or short circuit, the internal mechanism will trip open and cannot be manually held in the ON position. This prevents operators from accidentally overriding the safety mechanism and causing thermal damage to wiring harnesses or sensitive downstream equipment.
Key Features and Benefits
- Dual-Function Design: Combines dependable ON/OFF switching and precise 2.5A overcurrent protection into a single panel-mounted device.
- Magnetic Hydraulic Operation: Delivers accurate, temperature-independent trip performance across varied Australian climates.
- Flush Flat Rocker Actuator: Sits flush in the ON position to prevent accidental switching in tight walkways or rough seas, with clear I/O markings and colour visibility when in the OFF state.
- Trip-Free Safety Mechanism: Ensures the circuit breaker will trip during a fault current condition even if the actuator is physically held in the ON position.
- Secure Panel Mounting: Features integrated brass threaded inserts for durable, vibration-resistant attachment to custom switch panels and distribution boards.
Ergonomic Design Built for Harsh Environments
In mobile and marine applications, accidental deactivation of critical circuits is a common hazard. The A-Series flat rocker actuator is engineered to sit completely flush with the bezel when switched ON. This low-profile geometry minimises the risk of snags or unintended bumps turning off vital instrumentation. When switched OFF or tripped, the angled actuator exposes its contrasting colour portion, providing immediate visual confirmation of the circuit status at a glance.
Installation is straightforward and secure thanks to the integrated brass threaded mounting inserts built directly into the black housing. This robust construction resists stripping and loosening under the constant vibration typical of 4WD corrugations and marine wave impacts, outperforming standard snap-in switches.
Ideal Applications
- Marine helm stations and main AC/DC power distribution panels
- Caravan, camper trailer, and motorhome 12V and 24V control boards
- Protection for sensitive navigation, GPS, and communication receivers
- Low-current monitoring systems, bilge alarm circuits, and sensor arrays
- Specialised emergency, commercial, and off-grid industrial equipment
Upgrade Your Electrical Panel Protection
Equip your vessel or off-grid vehicle with professional-grade circuit management. Add the Blue Sea A-Series 2.5A Flat Rocker Circuit Breaker to your build today for reliable, temperature-stable protection on your next installation.
SKU: BS-7399B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| Actuator | Flat rocker |
| Switching function | ON/OFF |
| Operation | Magnetic hydraulic |
| Trip-free design | Cannot be held ON during a fault current condition |
| SKU: | BS-7399B |
| Model #: | BS-7399B |
| MPN: | BS-7399B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 0.12 kg |
| Package length: | 0.09 m |
| Package width: | 0.05 m |
| Package height: | 0.08 m |
