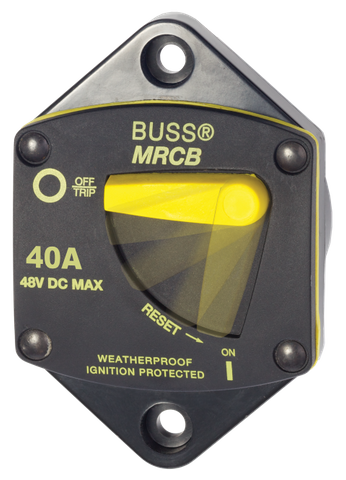

Blue Sea 187-Series Panel Mount Thermal Circuit Breaker
Blue Sea 187-Series Panel Mount Thermal Circuit Breaker
40A 48V DC Max | SAE J1171 Ignition Protected | 5/16" (M8) Studs
Regular price
$180.18
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty 40A Switching and Overcurrent Protection for Marine and Off-Grid DC Systems
The Blue Sea Systems 187 Series (BS-7038B) is a robust, panel-mount 40A thermal circuit breaker engineered to deliver reliable overcurrent protection and manual circuit switching in a single, compact unit. Designed specifically for demanding DC electrical environments, this unit is rated for systems up to 48V DC maximum operating voltage, making it suitable for 12V, 24V, and 48V battery banks across marine vessels, caravans, 4WDs, and off-grid solar installations.
By integrating both switching and protection into one device, the 187 Series simplifies wiring layouts, reduces potential failure points, and saves valuable space on custom distribution panels. Unlike standard fuses that require replacement components after a fault event, this resettable DC circuit breaker allows for immediate system restoration once the underlying electrical issue is resolved.
SAE J1171 Ignition Protection and Trip-Free Safety
Safety in enclosed battery boxes and engine bays is critical. The BS-7038B meets strict SAE J1171 ignition protection requirements, meaning it is engineered to prevent internal sparks from igniting surrounding flammable gases. This makes it safe for installation aboard petrol-powered boats and within ventilated battery compartments.
To protect expensive cabling and downstream appliances from severe thermal damage, the breaker incorporates a mechanical trip-free design. In the event of a sustained overcurrent or short-circuit fault, the internal mechanism will trip open even if the actuator lever is physically held in the ON position. This mitigates the risk of operators accidentally overriding vital circuit protection during an active fault.
Engineered for Heavy-Gauge Cabling and Clean Panel Integration
Inferior circuit breakers often suffer from undersized terminals that create high-resistance hot spots when paired with large battery cables. The Blue Sea 187 Series addresses this with heavy-duty 5/16" (Approx. M8) terminal studs that support high-torque connections, ensuring minimal voltage drop and secure termination. Ample clearance is provided around the studs to accommodate heavy-gauge wire lugs without straining the housing.
From an installation perspective, the two-hole panel-mount configuration features recessed mounting holes for a clean, flush finish on dashboards or main distribution boards. The high-visibility yellow manual reset lever clearly indicates the current trip status at a glance and can be mounted vertically or horizontally to suit your specific panel layout.
Key Features and Benefits
- Dual-Function Design: Combines manual circuit switching and 40A thermal overcurrent protection into one integrated device.
- Wide Voltage Compatibility: Rated up to 48V DC maximum, supporting standard 12V, 24V, and 48V DC power systems.
- SAE J1171 Ignition Protected: Safe for installation in marine engine compartments and spaces aboard petrol-powered vessels.
- Trip-Free Mechanism: Cannot be manually held closed during an active fault-current condition, protecting wiring from thermal runaway.
- Heavy-Duty Terminals: Equipped with 5/16" (Approx. M8) studs with generous clearance to accept large-gauge cable lugs and high-torque fastening.
- Clear Status Indication: Large, high-visibility lever provides immediate visual confirmation of circuit status and allows easy manual tripping.
Application Considerations and Limitations
The Blue Sea 40A thermal breaker is well-suited for protecting main DC feeds, sub-panels, windlasses, stereo amplifiers, and high-draw auxiliary circuits in boats, camper trailers, and service vehicles. However, please note a critical operational exclusion: do not use this breaker as a regular manual switch where high inrush currents are expected, as repeated switching under heavy inductive or capacitive startup loads can prematurely wear the internal contacts.
Upgrade Your DC Circuit Protection
Ensure your marine, RV, or off-grid electrical system is protected against overcurrent faults with professional-grade hardware. Add the Blue Sea 187 Series 40A Panel-Mount Circuit Breaker to your setup today for dependable, resettable circuit control.
SKU: BS-7038B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Thermal circuit breaker |
| Mounting / form factor | Panel mount |
| Ignition Protected | Yes |
| SKU: | BS-7038B |
| Model #: | BS-7038B |
| MPN: | BS-7038B |
| Package weight: | 0.42 kg |
| Package length: | 0.09 m |
| Package width: | 0.09 m |
| Package height: | 0.1 m |
