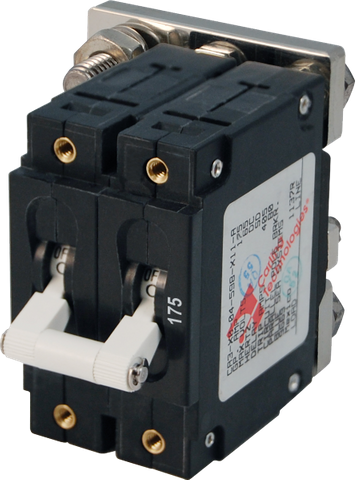

Blue Sea 175A C-Series Double-Pole Toggle Circuit Breaker
Blue Sea 175A C-Series Double-Pole Toggle Circuit Breaker
Linked White Handles, Rear Terminal Studs & Brass Mounting Inserts
Regular price
$256.37
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Switching and Overcurrent Protection for High-Amperage Systems
Managing high-current electrical loads in marine, caravan, and off-grid power architectures requires robust circuit protection that does not compromise under pressure. The Blue Sea C-Series 175A Double-Pole Toggle Circuit Breaker (BS-7268B) combines heavy-duty switching and precision overcurrent protection into a single, reliable device. Designed for demanding environments, this breaker protects expensive cabling and critical appliances from destructive short circuits and sustained overloads.
Unlike standard thermal breakers that can suffer from nuisance tripping or high voltage drop, the Blue Sea Systems C-Series utilises hydraulic-magnetic technology. This ensures the trip curve remains stable regardless of ambient temperature fluctuations, making it exceptionally well-suited for enclosed engine bays, battery compartments, and sun-exposed electrical cabinets across Australia.
Engineered for Simultaneous Dual-Line Isolation
The double-pole configuration features mechanically linked white toggle handles. When a fault occurs on either line, or when the breaker is manually switched off, both poles disconnect simultaneously. This makes it an ideal main disconnect or branch circuit breaker for systems where isolating both positive and negative DC lines—or multiple AC lines—is required for safety and compliance.
Additionally, the internal mechanism is "trip-free," meaning the circuit breaker cannot be manually held in the closed position while a fault current is present. This critical safety feature reduces the risk of electrical fires and equipment damage during troubleshooting.
Key Features and Benefits
- Linked Double-Pole Operation: White linked toggle handles ensure simultaneous disconnection of both poles during manual switching or an overcurrent fault.
- Combines Switching and Protection: Eliminates the need for a separate isolation switch and fuse holder, simplifying wiring layouts and saving valuable panel space.
- Heavy-Duty Rear Terminals: Large rear-mounted terminal studs with supplied hardware accommodate heavy-gauge battery and inverter cables for low-resistance connections.
- Durable Panel Mounting: Integrated threaded brass mounting inserts allow for secure, vibration-resistant front-panel installation in mobile and marine applications.
- Clear Visual Identification: Features a high-visibility 175A rating on the front toggle and a comprehensive side-mounted technical data label for straightforward system inspection.
- Trip-Free Design: Internal contacts will trip open during an overcurrent event even if the toggle actuator is physically held in the ON position.
Solving Common High-Current Wiring Challenges
In high-amperage 12V, 24V, and 48V DC systems, poor connections at the fuse block often lead to heat build-up, melted plastics, and system failure. By utilising robust rear-mounted stud terminals and precision-machined brass mounting inserts, the BS-7268B ensures optimal clamping force for large cable lugs. This minimises contact resistance and thermal stress during continuous high-load operations, such as running large inverters, bow thrusters, winches, or high-output charging systems.
Ideal Applications
- Main battery bank isolation and protection in marine vessels and yachts
- Overcurrent protection for high-wattage inverters and inverter/chargers in caravans, RVs, and motorhomes
- Simultaneous positive and negative line disconnection in isolated ground DC systems
- Heavy-duty off-grid solar and industrial power distribution panels
Upgrade Your Circuit Protection
Ensure your high-current electrical system is protected against overloads and short circuits with industry-standard reliability. Integrate the Blue Sea C-Series 175A Double-Pole Circuit Breaker into your power distribution panel for dependable switching and circuit safety.
SKU: BS-7268B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7268B |
| Model #: | BS-7268B |
| MPN: | BS-7268B |
| Package weight: | 0.42 kg |
| Package length: | 0.15 m |
| Package width: | 0.11 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
