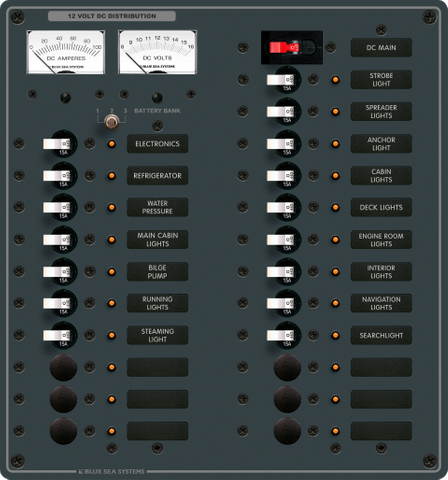

Blue Sea 15A Main + 22-Position DC Distribution Panel with Volt/Ammeter
Blue Sea 15A Main + 22-Position DC Distribution Panel with Volt/Ammeter
Pre-Wired Positive, Negative & Ground Buses with 3-Bank Meter Toggle
Regular price
$1,971.68
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised DC Power Management and Real-Time System Monitoring
Managing complex electrical systems in marine vessels, motorhomes, and custom off-grid setups requires reliable circuit protection and organised power distribution. The Blue Sea Systems 22-Position DC Distribution Panel delivers a professional, centralised command centre for high-circuit-count installations. Featuring a primary master breaker alongside 22 individual branch circuit positions, this unit allows system builders to consolidate loads into a single, easily accessible location while maintaining strict electrical safety standards.
Unlike unbranded alternatives that require hours of tedious rear-panel link wiring, this distribution board arrives fully pre-wired from the factory. All positive, negative, and grounding buses are pre-installed, significantly reducing installation time and minimising the risk of loose connections, voltage drop, or wiring faults behind the dash.
Integrated Analog Metering for Up to Three Battery Banks
Keeping track of system health is straightforward thanks to the built-in analog voltmeter and ammeter. Rather than relying on external displays, operators can view real-time current draw and system voltage directly at the switchboard. A dedicated toggle switch next to the meters allows effortless monitoring across up to three separate battery banks, making it ideal for vessels and vehicles running isolated start, house, and auxiliary battery setups. For heavier commercial or specialized builds, the standard 12V analog meter is also owner-upgradable to 24V using compatible Blue Sea 18V to 32V DC meters (models 8240 or 8243).
Engineered for Low-Light Operation and Marine Durability
Operating a vessel at night or managing power inside a dimly lit caravan canopy demands clear visibility. This DC breaker panel incorporates integrated backlit circuit labels as standard, requiring no separate aftermarket lighting kits. Paired with individual orange ON-indicating LEDs across all 22 branch positions, you can verify active loads and identify switches at a glance in pitch-black conditions.
- Factory Pre-Wired Architecture: Supplied with positive, negative, and grounding buses fully installed to streamline fit-out and improve connection reliability.
- Multi-Bank Voltage Monitoring: Integrated toggle switch enables voltage checks across up to three independent battery banks via the analog voltmeter.
- Real-Time Load Tracking: Dedicated analog ammeter displays total system current draw to help prevent overload events.
- Low-Light Visibility: Backlit circuit label positions come pre-installed alongside individual ON-indicator LEDs for every branch circuit.
- 24V System Adaptability: Analog metering can be upgraded by the owner to suit 24V DC electrical architectures using compatible 18V-32V meters.
- Magnetic Hydraulic Breakers: Provides dependable circuit protection and manual switching in a single, robust mechanism.
Ideal Applications for 22-Position DC Switchboards
With 22 dedicated branch circuits and a master disconnect, this panel is purpose-built for expansive DC electrical systems where standard 6-way or 8-way switch panels fall short. It provides the capacity needed for:
- Large cruising yachts, commercial workboats, and offshore fishing vessels managing navigation electronics, bilge pumps, lighting, and cabin appliances.
- Expedition vehicles, fifth-wheelers, and large off-grid caravans with extensive 12V or 24V accessory loads.
- Mobile command centres, service trucks, and custom off-grid cabin power distribution boards.
Upgrade Your Onboard Electrical Control
Eliminate cluttered wiring looms and fragmented switch panels with a unified, marine-grade distribution solution. Configure your onboard power system with the Blue Sea 22-position DC distribution panel today for safer, cleaner, and more intuitive circuit management.
SKU: BS-8380B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | DC distribution panel |
| Maximum current | 15A |
| Number of positions | 22 |
| Meter | Volt/ammeter |
| Buses | Positive, negative and grounding |
| Wiring | Fully pre-wired |
| Meter toggle switch | For mounting up to 3 battery banks |
| Analog meter upgrade | Owner upgradable to 24V with 8240 or 8243 (18–32V DC meters) |
| Circuit labels | Backlit on standard panels; no kit required |
| Indicators | ON indicating LEDs installed in all circuit positions |
| SKU: | BS-8380B |
| Model #: | BS-8380B |
| MPN: | BS-8380B |
| Package weight: | 3.84 kg |
| Package length: | 0.41 m |
| Package width: | 0.28 m |
| Package height: | 0.14 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
