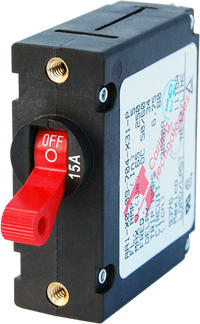

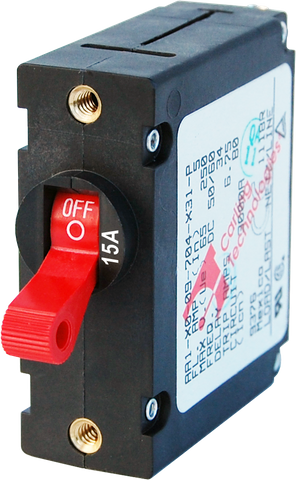

Blue Sea 15A A-Series Single Pole Toggle Circuit Breaker - Red
Blue Sea 15A A-Series Single Pole Toggle Circuit Breaker - Red
Magnetic-Hydraulic Trip-Free Design for Marine & RV Electrical Panels
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic-Hydraulic Switching and Circuit Protection
Precision Electrical Control for Marine, RV, and Off-Grid Panels
The Blue Sea A-Series 15A Single-Pole Toggle Circuit Breaker combines manual switching and overcurrent circuit protection into a single, compact device. Engineered specifically for high-reliability electrical panels, this unit eliminates the need for separate switches and fuse holders, streamlining your wiring architecture while reducing potential points of failure in demanding marine, automotive, and off-grid environments.
Featuring a high-visibility red toggle actuator clearly marked with its 15A rating, this breaker allows for rapid visual identification of critical circuits. Whether used as a dedicated branch circuit switch or for essential emergency equipment, the red actuator provides immediate clarity on crowded electrical switchboards.
Why Choose Magnetic-Hydraulic Technology?
Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, this Blue Sea Systems breaker utilises advanced magnetic-hydraulic operation. Standard thermal units can suffer from nuisance tripping when ambient temperatures rise in enclosed engine bays, canopies, or marine cabins. Magnetic-hydraulic breakers sense only the actual current flowing through the circuit, ensuring the 15A trip point remains stable and accurate regardless of surrounding temperature fluctuations.
Additionally, the internal mechanism incorporates a trip-free design. This vital safety feature ensures that the internal contacts cannot be manually held in the closed (ON) position while a fault-current condition exists, protecting your cabling and downstream electronics from severe overload or short-circuit damage.
- Dual-Function Design: Combines heavy-duty manual circuit switching and precise 15A overcurrent protection in one compact unit.
- Magnetic-Hydraulic Operation: Delivers consistent, temperature-stable trip performance without premature derating in hot environments.
- Trip-Free Safety Mechanism: Internal contacts disconnect during a fault and cannot be forced or held ON until the electrical issue is resolved.
- Durable Phenolic Housing: Robust black casing resists heat, vibration, and moisture in harsh marine and mobile installations.
- Secure Panel Mounting: Integrated threaded brass inserts ensure reliable front-panel installation into Blue Sea Systems distribution panels and custom switchboards.
- High-Visibility Red Toggle: Clearly labelled 15A actuator allows for quick circuit identification and straightforward manual operation.
Engineered for Harsh Environments and Critical Applications
Constructed with a rugged black phenolic housing and precision brass mounting inserts, the A-Series breaker is built to endure constant vibration and coastal conditions. It is the industry standard for upgrading or expanding Blue Sea Systems electrical panels, custom 4WD dual-battery control boards, caravan power distribution hubs, and commercial marine vessels.
By replacing traditional glass or blade fuses with a resettable toggle circuit breaker, system operators can quickly diagnose and restore power without carrying spare consumables. It is ideally suited for protecting 15A branch loads such as bilge pumps, navigation electronics, cabin lighting, diesel heaters, and auxiliary 12V or 24V power sockets.
Upgrade Your Electrical Panel Protection
Integrate the Blue Sea A-Series 15A Single-Pole Toggle Circuit Breaker into your custom switchboard or marine distribution panel today for dependable, temperature-stable circuit protection and effortless switching control.
SKU: BS-7209B
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7209B |
| Model #: | BS-7209B |
| MPN: | BS-7209B |
| Package weight: | 0.54 kg |
| Package length: | 0.12 m |
| Package width: | 0.1 m |
| Package height: | 0.09 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
