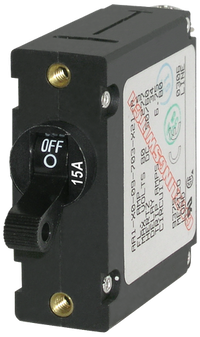

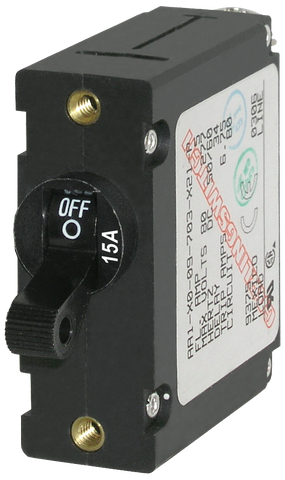

Blue Sea 15A A-Series Single Pole Toggle Circuit Breaker - Black
Blue Sea 15A A-Series Single Pole Toggle Circuit Breaker - Black
Magnetic-Hydraulic Switching & Protection - Trip-Free - ABYC Compliant
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic-Hydraulic Circuit Protection and Switching
The Blue Sea A-Series 15A Single-Pole Toggle Circuit Breaker delivers dependable electrical protection and manual switching in a single, compact panel-mount unit. Engineered as the industry standard for Blue Sea Systems electrical panels, this device eliminates the need to wire separate switches and fuse blocks, simplifying installation and conserving valuable dashboard space in marine, RV, and off-grid power architectures.
Why Choose a Magnetic-Hydraulic Circuit Breaker?
Unlike standard thermal circuit breakers that rely on a heat-sensitive bimetallic strip to trigger a disconnect, a magnetic-hydraulic circuit breaker operates using a solenoid coil and a fluid-damped mechanical core. This precision mechanism responds solely to electrical current flow rather than ambient temperature fluctuations.
In high-heat environments such as boat engine rooms, enclosed caravan battery compartments, or vehicle canopies under the Australian sun, standard thermal breakers can suffer from premature nuisance tripping. Conversely, in freezing conditions, they may delay tripping during an actual overload. The Blue Sea A-Series maintains its exact 15A trip profile regardless of ambient environmental temperatures, providing consistent and predictable overcurrent protection.
Trip-Free Safety Mechanism and Global Compliance
Safety is central to the A-Series design. This unit incorporates a trip-free mechanism, meaning the internal contacts cannot be manually held closed while a fault current is present. Even if the toggle actuator is physically held or jammed in the ON position during a short circuit or severe overload, the internal mechanism will disengage to isolate the downstream wiring, significantly reducing the risk of cable overheating and electrical fires.
- Dual-Function Design: Combines manual circuit switching and 15A overcurrent protection into one compact footprint.
- Magnetic-Hydraulic Operation: Delivers temperature-stable trip performance without nuisance tripping in hot enclosures.
- Trip-Free Mechanism: Ensures internal contacts open during fault conditions, even if the toggle is held in the ON position.
- Durable Panel Hardware: Features threaded brass mounting inserts for secure front-panel installation and sturdy rear screw terminals for reliable wire termination.
- High-Visibility Actuator: Black single-pole toggle includes clear 'OFF' and '15A' markings for immediate visual status confirmation.
- Extensive Regulatory Credentials: Meets ABYC standards, is UL 1077 recognised, TUV certified, CE marked for Europe, and CSA certified for Canada.
Engineered for Harsh Marine and Mobile Environments
Constructed with corrosion-resistant materials, including recessed brass mounting inserts and robust rear screw terminals, the BS-7208B is built to withstand vibration and moisture in demanding applications. It is suited for protecting 15A branch circuits such as navigation electronics, cabin lighting arrays, bilge pumps, communication equipment, and 12V or 24V auxiliary appliances.
Whether you are building a custom marine switch panel, upgrading a 4WD dual-battery canopy setup, or fitting out an off-grid camper trailer, this breaker provides professional-grade circuit management.
Upgrade Your Electrical Distribution Panel
Streamline your wiring and protect critical electronics with temperature-stable overcurrent protection. Add the Blue Sea A-Series 15A Single-Pole Toggle Circuit Breaker to your system configuration today for reliable, standards-compliant power control.
SKU: BS-7208B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7208B |
| Model #: | BS-7208B |
| MPN: | BS-7208B |
| Package weight: | 0.264 kg |
| Package length: | 0.09 m |
| Package width: | 0.05 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
