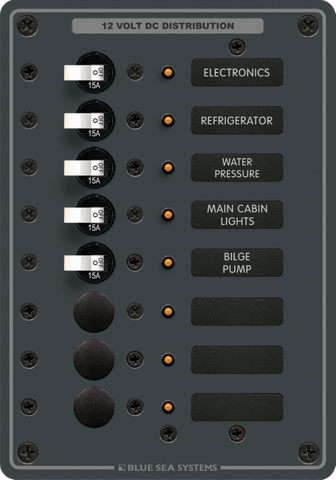

Blue Sea 15A 8-Position DC Distribution Panel
Blue Sea 15A 8-Position DC Distribution Panel
Pre-Wired Positive, Negative & Grounding Buses with Backlit Labels
Regular price
$516.86
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised DC Circuit Management and Protection
Streamlined Electrical Architecture for Marine, RV, and Off-Grid Systems
Organising complex low-voltage electrical systems requires a reliable, centralised distribution point. The Blue Sea Systems 8-Position DC Distribution Panel is engineered to simplify wiring installations while delivering dependable circuit protection and switching. By combining switching and overcurrent protection into a single cohesive unit, this panel eliminates the disorganized wiring harnesses and Exposed terminal blocks often found in basic setups.
Designed for demanding mobile and marine environments, this traditional metal panel arrives fully pre-wired with positive, negative, and grounding buses already installed. This factory-configured architecture significantly reduces installation time, minimises the risk of wiring errors during fit-out, and ensures a clean, professional finish behind the dash or bulkhead.
Clear Status Indication in Low-Light Environments
Operating a vessel, caravan, or off-grid cabin at night requires intuitive and visible controls. This distribution panel features integrated backlit circuit label positions as standard, requiring no additional custom kits or secondary wiring to illuminate your system layout. Paired with amber ON-indicating LEDs in every circuit position, operators can instantly verify which loads are active at a glance, preventing accidental battery drain from forgotten appliances or lighting circuits.
- Fully Pre-Wired Busbars: Includes factory-installed positive, negative, and grounding buses for rapid, consolidated termination.
- Integrated Circuit Protection: Uses white toggle magnetic circuit breakers (up to 15A rating) that serve as both the switch and overcurrent protection device.
- Backlit Label Positions: Standard illumination across all label slots ensures effortless identification in dark cabins or helm stations without extra upgrade kits.
- Active Circuit Indicators: Installed ON-indicating LEDs provide immediate visual confirmation of live circuits.
- Expandable Layout: Supplied with active 15A circuit breakers and plugged expansion slots, allowing you to customise and add extra breakers as your power system grows.
Why Upgrade to a Pre-Wired Blue Sea Panel?
Building a custom switch panel from individual unbranded components often leads to excessive voltage drop, loose connections due to road or wave vibration, and difficult fault-finding. The Blue Sea BS-8023B solves these challenges by utilising marine-grade components designed to withstand harsh Australian coastal and outback conditions. The consolidated busbar design reduces the number of individual crimp connections required, directly lowering the risk of high-resistance hot spots and electrical failures.
Versatile Applications and System Compatibility
While widely recognised as an industry standard for marine 12V switch panels on yachts, powerboats, and commercial vessels, the robust construction of this 8-position panel makes it equally effective for land-based mobile applications. It is an ideal control centre for:
- Marine Vessels: Controlling navigation lights, bilge pumps, cabin lighting, and marine electronics.
- Caravans and Motorhomes: Managing water pumps, diesel heaters, 12V fans, and auxiliary lighting circuits.
- 4WD Canopy and Service Body Fit-Outs: Centralising work lights, compressors, and inverter remote circuits in a durable enclosure.
- Off-Grid Cabins and Tiny Homes: Providing a safe, accessible DC breaker box for low-voltage domestic appliances.
Note on System Voltage and Metering: This standard distribution panel does not include an analog or digital meter. For systems integrating compatible Blue Sea analog meter configurations, panels can be owner-upgraded for 24V DC operation using appropriate 18–32V DC meters (such as the 8240 or 8243 series).
Upgrade Your DC Electrical Control
Ensure your auxiliary power system is safe, organised, and easy to operate in any lighting condition. Add the Blue Sea 8-Position DC Distribution Panel to your build today for a professional, marine-grade wiring installation.
SKU: BS-8023B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC distribution panel |
| Number of positions | 8 |
| Max current | 15A |
| Buses | Positive, negative and grounding buses |
| Wiring | Fully pre-wired |
| Circuit indicators | ON-indicating LEDs installed in all circuit positions |
| Circuit labels | All circuit label positions are backlit on standard panels; no kit required |
| Panels with meters | Include a toggle switch for mounting up to 3 battery banks |
| Panels with analog meters | Owner-upgradable to 24V using 8240 or 8243 (18–32V DC meters) |
| SKU: | BS-8023B |
| Model #: | BS-8023B |
| MPN: | BS-8023B |
| Package weight: | 0.9 kg |
| Package length: | 0.24 m |
| Package width: | 0.17 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
