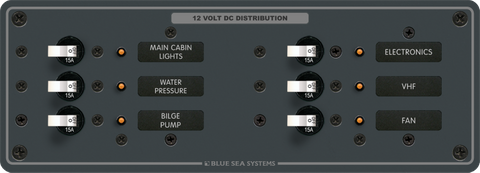

Blue Sea 15A 6 Position DC Distribution Panel
Blue Sea 15A 6 Position DC Distribution Panel
Pre-Wired 12V Switch Panel with Buses, Backlit Labels & Indicator LEDs
Regular price
$611.59
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V DC Circuit Management and Protection
Managing multiple electrical circuits in a mobile or marine environment requires a reliable, organised approach to prevent wiring hazards and simplify system diagnostics. The Blue Sea 15A 6 Position DC Distribution Panel offers a professional-grade solution for consolidating six separate 12V DC loads into a single, cohesive hub. Designed for demanding marine, caravan, and off-grid applications, this panel replaces messy, ad-hoc fuse blocks and loose wiring with a streamlined, flush-mount assembly that both switches and protects your vital electrical equipment.
Unlike standard switch panels that require external fuse blocks and complex wiring looms, this distribution panel arrives fully pre-wired from the factory. The internal architecture includes pre-installed positive, negative, and grounding buses. This integrated design significantly reduces installation time, minimises the risk of loose connections caused by vibration, and ensures a clean, professional layout behind your dash or electrical cabinet.
Integrated Circuit Breakers and Clear Visual Status
At the core of the panel are six integrated 15A magnetic circuit breakers. These toggle-style switches serve a dual purpose: they act as convenient manual on/off switches for your appliances while providing dependable 15A overcurrent protection. If a fault occurs, the breaker trips to protect your wiring and equipment, and can be easily reset once the issue is resolved without needing to hunt for replacement fuses in the dark.
To further enhance operational safety and convenience in low-light environments, the panel features built-in illumination. Each of the six circuit positions is equipped with an individual orange "ON" indicator LED, giving you immediate visual confirmation of which systems are actively drawing power. Additionally, the interchangeable circuit labels come backlit as standard, requiring no extra backlighting kits to read your panel clearly during night navigation or off-grid camping.
- Fully Pre-Wired Assembly: Factory-installed positive, negative, and grounding buses save time and eliminate complex back-panel wiring
- Dual-Purpose Toggle Breakers: Six integrated 15A switches provide both manual circuit control and reliable overcurrent protection
- Built-In Backlit Labels: Standard illuminated circuit labels allow for effortless identification in dark cabins or helm stations without additional kits
- Active Circuit Indicators: Individual orange LEDs at every position clearly show when a circuit is powered on
- Secure Flush Mounting: Countersunk corner screw holes ensure a neat, vibration-resistant installation in boats, RVs, and service vehicles
Application Versatility and System Notes
This traditional metal panel is ideally suited for 12V DC electrical systems in boats, yachts, caravans, camper trailers, and specialized 4WD canopies. It provides a dedicated control point for critical accessories such as bilge pumps, navigation lights, cabin lighting, water pumps, and communication gear.
Please note: While the wider Blue Sea panel series includes variants equipped with analogue meters (which feature a toggle switch for monitoring up to three battery banks and can be owner-upgraded to 24V using 18V to 32V DC meters 8240 or 8243), meter equipment is not specified as included with this specific 6-position panel variant.
Upgrade Your DC Electrical System
Eliminate wiring clutter and protect your 12V accessories with a centralised, marine-grade control hub. Add the Blue Sea 15A 6 Position DC Distribution Panel to your setup today for a safer, cleaner, and more reliable electrical installation.
SKU: BS-8096B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | DC distribution panel |
| Number of positions | 6 |
| Max current | 15A |
| Buses | Positive, negative and grounding buses installed |
| Wiring | Fully pre-wired |
| Circuit labels | Backlit on standard panels; no kit required |
| Circuit indicators | “ON” indicator LEDs installed in all circuit positions |
| Meter panel feature | Panels with meters include a toggle switch for mounting up to 3 battery banks |
| Analog meter upgrade | Panels with analog meters are owner-upgradable to 24V with 8240 or 8243 (18–32V DC meters) |
| SKU: | BS-8096B |
| Model #: | BS-8096B |
| MPN: | BS-8096B |
| Package weight: | 0.78 kg |
| Package length: | 0.24 m |
| Package width: | 0.18 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
